User manual Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596

Operating instructions and pdf manual for use - Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596 User manual, User manual Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596, Behringer, EUROCOM, CL2596, Loudspeaker, Black, CL2596,


User manual for Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596

Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 320 USD
Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596 Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596
Click to enlarge image

We recommend checking out our discussion threads on the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596, which address similar problems with connecting and setting up PA Speakers Behringer.



User manual for the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596

The user manual for the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

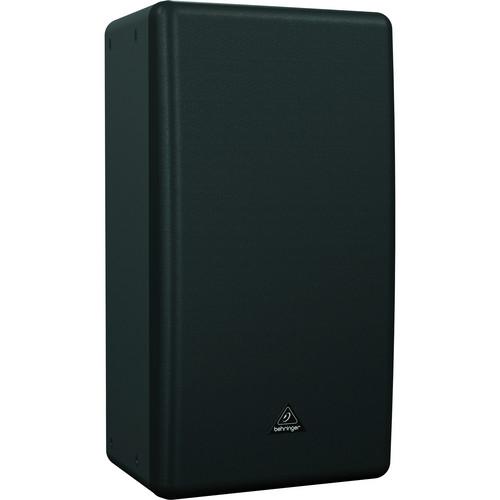

The black EUROCOM CL2596 Loudspeaker from Behringer features a 15" woofer and a 1.35" high-frequency driver. They are designed to provide an even response across the audible spectrum with a continuous sound pressure level (SPL) handling of 119 dB. It can be used in a variety of fixed installation applications in venues such as theaters, auditoriums, houses of worship, themed entertainment venues, sporting venues or in fill and delay systems in large rooms.

The CL2596 has a rotatable waveguide with a 90° by 60° coverage pattern, which allows you to change the speaker orientation from vertical to horizontal. The passive crossover can be bypassed for operation in a bi-amped configuration.
If you own a Behringer pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596:
Specifications
    Speakers 1x 15" (381 mm) woofer
    1x 1.35" (34.29 mm) high frequency driver
    Horn Waveguide 90º H x 60º V HF, rotatable
    Inputs 2x Neutrik NL4 Speakon
    1x 4-position terminal strip
    Frequency Response 37 Hz to 20 kHz (@ -10 dB)
    42 Hz to 18 kHz (+/- 3 dB)
    Crossover Mode: Bypassable
    Frequency: 2 kHz
    Maximum SPL Continuous: 119 dB
    Peak: 125 dB
    Sensitivity 96 dB (1 W @ 1 m)
    Power Handling 200 W RMS @ 40 V
    Low Frequency Driver: 250 W
    High Frequency Driver: 30 W
    Impedance 8 Ω
    Directivity Factor: 8.7 (Q)
    Index: 9.4 dB (DI)
    Dispersion 90º H x 60º V (Nominal)
    Overload Protection Full range power limiting to protect drivers and crossovers
    Enclosure Trapezoidal 15° side angle
    Construction Laminated birch plywood
    Steel grille
    Rigging Points 23 x M10 threaded points
    4 x M8 threaded inserts for OmniMount 60 series
    Dimensions (H x W x D) 32.4 x 18.5 x 16.5" (82.3 x 47.0 x 41.8 cm)
    Weight 67.1 lb (30.5 kg)
    The user manual for the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer pa speakerss, where you can use our link to download the user manual for the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596.

    The user manual lists all of the functions of the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer EUROCOM CL2596 Loudspeaker (Black) CL2596. User manuals are also available on the Behringer website under Pro Audio - Live Sound - PA Speakers.
