User manual for the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP

The user manual for the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

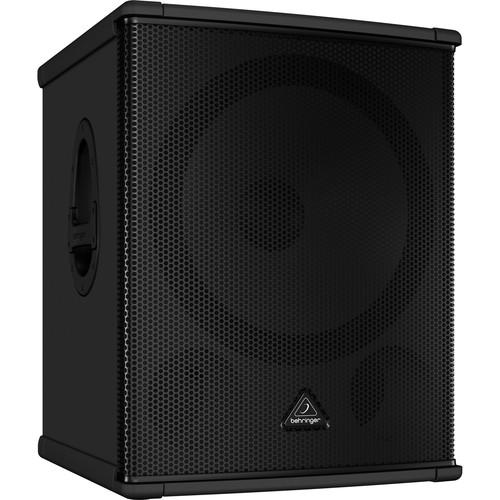

The Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer with 15" Tubosound Speaker provides your PA system with low frequency sound reinforcement by leveraging a 15.0" (38.1 cm) long-excursion TURBOSOUND woofer with 2200W of Class-D amplification to deliver a frequency response of 45 to 150 Hz (±3 dB).

For I/O, the subwoofer features balanced XLR inputs and outputs, as well as balanced XLR Thru jacks for connecting to additional speakers and building more powerful and complex systems. A boost frequency knob targets a boost frequency between 40 and 90 Hz and gives the target frequency a +10 dB boost. The unit also has a high cut dial that provides precise control over the upper corner frequency of the subwoofer's amplifier, without affecting the Thru signals. A level knob controls the input gain and a phase switch allows you to reverse the output phase to compensate for frequency cancellations between the subwoofer and satellite speakers.

The subwoofer includes ergonomic handles for easy transport as well as a pole socket for mounting with commercial spacer poles. A rugged steel grill protects the speaker cone and an internal intelligent limiter ensures maximum sound performance and woofer protection. The unit was conceived and designed in Germany.
If you own a Behringer pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP:
Specifications
    Maximum Output Power 2200 W
    Amplifier Type Class-D
    I/O 2x servo-balanced XLR-3F inputs (A and B)
    2x servo-balanced XLR-3M Thru (A and B)
    2x servo-balanced XLR-3M Output (A and B)
    Sensitivity +4 dBu at 0 dB (center position) for full rated power
    Max Input 10V RMS (+22 dBu)
    Input Impedance 10 kOhms unbalanced
    2 kOhms unbalanced
    High Pass Filter 100 Hz, Butterworth 18 dB slope
    Level Control -∞ to +6 dB
    Boost Frequency 40 to 90 Hz, Q = 1, +10 dB
    Booster Switchable
    High Cut Filter 70 to 150 Hz, Butterworth, 24 dB slope
    Phase 0° or 180° phase reverse switch
    Frequency Range 32 to 200 Hz (-10 dB)
    Frequency Response 45 to 150 Hz (±3 dB)
    Signal to Noise Ratio >100 dB (A-weighted)
    SPL Level 128 dB at 1 m
    Woofer 15.0" (38.1 cm)
    Signal Indicator Signal: yellow
    Limit: red
    Power: amber
    Protection Amplifier: full short circuit, open circuit, thermal protection
    Load protection: turn-on/off muting, DC
    Power Supply USA/Canada
    UK/Australia/Europe
    Korea/China
    Japan
    Power Consumption At 1/8 rated power: 130 W
    Mains Standard IEC receptacle
    Dimensions (H x W x D) 23.8 x 18.3 x 20.9" (605 x 465 x 530 mm)
    Weight 93 lb (42 kg)
    Packaging Info
    Package Weight 99.5 lb
    Box Dimensions (LxWxH) 29.0 x 26.0 x 23.0"
    The user manual for the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer pa speakerss, where you can use our link to download the user manual for the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP.

    The user manual lists all of the functions of the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer EUROLIVE B1500HP Active 2200-Watt PA Subwoofer B1500HP. User manuals are also available on the Behringer website under Pro Audio - Live Sound - PA Speakers.
