User manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D

The user manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

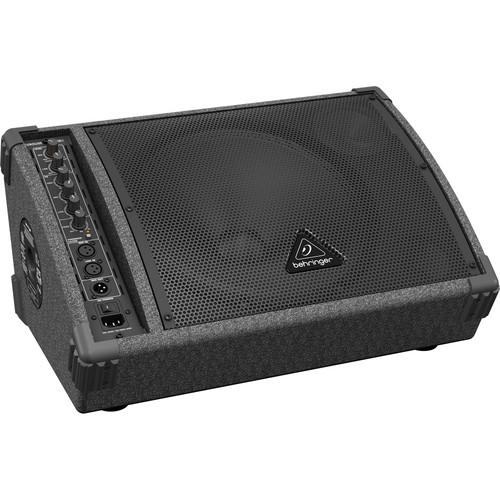

The Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor Speaker System utilizes a 250-Watt Class D amplifier in a true bi-amp configuration to power a single 12" woofer for bass and a high resolution 3" tweeter for highs loaded in a proprietary wide-dispersion horn for live performance and playback applications. The unit includes an adjustable feedback filter as well as an integrated limiter for system control and speaker protection.

For inputs, a built-in 2-channel mixer with individual mic/line inputs and volume controls offers a wide range of connectivity and the dedicated 3-band EQ allows for precise shaping of your sound. An additional line output allows for linking of additional speakers into the system. An internal switch-mode power supply provides superior transient response, low power consumption, and low-noise audio. An integrated 35 mm pole socket allows you to mount the unit on a stand, or it can be placed on the ground and used as a floor monitor. At only 23.6 lb (10.7 kg), the speaker is well suited for travel to and from gigs, on the road, on stage, and in the studio.
If you own a Behringer pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D:
Specifications
    Maximum Output Power 250 W
    Configuration Bi-amping
    Type Class-D
    Overload Protection Dual-controlled limiter
    Crossover Type Active
    Crossover Frequency 2 kHz
    Mic Input 1x XLR connector, balanced
    Line Input 1x XLR connector, balanced
    Sensitivity Mic: -18 dBu to -37 dBu (Level VR from center to max)
    Line: +16 dBu to -4 dBu (Level VR from center to max)
    Impedance Mic: 1 kOhm balanced, 2 kOhm unbalanced
    Line: 10 kilOhm balanced, 20 kOhm unbalanced
    Analog Audio Outputs
    Mix Outputs 1x XLR
    Impedance 100 ohm, unbalanced
    Max Output +22 dBu
    Equalizer
    High Frequency EQ ±15 dB at 12,000 Hz
    Mid Frequency EQ ±15 dB at 2,5000 Hz
    Low Frequency EQ ±15 dB at 80 Hz
    Feedback Filter Frequency: 350 to 6,0000 Hz
    Level Reduction: 15 dB
    Q Factor: 20
    Loudspeaker
    Drivers 12" woofer
    3" tweeter
    Frequency Range 45 to 18,000 Hz
    Indicators Power: Amber LED
    Clip: Red LED
    Feedback Filter: Yellow LED
    Physical
    Enclosure Trapezoidal, wood
    Grille Perforated steel
    Mounting Dual-angle 30 mm pole mount socket
    Power Consumption At 1/8 max power: 35 W
    Mains Standard IEC receptacle
    Dimensions (H x W x D) 9.4 x 19.7 x 11.9" (238 x 500 x 354 mm)
    Weight 23.6 lb (10.7 kg)
    Packaging Info
    Package Weight 30.3 lb
    Box Dimensions (LxWxH) 23.2 x 17.15 x 12.15"
    The user manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer pa speakerss, where you can use our link to download the user manual for the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D.

    The user manual lists all of the functions of the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer EUROLIVE F1220D Bi-Amped 250-Watt Monitor F1220D. User manuals are also available on the Behringer website under Pro Audio - Live Sound - PA Speakers.
