User manual Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D

Operating instructions and pdf manual for use - Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D User manual, User manual Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D, Behringer, EUROLIVE, F1320D, Active, 300W, 12, 2-Way, F1320D,


User manual for Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D

Behringer EUROLIVE F1320D Active 300W 12
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 270 USD
We recommend checking out our discussion threads on the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D, which address similar problems with connecting and setting up PA Speakers Behringer.



User manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D

The user manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

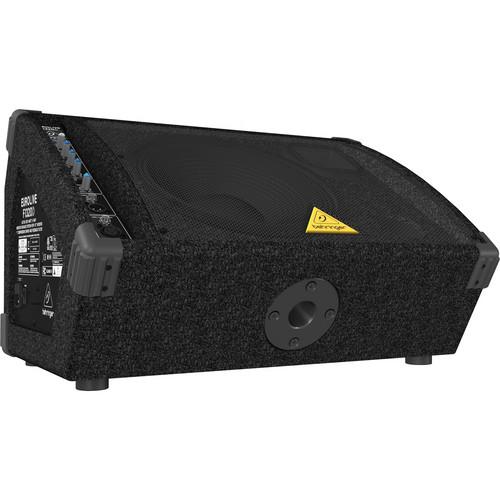

The EUROLIVE F1320D Active 300W 12" 2-Way Monitor Speaker System from Behringer provides high-quality sound with wide frequency bandwidth and high dynamic range. The speaker has a powerful 12" long-excursion woofer and a 1" high-resolution tweeter to provide deep bass and clear treble. The proprietary horn design offers ultra-wide dispersion to reach a wide audience. The speaker has a 300W Class-D amplifier to deliver plenty of power and terrific sonic integrity while keeping weight to a minimum.

The speaker has ultra-low noise mic/line switchable XLR and 1/4" inputs, plus XLR and 1/4" link outputs. There is a volume control with a clip LED, as well as an adjustable feedback filter, integrated limiter, and integrated sound processor for ultimate protection and control of the system. A dedicated 3-band EQ allows you to shape your sound, while the internal switch-mode power supply delivers noise-free audio, excellent transient response, and low power consumption. The speaker has a standard 35mm pole socket for mounting on a stand, ideal for PA use.
If you own a Behringer pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer EUROLIVE F1320D Active 300W 12Download user manual for Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D
(PDF file, 1.79 MB)
Additional parameters of the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D:
Output Power LF: 160W RMS, 225W Peak @ 8 Ohms
HF: 40W EMS, 72W Peak @ 8 Ohms
Frequency Response 60Hz - 16kHz (-10dB)
Maximum Sound Pressure 115dB
Input Sensitivity -50 to 0dBu
Input Impedance 20 kOhms, Balanced
30 kOhms, Unbalanced
EQ Section High: 12kHz ±15dB
Mid: 2.5kHz ±15dB
Low: 80Hz ±15dB
Filters Feedback Filter Frequency: 300Hz - 6kHz
Level Reduction: Max 15dB
Q Factor: 20
Limiter Optical
Connectors 1 x XLR Mic/Line Input
1 x 1/4" Mic/Line Input
1 x XLR Link Output
1 x 1/4" Link Output
1 x IEC Mains AC Power Input
Power Supply Switch Mode
USA/Canada: 120V~, 60Hz (T 4.0 A H 250V)
UK/Australia: 240V~, 50Hz (T 2.0 A H 250V)
Europe: 230V~, 50Hz (T 2.0 A H 250V)
Korea: 220V~, 60Hz (T 2.0 A H 250V)
China: 220V~, 50Hz (T 2.0 A H 250V)
Japan: 100V~, 50/60Hz (T 4.0 A H 250V)
Power Consumption Max 300W
Dimensions (HxWxD) 14.2 x 22.8 x 16" (360 x 580 x 406mm)
Weight 34.5 lbs (15.7kg)
Packaging Info
Package Weight 43.0 lb
Box Dimensions (LxWxH) 26.5 x 19.0 x 18.0"
The user manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer pa speakerss, where you can use our link to download the user manual for the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D.

The user manual lists all of the functions of the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer EUROLIVE F1320D Active 300W 12" 2-Way F1320D. User manuals are also available on the Behringer website under Pro Audio - Live Sound - PA Speakers.
