User manual for the Behringer SD16 - I/O Stage Box with 16 Preamps SD16
The user manual for the Behringer SD16 - I/O Stage Box with 16 Preamps SD16 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixer Accessories.

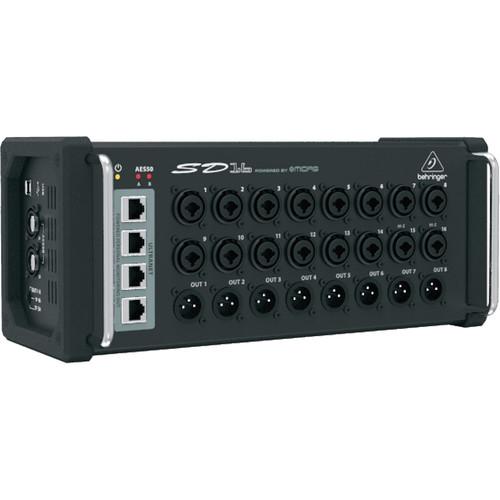

The Behringer SD16 - I/O Stage Box with 16 Preamps is designed to connect the onstage talent to the Front of House (FOH) console. The stagebox provides 16 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs. Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.
An integrated 2-port Ultranet distribution hub is included for direct connection to the company's P16-M personal monitor mixers without the need for any additional hard wire. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears.
A single Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 48 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 16 channels of audio to two of the company's Powerplay P16-M personal monitor mixers.
|
If you own a Behringer digital mixer accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer SD16 - I/O Stage Box with 16 Preamps SD16 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer SD16 - I/O Stage Box with 16 Preamps SD16:
| A/D and D/A Conversion | 24-bit at 44.1/48 kHz, 114 dB dynamic range | | Latency | 1.1 ms | | Preamps | 16 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo) | | Line Outputs | 8 (balanced XLR) | | Networking | AES50 SuperMac Networking, Neutrik etherCON: 2 | | USB | 1x type B port (for system updates) | | Inputs | 48 | | Outputs | 24 | | RJ45 Connector | Ultranet: 4x | | Design | Midas | | THD + N | <0.005%, A-weighted (20 dB gain, 0 dBu out) | | Phantom Power | +48 V, switchable per input | | Equivalent Input Noise | -128 dB, A-weighted, XLR (input shorted) | | CMRR | At 20 dB gain (typical): >60 dB
At 40 dB gain: >65 dB | | Frequency Range | 10 to 22,000 Hz | | Dynamic Range | Analog mic in to analog out (typical): 105 dB
A/D Dynamic range, mic preamp to converter (typical): 109 dB
D/A Dynamic range, converter and output: 108 dB | | Crosstalk | 90 dB at 1 kHz, adjacent channels | | Impedance | Mic input XLR jack, unbalanced/balanced: 5 kOhms
Hi-Z input TRS jack, unbalanced/balanced: 1 MOhm
Line input impedance TRS jack, unbalanced/balanced: 20 kOhms | | Input Level | Non clip maximum level, TRS: +21 dBu | | Output Impedance | 50 ohms, XLR, unbalanced/balanced | | Output Level | +4 dBu, XLR, nominal/maximum | | Residual Noise | XLR: -88 dBu, A-weighted | | Networking | AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional
AES50 SuperMac Cable Length: Up to 328' (100 m)
Ultranet networking at 48 or 44.1 kHz, 16-bit PCM: 1x 16 channels, unidirectional
Ultranet Cable Length: up to 246' (75 m)
Ultranet Phantom power for P16-M personal mixers: 2x powered outputs | | Power Supply | 100 to 240 V (50/60 Hz) | | Power Consumption | 45 W | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Dimensions | 13.1 x 5.9 x 5.5" (333 x 149 x 140 mm) | | Weight | 7.1 lb (3.2 kg) | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 15.1 x 8.4 x 7.8" | |
