User manual for the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600
The user manual for the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

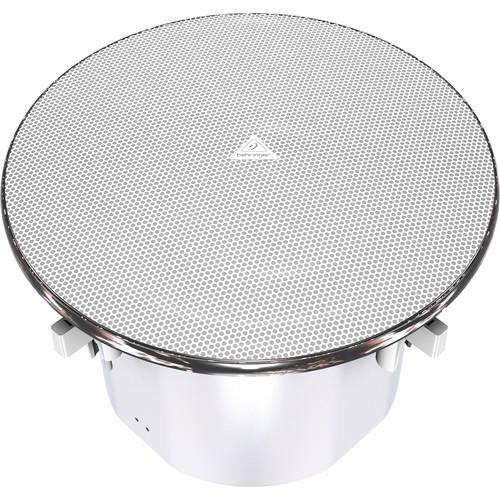

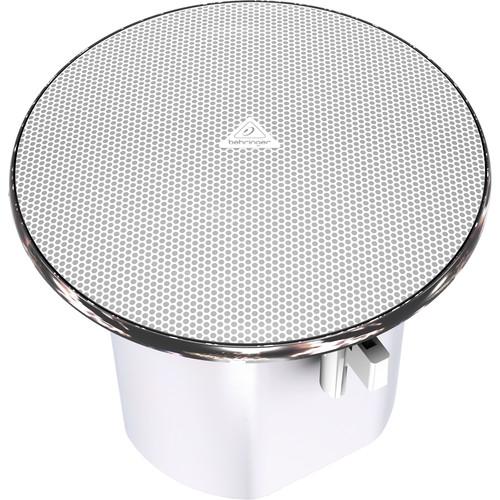

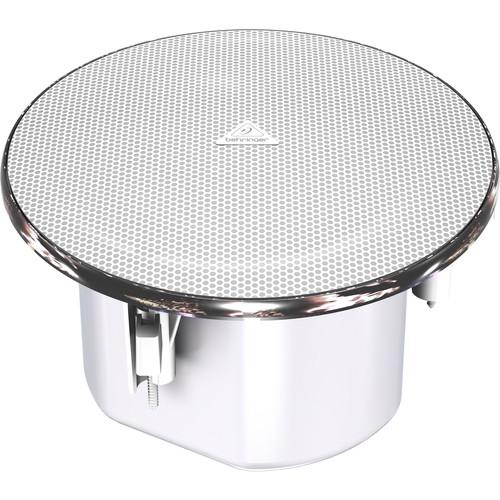

The ST2600 Compact Ceiling Loudspeaker Assembly from Behringer is a full-range 6.5" ceiling-mounted loudspeaker capable of 60W of output power. The ST2600 is designed to emit quality foreground music and AV playback in conference rooms, restaurants, houses of worship, hotels, casinos, and more. A voltage/ohm selector switch facilitates the use of either low or high-impedance amplifiers, and a built-in high-pass filter allows the ST2600 to be deployed in subwoofer-equipped systems without external crossovers.
The high-power 6.5" LF transducer is mounted in a ported reflex enclosure to allow the bass response to go down to 75 Hz in full-range mode. A coaxial, waveguide-mounted 0.75" HF transducer delivers clear, balanced treble response with 150° dispersion, preventing "dead" spots between speaker locations and thereby reducing the number of speakers required for large projects.
|
If you own a Behringer install speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600:
| Frequency Range | 75 Hz - 21 kHz (-10 dB) | | Frequency Response | 85 Hz - 20 kHz (-3 dB) | | Power Handling | Pink Noise: 60 W
Maximum: 120 W | | Sensitivity | 89 dB, 1 W @ 3.3' (1 m), 1/2-space | | Nominal Dispersion | 150° | | Directivity Factor | Q: 8.1 averaged 500 Hz - 4 kHz
DI: 7.7 averaged 500 Hz - 4 kHz | | Crossover Frequency | 2.5 kHz | | Nominal Impedance | 8 ohms | | Maximum SPL | 110 dB @ 3.3' (1 m), low impedance | | Transformer Taps | 60, 30, 15, 7.5 W @ 70 V
60, 30, 15 W @ 100 V | | Low Frequency Driver | 6.5" (16.5 cm) | | High Frequency Driver | 0.75" (1.9 cm) | | Material of Construction | Baffle: Plastic
Back Can: Steel | | Termination | 4-pole Euroblock | | Dimensions | Outer Diameter: 10.3" (26 cm)
Inner Depth: 7.7" (19.6 cm)
Cutout Size: 9.3" (23.5 cm) | | Weight | 7.3 lb (3.3 kg) | |
The user manual for the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600 can be downloaded in .pdf
format if it did not come with your new install speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Behringer users keep a unique electronic library
for Behringer install speakerss,
where you can use our link to download the user manual for the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600.
The user manual lists all of the functions of the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600,
all the basic and advanced features and tells you how to use the install speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Behringer service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Behringer ST2600 Compact Ceiling Loudspeaker Assembly ST2600. User manuals are also
available on the Behringer website under Pro Audio - Installation Sound - Install Speakers.
