User manual Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE

Operating instructions and pdf manual for use - Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE User manual, User manual Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE, Behringer, X32, Core, 40-Channel, 25-Bus, Digital, R


User manual for Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD
We recommend checking out our discussion threads on the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE, which address similar problems with connecting and setting up Digital Mixers Behringer.



User manual for the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE

The user manual for the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

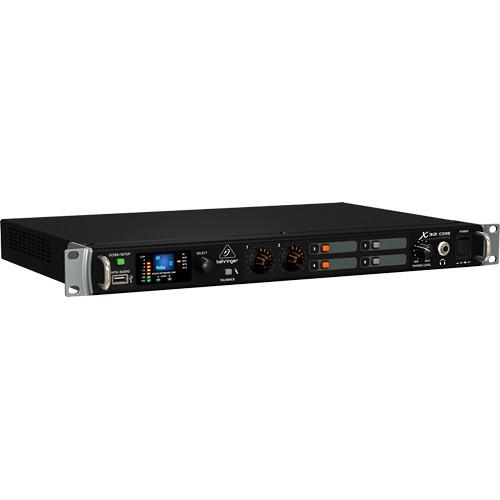

The X32 Core from Behringer is a 40-channel, 25-bus digital mixer that fits in a single rackspace for live and installed sound applications. Its dual AES50 ports feature Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency. The X32 Core also features an expansion port that comes filled with a 32 x 32 channel USB 2.0/FireWire 400 audio interface card, allowing you to record directly to a computer with zero-latency monitoring.

The X32 Core has basic analog connections, including a pair of 1/4" TRS monitoring outputs, a headphone output, and a talkback mic input. It also has a MIDI input and output. In addition to its AES50 ports, the X32 has an Ultranet RJ45 output for connection to P16 personal monitor mixer (sold separately.) A networked remote control connection is available, via Ethernet, for show setups with on-screen software editors.

Internally, the X32's 40-bit floating-point DSP processes its main LCR channels, 6 matrix buses and all 16 mix buses featuring inserts, 6-band parametric EQs and full dynamics processing, plus 8 DCA and 6 mute groups. It features powerful scene management capable of handling and recalling complex productions. A front-panel USB type-A port provides preset storage, system updates, and uncompressed stereo recordings. Additionally, the Virtual FX rack contains 8 true-stereo effects, featuring high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS.
If you own a Behringer digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 COREDownload user manual for Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE
(PDF file, 11.11 MB)
Additional parameters of the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE:
Processing
Number of Channels 32 input channels
8 aux in channels
8 FX return channels
16 buses, 6 matrices
main LRC
Effects Engine Internal:
8 true-stereo
16 mono
Scene File Memory 100 total recall scenes (including preamp and fader)
Signal Processing 40-bit loading point
Conversion Cirrus Logic A/D CS5368, D/A CS4385
24-bit @ 44.1 / 48 kHz
114 dB dynamic range
Latency Timings Local I/O: 0.8 mS (local in > console processing > local out)

Networked I/O: 1.1 mS (stagebox in > console processing > stagebox out)
Total I/O Channels 128 / 144
Connectors
Talkback Mic Input 1 x XLR (no internal mic)
Monitor Outputs 2 x 1/4" TRS balanced
Headphone Output 1 x 1/4" TRS stereo
AES50 Ports 2 x SuperMAC
Expansion Port 1 x 32-channel I/O card, various standards available
P-16 Connector 1 x Ultranet (no power supplied)
MIDI In/Out 1 / 1
Ethernet Port 1 x RJ45 (for remote control)
USB Port 1 x USB 2.0 type A (for audio and data import/export)
Indicator
LCD Screen 128 x 64 LCD with RGB color backlight (Channel Selector Screen)
Power
Power Supply 100 to 240V (50/60 Hz) switch-mode autorange
Power Consumption 120 W
Dimensions & Weight
Dimensions (W x D x H) 19 x 12 x 1.724" (483 x 307 x 44 mm)
Weight 7.9 lb (3.6 kg)
Packaging Info
Package Weight 10.4 lb
Box Dimensions (LxWxH) 21.0 x 15.0 x 4.0"
The user manual for the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer digital mixerss, where you can use our link to download the user manual for the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE.

The user manual lists all of the functions of the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer X32 Core 40-Channel, 25-Bus Digital Rack X-32 CORE. User manuals are also available on the Behringer website under Pro Audio - Recording - Digital Mixers.
