User manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB
The user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

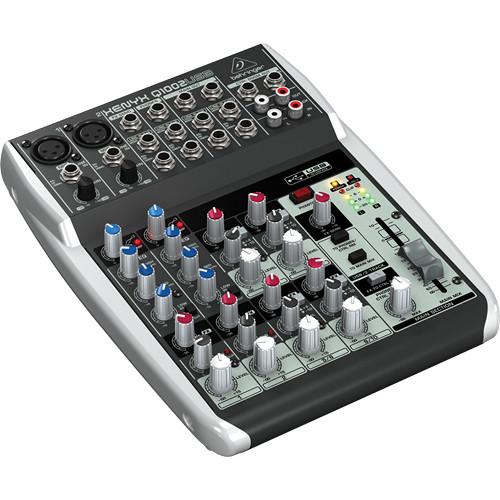

The Behringer XENYX Q1002USB is a 10-input, 2-bus small format mixer that features two XENYX microphone preamps, "one-knob" mono compressors and 3-band EQs. The XENYX Q1002USB also features a built-in USB/audio interface. This mixer can handle a live gig as well as serve as your audio interface for recording.
The high-headroom XENYX mic preamps offer 130dB of dynamic range with a bandwidth that extends from 10Hz to 200kHz. The "one-knob" compressors come standard on both mono channels. Additionally, the mono channels also have 3-band EQ with a low-band at 80Hz, mid at 2.5kHz, high at 12kHz as well as low cut filter.
The built-in stereo USB audio interface allows you to directly connect your Mac or PC. Any signal source connected to the mixer can be recorded straight to your hard drive. Additionally, with purchase, Behringer's website provides free downloads of Audacity, Podifier, Juice, Podnova and Golden Ear. All of this software collectively includes more than 100 virtual instruments and 50 FX plug-ins; turning your computer into a complete home-based or mobile recording studio.
|
If you own a Behringer analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB:
| Total # Of Inputs | 10 | | Channels | 2 mono
4 stereo | | USB Audio | Type B connector
2 channels in / 2 channels out
48 kHz sample rate | | Busses | Stereo mix buss, mono FX buss | | Type | XLR connector, balanced, discrete input circuit | | Mic Preamps | 2 x XENYX preamp | | Equivalent Input Noise | -134 dB / -136 dB A-weighted @ 0Ω source resistance
-131 dB / -133 dB A-weighted @ 50Ω source resistance
-129 dB / -131 dB A-weighted @ 150Ω source resistance | | Frequency Response | < 10 Hz to 150 kHz (-1 dB)
< 10 Hz to 200 kHz (-3 dB) | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu @ +10 dB Gain | | Impedance | 1.9kΩ | | Signal-to-Noise Ratio | 110 dB A-weighted (0 dBu In @ +22 dB gain) | | THD + N | 0.005% / 0.004% A-weighted | | Phantom Power Supply | +48V | | Type | 1/4" TRS connector, balanced | | Impedance | 20kΩ, 10kΩ unbalanced | | Gain Range | -10 to +40 dB | | Maximum Input Level | +22 dBu @ 0 dB gain | | Type | Dual 1/4" TRS connectors, balanced | | Impedance | 20kΩ, 10kΩ unbalanced | | Gain Range | -20 to +20 dB | | Maximum Input Level | +22 dBu | | Type | Dual RCA connectors | | Input Impedance | 18kΩ | | Maximum Input Level | +22 dBu | | Output Impedance | 1kΩ | | Maximum Output Level | +22 dBu | | EQ Controls | 3-band EQ on mono channels:
Low: ±15 dB @ 80 Hz
Mid: ±15 dB @ 2.5 kHz
High: ±15 dB @ 12 kHz | | Aux Sends | 1/4" TRS connector, balanced
Impedance: 120Ω
Maximum output level: +22 dBu | | Aux Returns | 1/4" TRS connector, balanced
Impedance: 20kΩ, 10kΩ unbalanced
Maximum input level: +22 dBu | | Type | 1/4" TRS connector, balanced | | Impedance | 120Ω balanced | | Maximum Output Level | +22 dBu | | Type | 1/4" TRS connector, balanced | | Impedance | approx. 120Ω | | Maximum Output Level | +22 dBu | | Type | 1/4" TRS stereo connector, unbalanced | | Maximum Output Level | +21 dBu / 150Ω (+25 dBm) | | Compressor | Independent compressor on each mono channel | | Metering | 4-LED per side | | Faders | 1 x 60 mm master fader | | Noise | Main mix @ -∞, channel fader @ -∞
-106 dB / -109 dB A-weighted
Main mix @ 0 dB, channel fader @ -∞
-93 dB / -96 dB A-weighted
Main mix @ 0 dB, channel fader @ 0 dB
-84 dB / -87 dB A-weighted | | Power Consumption | 13W | | Dimensions (W x D x H) | 7.7 x 9.8 x 2.0" (195 x 248 x 50 mm) | | Weight | 2.4 lb (1.1 kg) | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 4.3" | |
The user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB can be downloaded in .pdf
format if it did not come with your new analog recording mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Behringer users keep a unique electronic library
for Behringer analog recording mixerss,
where you can use our link to download the user manual for the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB.
The user manual lists all of the functions of the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB,
all the basic and advanced features and tells you how to use the analog recording mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Behringer service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Behringer XENYX Q1002USB 10-Input, 2-Bus Small Format Q1002USB. User manuals are also
available on the Behringer website under Pro Audio - Recording - Analog Recording Mixers.
