User manual Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000

Operating instructions and pdf manual for use - Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 User manual, User manual Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000, Belden, 2412, Multi-Conductor, Enhanced, Categor


User manual for Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000

Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000
  • Manufacturer: Belden
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Bulk Cable
  • Safety instructions
  • Startup and operation of the bulk cable
  • Tips for setting up your Belden
  • Settings and expert assistance
  • Contact Belden service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD

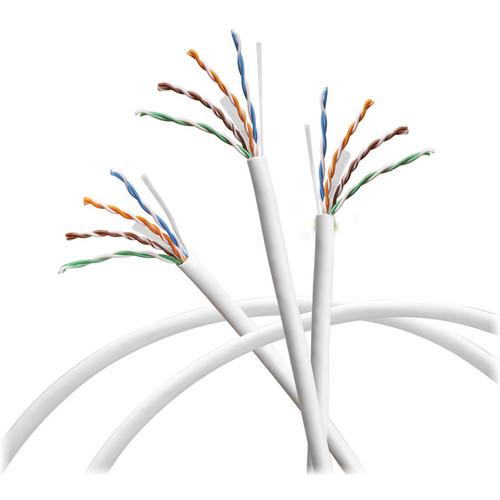

Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000
Click to enlarge image

We recommend checking out our discussion threads on the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000, which address similar problems with connecting and setting up Bulk Cable Belden.



User manual for the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000

The user manual for the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

The yellow 2412 Multi-Conductor - Enhanced Category 6 Nonbonded-Pair Cable from Belden is a 23 AWG Solid Bare Copper Conductor insulated with polyolefin. It is made up of a PVC (Polyvinyl Chloride) outer jacket and separated internally by dielectric tape. It has a ripcord, which is situated under the jacket of the cable. The cable is suitable for applications such as premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM.
If you own a Belden bulk cable and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000:
Pairs 4
AWG 23
Stranding Solid
Conductor Material Bare copper
Compatibility Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM
Insulation Material Polyolefin
Outer Shield Material Unshielded
Outer Jacket Material Polyvinyl Chloride
Outer Jacket Diameter 0.22" (0.56 cm) nominal
Outer Jacket Ripcord Yes
Overall Cabling Separator Material Dielectric tape
Overall Nominal Diameter 0.22" (0.56 cm)
Pair Color Code Chart
  1. White/blue stripe and blue
  2. White/orange stripe and orange
  3. White/green stripe and green
  4. White/brown stripe and brown
NEC/(UL) Specification CMR
CEC/C(UL) Specification CMR
Other Standards ISO/IEC 11801 ed 2.1 (2008) Class E
EU CE Mark Yes
EU Directive 2000/53/EC (ELV) Yes
EU Directive 2002/95/EC (RoHS) Yes
EU RoHS Compliance Date 01/01/2004
EU Directive 2002/96/EC (WEEE) Yes
EU Directive 2003/11/EC (BFR) Yes
CA Prop 65 (CJ for Wire and Cable) Yes
MII Order #39 (China RoHS) Yes
Telecommunications Standards Category 6 - TIA 568.C.2
Other Specification Third party verified to Category 6
Country Patent US 6570095
US 6998537
US 7179999
US 7977575
Flame Test UL1666 Vertical riser
C(UL) Flame Test FT4
CSA Flame Test FT4
Plenum No
Plenum Number 2413
Nominal Mutual Capacitance 17.000 capacitance (pF/ft)
Maximum Capacitance Unbalance 330 (pF/100 m)
Nominal Velocity of Propagation 70 VP (%)
Maximum Delay 537 @ 100 MHz delay (ns/100 m)
Max. Delay Skew 45 delay skew (ns/100 m)
Max Conductor DC Resistance 8.2 DCR @ 68°F (20°C) (Ohm/100 m)
Max. Operating Voltage - UL 300 V RMS
Maximum DCR Unbalanced 5 DCR unbalance @ 68°F (20°C) (%)
Storage Temperature Range 68 to 167°F (-20 to 75°C)
Installation Temperature Range 41 to 122°F (5 to 50°C)
Operating Temperature Range 32 to 167°F (0 to 75°C)
Max Recommended Pulling Tension 40 lb (18.14 kg)
Min. Bend Radius/Minor Axis 1" (2.54 cm)
Weight 24 lbs (10.9 kg)
Packaging Info
Package Weight 27.6 lb
Box Dimensions (LxWxH) 13.9 x 13.0 x 12.0"
The user manual for the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000 can be downloaded in .pdf format if it did not come with your new bulk cable, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Belden users keep a unique electronic library for Belden bulk cables, where you can use our link to download the user manual for the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000.

The user manual lists all of the functions of the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000, all the basic and advanced features and tells you how to use the bulk cable. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Belden service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Belden 2412 Multi-Conductor - Enhanced Category 6 2412004A1000. User manuals are also available on the Belden website under Pro Audio - Installation Sound - Bulk Cable.
