User manual BenQ MW727 WXGA DLP Multimedia Projector MW727

Operating instructions and pdf manual for use - BenQ MW727 WXGA DLP Multimedia Projector MW727 User manual, User manual BenQ MW727 WXGA DLP Multimedia Projector MW727, BenQ, MW727, WXGA, DLP, Multimedia, Projector, MW727, Video


User manual for BenQ MW727 WXGA DLP Multimedia Projector MW727

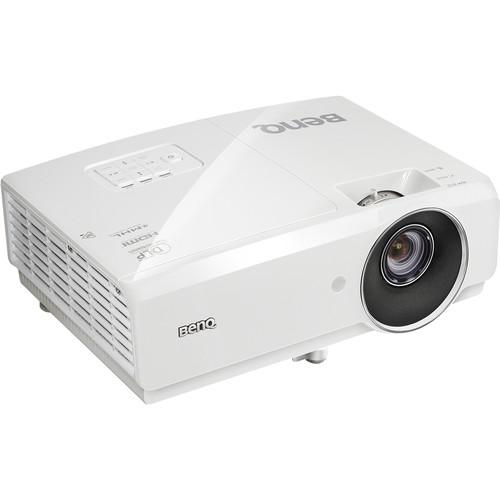

BenQ  MW727 WXGA DLP Multimedia Projector MW727
  • Manufacturer: BenQ
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your BenQ
  • Settings and expert assistance
  • Contact BenQ service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the BenQ MW727 WXGA DLP Multimedia Projector MW727, which address similar problems with connecting and setting up Multimedia Projectors BenQ.



User manual for the BenQ MW727 WXGA DLP Multimedia Projector MW727

The user manual for the BenQ MW727 WXGA DLP Multimedia Projector MW727 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Optimized for boardrooms, classrooms, and other presentation applications, the MW727 WXGA DLP Multimedia Projector from BenQ features a brightness of 4200 lumens and a native resolution of 1280 x 800 (WXGA). To help provide flexibility in terms of placement relative to the screen, it features a 1.3x optical zoom with a 1.2 to 1.57:1 throw ratio. In addition to its native resolution, it can be connected to a range of devices from 480i up to WUXGA (1920 x 1200) thanks to internal scaling.

The projector features two HDMI inputs for computers, HDTV appliances, document cameras, HDMI-enabled mobile devices, and more. One of the HDMI inputs features MHL support, meaning it can power a compatible mobile device through the same connection used by the HDMI signal. For legacy analog devices, there are two VGA inputs, plus a single VGA output so that one of the VGA signals can be passed along to a monitor, second projector, or other secondary display. One composite and one S-video input allow VCRs, DVD players, SD camcorders, and other analog SD equipment to be connected. Finally, there are two analog audio inputs, one on RCA connectors that is paired with the composite/S-video inputs, and one on a 3.5mm connector to accompany the VGA inputs. There is also a 3.5mm mic input so that audio from a presenter's microphone can be piped through the projector's 10 watt speaker. As an alternative to the speaker, there is a 3.5mm audio output for use with amplified speakers or a separate sound system.

An IR remote is included for local control or you can use buttons on the projector itself if it is accessible. There is also RS-232 for operation from automation systems like Crestron or using custom software. A 12V low-voltage control trigger (LVC) ports mean the projector can trigger another A/V appliance, such as having a screen to raise or lower automatically. An Ethernet port enables Web-browser operation with PJLink and other software as well as remote projection across a local network.
If you own a BenQ multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BenQ MW727 WXGA DLP Multimedia Projector MW727 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BenQ  MW727 WXGA DLP Multimedia Projector MW727Download user manual for BenQ MW727 WXGA DLP Multimedia Projector MW727
(PDF file, 0 MB)
Additional parameters of the BenQ MW727 WXGA DLP Multimedia Projector MW727:
Specifications
    Image Display
    Display System 1-Chip DLP
    Native Resolution WXGA - 1280 x 800
    Supported Resolutions VGA - 640 x 480
    WUXGA - 1920 x 1200
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 720 x 480i
    720 x 480p
    720 x 576i
    720 x 576p
    1280 x 720p
    1920 x 1080i
    1920 x 1080p
    Brightness 4200 Lumens
    Offset 123% ± 5%
    Aspect Ratio Native: 16:10
    Supported: 16:9
    Supported: 4:3
    Dynamic Contrast Ratio 11000:1
    Supported 3D Formats Frame Sequential (up to 720p)
    Frame Packing (up to 1080i)
    Side by Side (up to 1080p)
    Top Bottom (up to 1080p)
    Color Range 1.07 Billion
    Scan Horizontal: 15 - 102 kHz
    Vertical: 23 - 120 Hz
    Lens
    Lens F 2.59 - 2.91 (f = 16.87 - 21.87 mm)
    Zoom 1.3x
    Throw Ratio 1.2 - 1.57:1 (77" @ 2 m)
    Projection Size 50 - 300" / 127.00 - 762.00 cm
    Features
    Keystone Correction Vertical: ± 30°
    Horizontal: ± 30°
    Ceiling Mountable Yes
    Built-in Speaker Yes, 10 W (Mono)
    Closed Captioning Yes
    Picture Modes Cinema, Cinema 3D, Dynamic, Presentation, User 1, User 2, sRGB
    Input/Output Connectors
    Inputs/Outputs 2x 15-pin VGA Video (Input)
    1x HDMI Audio/Video (Input)
    1x HDMI with MHL Support Audio/Video (Input)
    1x RCA Composite Video (Input)
    1x S-Video Video (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x RCA Stereo (L/R) Audio (Input)
    1x 1/8" (3.5 mm) Mini Microphone (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x Ethernet LAN
    1x USB 2.0 Type-A Female
    1x Mini-USB Type-B Female
    1x 12 V Trigger Control
    1x RS-232C Control
    2x IR Control
    General
    Watts 280 W
    Life Normal Mode: 3000 Hours
    Eco Mode: 4000 Hours
    SmartEco Lamp Care Mode: 6000 Hours
    Fan Noise Normal Mode: 37 dB
    Eco Mode: 34 dB
    Remote Control Yes
    Security Cable Lock Slot
    Languages Arabic
    Bulgarian
    Croatian
    Czech
    Danish
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hindi
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Romanian
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 370 W
    Eco Mode: 310 W
    Standby Mode (Network on): 6 W
    Standby Mode (Network off): .5 W
    Dimensions (WxHxD) 12.4 x 4.6 x 8.5" / 314.0 x 116.0 x 216.0 mm with feet
    12.4 x 4.0 x 8.5" / 314.0 x 102.0 x 216.0 mm without feet
    Weight 7.28 lb / 3.3 kg
    Packaging Info
    Package Weight 12.05 lb
    Box Dimensions (LxWxH) 16.142 x 11.181 x 9.213"
    The user manual for the BenQ MW727 WXGA DLP Multimedia Projector MW727 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BenQ users keep a unique electronic library for BenQ multimedia projectorss, where you can use our link to download the user manual for the BenQ MW727 WXGA DLP Multimedia Projector MW727.

    The user manual lists all of the functions of the BenQ MW727 WXGA DLP Multimedia Projector MW727, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BenQ service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BenQ MW727 WXGA DLP Multimedia Projector MW727. User manuals are also available on the BenQ website under A/V Presentation - Projectors - Multimedia Projectors.
