User manual BenQ MX525 XGA DLP Projector MX525

Operating instructions and pdf manual for use - BenQ MX525 XGA DLP Projector MX525 User manual, User manual BenQ MX525 XGA DLP Projector MX525, BenQ, MX525, XGA, DLP, Projector, MX525, Video

User manual for BenQ MX525 XGA DLP Projector MX525

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

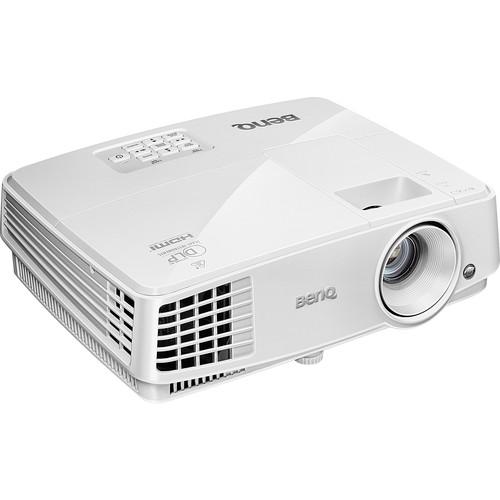

BenQ MX525 XGA DLP Projector MX525
  • Manufacturer: BenQ
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your BenQ
  • Settings and expert assistance
  • Contact BenQ service
  • Troubleshooting
  • Warranty information
  • Price: 379 USD
We recommend checking out our discussion threads on the BenQ MX525 XGA DLP Projector MX525, which address similar problems with connecting and setting up Multimedia Projectors BenQ.


User manual for the BenQ MX525 XGA DLP Projector MX525

The user manual for the BenQ MX525 XGA DLP Projector MX525 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Designed for small presentation and classroom settings, the MX525 XGA DLP Projector from BenQ features a brightness of 3200 lumens and a native resolution of 1024 x 768. To enable a measure of flexibility in terms of placement relative to the screen, there is a 1.1x optical zoom with a 1.86 to 2.04:1 throw ratio as well as ±40-degrees vertical keystone correction. In additional to its native resolution, internal scaling enables the projector to handle a variety of video and computer signals up to 1080p for HDTV sources and up to 1600 x 1200 (UXGA) for computer sources.

Ensuring the ability to connect to both current as well as legacy video sources, a total of five inputs are provided. Two VGA ports that work with many computers and integrated AV systems, which can also accommodate a component signal using a separately available component to VGA adapter or cable. For HDTV devices and computers with digital output there is an HDMI port, and for SD analog equipment there is an S-video port and a composite port. A 3.5mm stereo mini jack allows the projector to receive analog audio in case you want to use its built-in 2-watt mono speaker. There is also an analog audio output for connecting amplified speakers or a sound system.

The projector can be operated remotely using onboard buttons or the included IR remote. In addition, there is an RS-232 port for integrating with an automation system such as Crestron.
If you own a BenQ multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BenQ MX525 XGA DLP Projector MX525 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BenQ MX525 XGA DLP Projector MX525Download user manual for BenQ MX525 XGA DLP Projector MX525
(PDF file, 4.92 MB)
Additional parameters of the BenQ MX525 XGA DLP Projector MX525:
Specifications
    Image Display
    Display System 1-Chip DLP
    Native Resolution XGA - 1024 x 768
    Supported Resolutions UXGA - 1600 x 1200
    VGA - 640 x 480
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 1920 x 1080p
    1920 x 1080i
    1280 x 720p
    720 x 576p
    720 x 576i
    720 x 480p
    720 x 480i
    Brightness 3200 Lumens
    Offset 120% ± 5%
    Aspect Ratio Native: 4:3
    Supported: 16:10
    Supported: 16:9
    Dynamic Contrast Ratio 13000:1
    DLP Link 3D Yes
    Color Range 1.07 Billion
    Scan Horizontal: 15 - 102 kHz
    Vertical: 23 - 120 Hz
    Lens
    Lens F 2.56 - 2.8 (f = 21 - 23 mm)
    Zoom 1.1x
    Throw Ratio 1.86 - 2.04:1 (53" @ 2 m)
    Projection Size 36 - 300" / 91.44 - 762.00 cm
    Features
    Keystone Correction Vertical: ± 40°
    Built-in Speaker Yes, 2 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 1x HDMI Audio/Video (Input)
    2x 15-pin VGA Video (Input)
    1x RCA Composite Video (Input)
    1x S-Video Video (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x USB 2.0 Type-B Female
    1x RS-232C Control
    1x IR Remote (Input)

    VGA inputs also support component
    General
    Watts 190 W
    Life Normal Mode: 4500 Hours
    Eco Mode: 6000 Hours
    Eco+ Mode: 6500 Hours
    LampSave Mode: 10000 Hours
    Fan Noise Normal Mode: 33 dB
    Eco Mode: 28 dB
    Remote Control Yes
    System Requirements Windows
    • XP
      Vista
      7
      8
    • USB 2.0 Interface

    Required to use Remote Paging feature
    Languages Arabic
    Bulgarian
    Croatian
    Czech
    Danish
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hindi
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Romanian
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 270 W
    Eco Mode: 220 W
    Standby Mode: <.5 W
    Dimensions (WxHxD) 11.1 x 3.7 x 8.7" / 283.0 x 95.0 x 222.0 mm
    Weight 4.19 lb / 1.9 kg
    Packaging Info
    Package Weight 6.2 lb
    Box Dimensions (LxWxH) 13.937 x 11.575 x 5.512"
    The user manual for the BenQ MX525 XGA DLP Projector MX525 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BenQ users keep a unique electronic library for BenQ multimedia projectorss, where you can use our link to download the user manual for the BenQ MX525 XGA DLP Projector MX525.

    The user manual lists all of the functions of the BenQ MX525 XGA DLP Projector MX525, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BenQ service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BenQ MX525 XGA DLP Projector MX525. User manuals are also available on the BenQ website under A/V Presentation - Projectors - Multimedia Projectors.
