User manual Beseler CS-14 Copystand Kit 4205

Operating instructions and pdf manual for use - Beseler CS-14 Copystand Kit 4205 User manual, User manual Beseler CS-14 Copystand Kit 4205, Beseler, CS-14, Copystand, Kit, 4205, Video


User manual for Beseler CS-14 Copystand Kit 4205

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Beseler  CS-14 Copystand Kit 4205
  • Manufacturer: Beseler
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Tabletop Shooting - Copystands & Copylights
  • Safety instructions
  • Startup and operation of the copystands & copylights
  • Tips for setting up your Beseler
  • Settings and expert assistance
  • Contact Beseler service
  • Troubleshooting
  • Warranty information
  • Price: 660 USD
We recommend checking out our discussion threads on the Beseler CS-14 Copystand Kit 4205, which address similar problems with connecting and setting up Copystands & Copylights Beseler.



User manual for the Beseler CS-14 Copystand Kit 4205

The user manual for the Beseler CS-14 Copystand Kit 4205 provides necessary instructions for the proper use of the product Lighting & Studio - Tabletop Shooting - Copystands & Copylights.

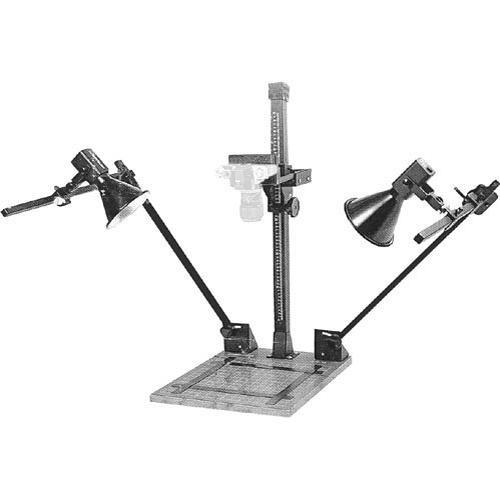

The CS-14 Copy Stand offers reliable Beseler performance, an 18% gray baseboard with grid and magnetic copy hold-down bars, and a unique, adjustable camera platform that facilitates the precise alignment of the optical axis of the camera over the exact center of the baseboard. Copy positioning is aided by multiple positioning grids, format patterns and reference scales on the baseboard. The camera moves on a single, straight vertical column, aided by a constant force, counterbalanced elevation system. The turn of a knob locks the camera in position at the desired height. The column is anchored to the 16 x 19" baseboard at four points and accepts any camera up to 5 lb. (2268 g). Maximum recommended copy size is 14 x 14" (356 x 356 mm).
If you own a Beseler copystands & copylights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Beseler CS-14 Copystand Kit 4205 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Beseler CS-14 Copystand Kit 4205:
Specifications
    Format 35mm
    Minimum Elevation 9.5" (241.3 mm)
    Maximum Elevation Column height: 31" (787.4 mm) ; Maximum camera height: 30" (762 mm)
    Baseboard Size 16 x 19" (406.4 x 482.6 mm)
    Reversible Column No
    Geared/Motorized Column Counterbalanced rise and fall with lock-up set knob
    Wall/Table Mountable Free-standing table model
    Levelling Control None; In/Out centering control possible: Maximum travel from column: 10" (254 mm); Minimum distance: 4.5" (114.3 mm)
    Type/Number of Lights Includes two (2) CL-600 Lights, two CLA Light Arms and two R-50 Reflectors - Can be used with standard or reflector lamps up to 600 watts
    Voltage No outlets on copy stand; Voltage only required for lights
    Dimensions 16 x 19" (406.4 x 482.6 mm) baseboard; Column height: 31" (787.4 mm)
    Weight 23.27 lb (10,555 g) (Shipping weight)
    Accessories
    Packaging Info
    Package Weight 40.6 lb
    Box Dimensions (LxWxH) 35.5 x 19.0 x 14.0"
    The user manual for the Beseler CS-14 Copystand Kit 4205 can be downloaded in .pdf format if it did not come with your new copystands & copylights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Beseler users keep a unique electronic library for Beseler copystands & copylightss, where you can use our link to download the user manual for the Beseler CS-14 Copystand Kit 4205.

    The user manual lists all of the functions of the Beseler CS-14 Copystand Kit 4205, all the basic and advanced features and tells you how to use the copystands & copylights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Beseler service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Beseler CS-14 Copystand Kit 4205. User manuals are also available on the Beseler website under Lighting & Studio - Tabletop Shooting - Copystands & Copylights.
