User manual for the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT

The user manual for the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

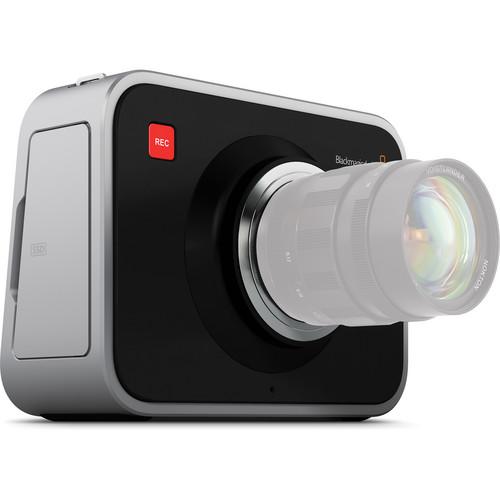

The Blackmagic Design Cinema Camera features a 2.5K image sensor, 13 stops of dynamic range, and a Micro Four Thirds lens mount. It is capable of recording 12-bit CinemaDNG RAW files at full 2.5K (2432 x 1366) resolution, as well as 10-bit Apple ProRes and Avid DNxHD formats at 1080p. The camera records to removable 2.5" SSDs, which enable the high data rates required for RAW and ProRes HQ recording.

The camera is housed in an elegant, minimalist enclosure, crafted from a single block of aluminum. The passive Micro Four Thirds (MFT) lens mount offers compatibility with a wide range of manually operated lenses, while also being easily adapted to other mounts such using optional third party adapters. Footage is monitored and settings are adjusted using the large 5" rear LCD touchscreen. The touchsreen also lets you easily add metadata to your shots, such as shot number, filenames, and keywords, which can save time and money in the post-production process.

To handle the high data video output, Blackmagic includes a full version of DaVinci Resolve, its premier color correcting software for Mac and Windows. Also included is a copy of UltraScope. When connected to a computer via Thunderbolt, the software provides technically accurate waveform monitoring, displaying six live scope views on a single monitor.


PLEASE NOTE: The camera cannot format SSD drives. SSD drives have to be formatted (via an external 2.5" compatible dock) as HFS+ or exFAT on a Mac or Windows PC.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFTDownload user manual for Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT
(PDF file, 6.22 MB)
Additional parameters of the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT:
Sensor Resolution 2432 x 1366
Raw Resolution 12-bit RAW files recorded at 2432 x 1366
Shooting Resolutions 2.5K RAW at 2432 x 1366
ProRes and DNxHD at 1920 x 1080
Frame Rates 23.98p, 24p, 25p, 29.97p, 30p
Sensor Size Actual: 16.64 x 14.04 mm
Active: 15.6 x 8.8 mm
Dynamic Range 13 stops
Focus Focus button turns on peaking
Iris Control Compatible with any manually operated iris based lens
Lens Mount MFT Mount (passive)
Screen Size: 5" with 800 x 480 resolution
Type: Integrated LCD capacitive touchscreen
Metadata Automatic camera data and user data such as shot number, filenames and keywords
Controls Onscreen touch menus
Physical buttons for recording and transport control
Microphone Integrated mono microphone
Speaker Integrated mono speaker
Connections SDI Video Output: 1 x 10-bit HD-SDI 4:2:2 with choice of Film or Video Dynamic Range
Analog Audio Input: 2 x 1/4" TRS balanced phone switchable between microphone and line levels
Analog Audio Output: 1 x 3.5 mm TRS stereo mini headphone
SDI Audio Output: 4 channels in HD-SDI
Remote Control: 1 x 2.5 mm LANC for Record Start/Stop, Iris Control and Focus Control
Computer Interface: Thunderbolt port for capture of RAW video and audio, USB 2.0 mini B port for software updates and configuration
External Power: 12V-30V DC port for external battery power or use included 12V AC adapter
Storage Type: Removable 2.5" SSD
Format: Mac OS Extended format (SSDs can be formatted on any Mac or use Mediafour MacDrive [not included] on a Windows PC)
Rates: 5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video on a 256 GB solid state disk - compressed HD formats fit more than 5 times the amount of RAW video
Uncompressed Recording Format: RAW 2.5K CinemaDNG
Compressed Recording Format: Apple ProRes and Avid DNxHD. All compressed recording in 1920x1080 10-bit YUV with choice of Film or Video dynamic range
Standards SDI Compliance: SMPTE 292M
SDI Audio Sampling: 24-bit/48 kHz
Mounting 3 x 1/4" thread mounting points on top of camera
1 x 1/4" thread tripod mount with locator pin
Power Integrated Lithium-ion Polymer rechargeable battery
12~30 VDC port for external battery power or use included 12 VAC adapter
Battery Life: Approximately 90 minutes
Charge Time: Approximately 2 hours when not in use
Dimensions 6.5 x 4.5 x 5" (166 x 114 x 126 mm)

Excluding detachable sunshade and turret dust cap

Weight 3.3 lb (1.5 kg)
Packaging Info
Package Weight 6.55 lb
Box Dimensions (LxWxH) 13.2 x 8.9 x 7.0"
The user manual for the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design digital cine camerass, where you can use our link to download the user manual for the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT.

The user manual lists all of the functions of the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT, all the basic and advanced features and tells you how to use the digital cine cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design Cinema Camera (MFT Mount) CINECAM26KMFT. User manuals are also available on the Blackmagic Design website under Professional Video - Digital Cine Cameras.
