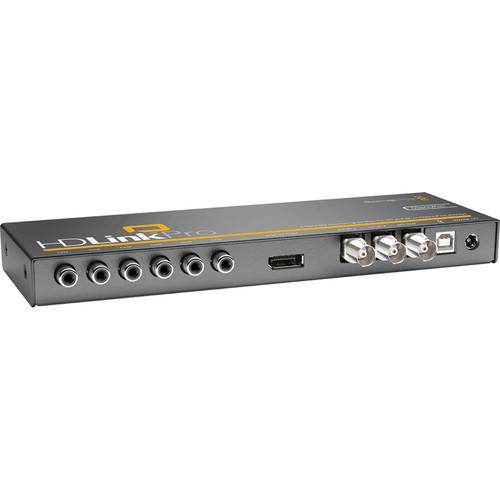

Now supporting full 3D stereoscopic and HDMI 1.4, the HDLink Pro 3D DisplayPort from Blackmagic is the world's first SDI monitoring solution for deep bit-depth DisplayPort monitors. Providing the highest image quality in both 4:2:2 and 4:4:4, HDLink Pro is perfect for SD, HD and feature film 2K monitoring. It supports 1.62 and 2.7 Gb/s DisplayPort monitors with 1, 2 and 4 lanes, as well as DVI and HDMI monitors with an adapter (not included).

Please note: Power supply requires separately available IEC power cable.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design HDLink Pro 3D DisplayPort HDL-PRODISPORT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design HDLink Pro 3D DisplayPort HDL-PRODISPORTDownload user manual for Blackmagic Design HDLink Pro 3D DisplayPort HDL-PRODISPORT
(PDF file, 6.27 MB)
Additional parameters of the Blackmagic Design HDLink Pro 3D DisplayPort HDL-PRODISPORT:
Inputs/Outputs SDI Video Input:
1 x BNC input switches between SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4 and 2K via SDI or use 2 x BNC inputs for dual-link HD-SDI 4:4:4
SDI Video Output:
1 x BNC active loop through output switches between SD, HD 4:2:2, HD 4:4:4 and 2K
Multi Rate SDI Support:
270 Mbs standard definition, 1.5Gbs high definition 4:2:2
3Gbs 4:4:4 high definition and 2K film
Analog Audio Output:
6 x unbalanced 24 bit analog outputs on RCA connectors -10db, de-embedded from SDI input
DVI-D Video Output:
Supports SD, HD and 2K using Dual Link DVI-D displays up to 30 inches 2560 x 1600 in size when used with a DisplayPort to dual link DVI adapter (not included)
DisplayPort Video Output:
Supports SD, HD and 2K using DisplayPort monitors up to 30 inches 2560 x 1600 in size.
HDMI Video Output:
DisplayPort to HDMI adapter (not included). Supports HDMI displays, such as a TV or video projectors up to 1920 x 1080 resolution
HDMI Audio Output:
DisplayPort to HDMI adapter (not included)
Updates and Configuration:
USB 2.0 High Speed (480Mbs) interface
Standards 2K Format Support via DVI-D, DisplayPort: 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25
HD Format Support via DVI-D, HDMI & DisplayPort:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60
SD Format Support via DVI-D, HDMI & DisplayPort:
625/25 PAL and 525/29.97 NTSC
SDI Compliance:
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video Sampling:
4:2:2 and 4:4:4.
SDI Color Precision:
4:2:2 10 bit and 4:4:4 10 bit
SDI Color Space:
4:2:2 YUV, 4:4:4 YUV and 4:4:4 RGB
SDI Audio Sampling:
Television standard sample rate of 48 kHz and 24 bit
3D Muxing Modes:
Side by Side, Line by Line, Top and Bottom. Horizontal and/or vertical image flip can be applied to either the left or right eye input.
DVI-D, DisplayPort Configuration:
Automatic adjustment using VESA E-EDID1.3
DVI-D, DisplayPort Resolution:
Pixel-for-pixel display on LCD displays
HDMI Configuration:
HDMI automatically configures to connected display
HDMI Resolution:
Pixel for pixel HD resolution input to connected device.
System Requirements Interface:
DisplayPort connection to LCD computer monitor or use an adapter to connect to a DVI-D or HDMI display
Resolution via DVI-D, DisplayPort:
1920 x 1200 required for HD1080 video SDI formats
1280 x 800 recommended for HD720 video SDI formats
2560 x 1600 required for 2K feature film formats
(DVI-D displays generally do not support 720p50 or 1080p50 but most recent HDMI displays do.)
Resolution via HDMI:
The HDMI input of a display must accept either:
1920 x 1080 for HD1080 video SDI formats
1280 x 720 for HD720 video SDI formats
Refresh Frame Rate for DVI:
Nominal 60Hz (48-72Hz recommended)
Power 12 VDC universal power supply (IEC power cable required)
Dimensions (HxWxD) 9.25 x 5.5 x 1.5" (23.5 x 14.0 x 3.8 cm)
Weight 1.3 lb (0.6 kg)
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 9.2 x 5.4 x 1.5"
