User manual Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2

Operating instructions and pdf manual for use - Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2 User manual, User manual Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2, Blackmagic, Design, HyperDeck, Shuttle, 2, SSD, Video, H


User manual for Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
  • Price: 328 USD
We recommend checking out our discussion threads on the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2, which address similar problems with connecting and setting up Solid State/HDD Recorders Blackmagic Design.



User manual for the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2

The user manual for the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

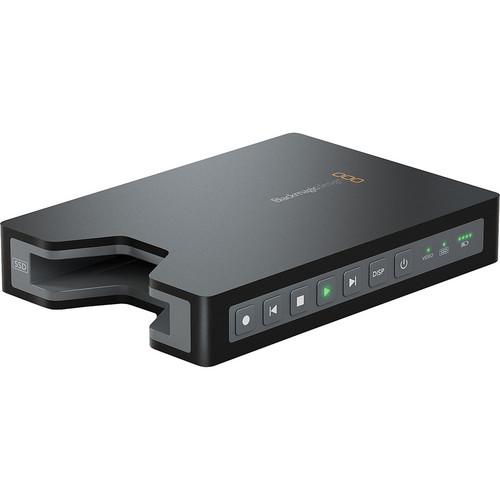

The Blackmagic Design HyperDeck Shuttle 2 SSD Video Recorder records uncompressed 10-bit HD and SD video as QuickTime files from any SDI- or HDMI-enabled camcorder. This updated version of the original HyperDeck Shuttle also records Avid's DNxHD 220x 10-bit and ProRes HQ codecs. The extremely compact recorder accepts a 2.5" SATA solid state drive (sold separately) for data storage. Simply by bypassing the camera's compression, this allows you to get the highest-quality output possible from camcorders that typically record video as highly compressed HDV, AVCHD, or another similar codec.
If you own a Blackmagic Design solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2Download user manual for Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2
(PDF file, 5.47 MB)
Additional parameters of the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2:
Specifications
    Connectivity
    Video Inputs 1x 10-bit HD/SD-SDI switchable via DIN 1.0/2.3 connector
    1x HDMI type A connector
    Video Outputs 1x 10-bit HD/SD-SDI switchable via DIN 1.0/2.3 connector
    1x HDMI 1.3 type A connector
    Audio Inputs SDI: 16 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files.
    HDMI: 8 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files.
    Audio Outputs SDI: 16 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files.
    HDMI: 2 channels embedded in SD and HD
    SSD Interface 1x 2.5" SATA 3 Gb/s
    Recorder Control 7 buttons for local control of HyperDeck Shuttle 2, or use USB 2.0 high-speed interface
    Recorder Configuration Use USB 2.0 high speed interface
    Computer Interface 1x Mini-B type USB 2.0 connector for initial setup, software updates, and HyperDeck Utility software control
    Standards
    SD Format Support 625/25 PAL and 525/29.97 NTSC
    480p60 and 576p50 via HDMI only
    HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
    SDI Compliance SMPTE 259M, SMPTE 292M
    SDI Metadata Support HD RP188 and closed captioning
    Video Sampling 4:2:2
    Audio Sampling Television standard sample rate of 48 kHz and 24-bit
    Color Precision 10-bit
    Color Space REC 601, REC 709
    Multiple Rate Support SDI and HDMI switches between 270 Mb/s SD-SDI and 1.5 Gb/s HD-SDI
    Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
    Codec Support Uncompressed 10-bit QuickTime, Apple ProRes 422 (HQ) QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF.
    Battery Rechargeable built-in lithium-ion polymer battery
    Power Supply 12V universal power supply included with international socket adapters for all countries. Connection supports 12-18 V
    Dimensions 4.6 x 6.1 x 1" (11.7 x 15.5 x 2.5 cm)
    Packaging Info
    Package Weight 1.85 lb
    Box Dimensions (LxWxH) 7.5 x 5.7 x 4.2"
    The user manual for the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2 can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design solid state/hdd recorderss, where you can use our link to download the user manual for the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2.

    The user manual lists all of the functions of the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2, all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design HyperDeck Shuttle 2 SSD Video HYPERD/PT2. User manuals are also available on the Blackmagic Design website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
