User manual for the Blackmagic Design Intensity Shuttle BINTSSHU
The user manual for the Blackmagic Design Intensity Shuttle BINTSSHU provides
necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

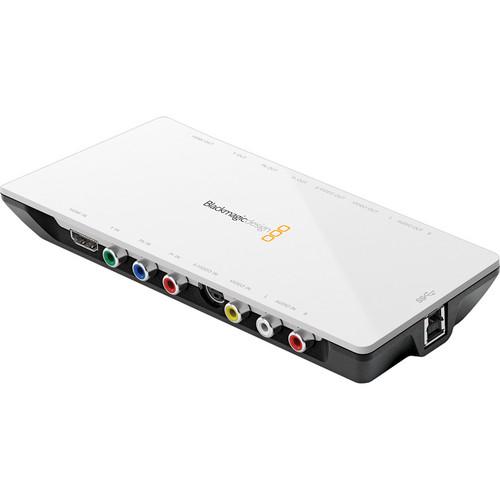

The Blackmagic Design Intensity Shuttle is a 10-bit HD/SD video capture/playback device that supports USB 3.0, and allows you to capture 10-bit HDMI or analog video directly from a camera onto your computer for professional editing or mere playback. With a neat, compact design, the Intensity Shuttle is very portable and easy to set up. As the input and output connections are on different sides, you can simply plug the unit in line with your existing cable setup.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design Intensity Shuttle BINTSSHU in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Analog Video Input: Component, NTSC, PAL or S-Video
Analog Video Output: Component, NTSC, PAL or S-Video
Analog Audio Input: 2 Channel RCA HiFi audio in 24 bit
Analog Audio Output: 2 Channel RCA HiFi audio in 24 bit
SPDIF Audio Output: None
Dual Rate support: HDMI and Analog Component switches between high definition and standard definition
Sync Input: None
Device Control: None. FireWire may be used for controlling some cameras
Computer Interface: USB 3.0
Standards
SD Format Support: 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p
HD Format Support: 1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94, 720p60
HDMI Video Sampling: 4:2:2
HDMI Color Precision: 4:2:2
HDMI Color Space: YUV 4:2:2
HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
Processing
Colorspace Conversion: Hardware based real time
Real time effects: Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats
Firmware
Firmware Upgrade: Firmware built into software driver. Loaded at system start, or via updater software
System Requirements
Requires Windows 7 and an x58-based motherboard with onboard USB 3.0, or a USB 3.0 PCI Express card and an x58 or P55 series motherboard. Does not support USB 2.0 capture and playback.
Not all x58 and USB 3 combinations are compatible. One small variable on an x58 can prevent compatibility. Blackmagic therefore recommends the following hardware as guaranteed to work --
Certified PC workstations: Hewlett Packard Z400 Hewlett Packard Z800
Certified combinations: Gigabyte X58A-UD5 motherboard with Intel Core i7 processor and GeForce GTX 285 graphics card (driver version 260.99) Asus Crosshair IV formula motherboard with AMD Phenom II X6 1090T 3.21 GHz processor and ATI Radeon HD 5800 series graphics card (2D driver version 8.01.01.1105)
Certified notebook computers: MSI GE620
Recommended motherboards: Asus P6X58D-Premium Asus P6X58D-E Gigabyte GA-X58A-UD7 Gigabyte GA-X58A-UD5 Gigabyte G1.Sniper (rev. 1.0)
