User manual for the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT
The user manual for the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

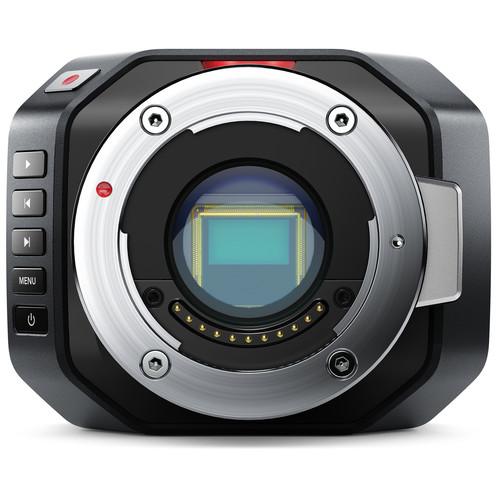

The Blackmagic Micro Cinema Camera is a miniature digital camera with a Super 16mm-sized sensor designed to be operated remotely and capture footage from virtually anywhere. It features the same image sensor found in Blackmagic's Pocket Cinema Camera, which supports 1080p video and 13 stops of dynamic range but adds a global shutter that supports frame rates up to 30 fps. Frame rates up to 60 fps are possible using a rolling shutter. The camera is equipped with an active MFT mount that can accept native MFT lens or be adapted to a wide range of other modern and vintage lenses using optional third party adapters. Video is recorded to SDHC/SDXC memory cards using the 12-bit CinemaDNG RAW format or 10-bit Apple ProRes family of codecs.
Compact in size, the Micro Cinema Camera is similar in size and shape to an action camera, making it well suited for mounted on helmets for POV action sequences, suspended from quadcopters for aerial shots, or any place where a larger camera can't fit. To facilitate camera control when the camera is mounted in impossible-to-reach locations, you can operate it remotely and view a live video feed thanks to the camera's expansion port. An included breakout cable supports four analog PWM radio remote control inputs, so you can map camera functions to the dials, knobs, buttons, and joysticks on model airplane remotes, such as start/stop recording, focus, and iris (with compatible MFT lenses). For more control, you can use the 18-channel S.bus control input with Futaba radio control equipment or custom embedded controllers.
In addition to radio control support, the breakout cable also provides LANC control, power, genlock, and composite video output for connecting to wireless video transmitters, letting you see what you're recording while remote controlling the camera. For higher quality monitoring, the camera has an HDMI output. For remote recording, you can attach a Canon LP-E6 type battery to the back of the camera to power is for up to 1.5 hours. One LP-E6 battery is included. The camera also has a 12V DC input via the breakout cable for powering the camera from external power supplies for longer shooting times.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT:
1 x 1/4"-20 thread (top) 3 x 1/4"-20 thread (bottom)
Power
12 to 20 VDC
Battery Type
Canon LP-E6
Battery Life
Approx. 1.5 hours
Operating Temperature
32 to 104° F (0 to 40° C)
Storage Temperature
-4 to 113° F (-20 to 45° C)
Relative Humidity
0 to 90% non-condensing
Dimensions
3.25 x 2.74 x 2.57 (8.26 x 6.96 x 6.53 cm)
Weight
10.65 oz (301.92 g)
The user manual for the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT can be downloaded in .pdf
format if it did not come with your new digital cine cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Blackmagic Design users keep a unique electronic library
for Blackmagic Design digital cine camerass,
where you can use our link to download the user manual for the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT.
The user manual lists all of the functions of the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT,
all the basic and advanced features and tells you how to use the digital cine cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Blackmagic Design service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Blackmagic Design Micro Cinema Camera CINECAMMICHDMFT. User manuals are also
available on the Blackmagic Design website under Professional Video - Digital Cine Cameras.
