User manual Blackmagic Design Production Camera 4K (EF Mount)

Operating instructions and pdf manual for use - Blackmagic Design Production Camera 4K (EF Mount) User manual, User manual Blackmagic Design Production Camera 4K (EF Mount), Blackmagic, Design, Production, Camera, 4K, EF, Mount,


User manual for Blackmagic Design Production Camera 4K (EF Mount)

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

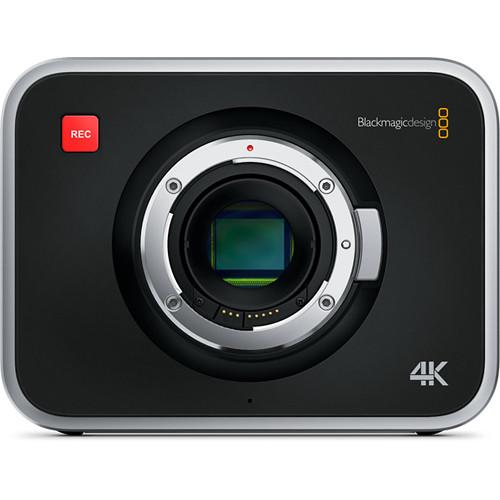

Blackmagic Design Production Camera 4K (EF Mount)
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Digital Cine Cameras
  • Safety instructions
  • Startup and operation of the digital cine cameras
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Blackmagic Design Production Camera 4K (EF Mount), which address similar problems with connecting and setting up Digital Cine Cameras Blackmagic Design.



User manual for the Blackmagic Design Production Camera 4K (EF Mount)

The user manual for the Blackmagic Design Production Camera 4K (EF Mount) provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

The Blackmagic Design Production Camera 4K features a Super 35mm sized image sensor with a global shutter and a Canon EF lens mount. The camera is capable of recording Ultra HD 4K (3840x2160) and 1080p video using the 10-bit Apple ProRes 422 family of codecs, as well as the visually lossless, compressed 12-bit CinemaDNG RAW at 4000x2160 resolution. The built-in recorder utilizes removable 2.5" SSDs, which enable the high data rates required by RAW and 880Mbps ProRes HQ. The camera's ability to expose for 12 stops of dynamic range lends the image a truly film-like look, and the Super 35mm (21.12 x 11.88mm) sized sensor approximates the standard of traditional film.

The Blackmagic Production Camera 4K retains the beautifully crafted design and machined aluminum chassis of the original Blackmagic Cinema Camera. Much like its predecessor, this camera features a 5" touchscreen LCD display with 800 x 480 resolution, which enables monitoring and playback as well as an efficient means for navigating the menu and entering metadata. The camera also includes a full license for DaVinci Resolve color grading software and UltraScope for live scopes via a Thunderbolt connection.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design Production Camera 4K (EF Mount) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design Production Camera 4K (EF Mount):
Camera
Sensor Size 21.12 x 11.88mm (Super 35)
Effective Resolution 3840 x 2160
Dynamic Range 12 stops
Lens Mount EF and ZE mount compatible with electronic iris control
Recording
Media Removable 2.5" SSD Mac OS Extended or exFAT format. SSDs can be formatted on any Mac or Windows PC, or in-camera with firmware 1.9.5 or higher
Formats Apple ProRes HQ, 422, LT, and Proxy (3840x2160 and 1920x1080, Film or Video dynamic range)
Compressed CinemaDNG RAW (4000x2160, Film dynamic range)
Resolutions & Frame Rates 4000 x 2160p 23.98/24/25/29.97/30 (CinemaDNG RAW only)
3840 x 2160p 23.98/24/25/29.97/30
1920 x 1080p 23.98/24/25/29.97/30
Display
Display Type Integrated LCD capacitive touchscreen
Display Size 5"
Display Resolution 800 x 480
Interface
Compliance SDI: SMPTE 292M
Video Output 6G-SDI (x1) for 10-bit 4:2:2 (Film or Video dynamic range)
Audio Output SDI: 2 channels, 48 kHz and 24 bit (embedded in 6G-SDI)
Analog: 1 x 3.5 mm stereo headphone jack
Analog Audio Input 2 x 1/4" balanced analog audio jacks (switchable between mic and line levels)
Computer Interface 1 x Thunderbolt
1 x USB 2.0 mini B
Remote 1 x 2.5mm LANC
Power Input 11 to 30 VDC port for external battery power or 12V AC adapter
General
Built-In Microphone Integrated mono microphone
Built-in Speaker Integrated mono speaker
Operating System Mac OS X 10.8 Mountain Lion or later
Windows 7 or later
Power 11 to 30 VDC
Battery Built-in Battery Life: approx. 90 minutes
Battery Charge Time: approx. 2 hours when not in use
Operating Temperature 32 to 104° F (0 to 40° C)
Storage Temperature -4 to 113° F (-20 to 45° C)
Relative Humidity 0 to 90% non-condensing
Dimensions 6.53 x 4.45 x 4.96" (16.6 x 11.3 x 12.6 cm)
Weight 3.75 lb (1.7 kg)
Packaging Info
Package Weight 7.15 lb
Box Dimensions (LxWxH) 13.1 x 8.9 x 7.0"
The user manual for the Blackmagic Design Production Camera 4K (EF Mount) can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design digital cine camerass, where you can use our link to download the user manual for the Blackmagic Design Production Camera 4K (EF Mount).

The user manual lists all of the functions of the Blackmagic Design Production Camera 4K (EF Mount), all the basic and advanced features and tells you how to use the digital cine cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design Production Camera 4K (EF Mount). User manuals are also available on the Blackmagic Design website under Professional Video - Digital Cine Cameras.
