User manual for the Blackmagic Design Production Camera 4K (PL Mount)
The user manual for the Blackmagic Design Production Camera 4K (PL Mount) provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

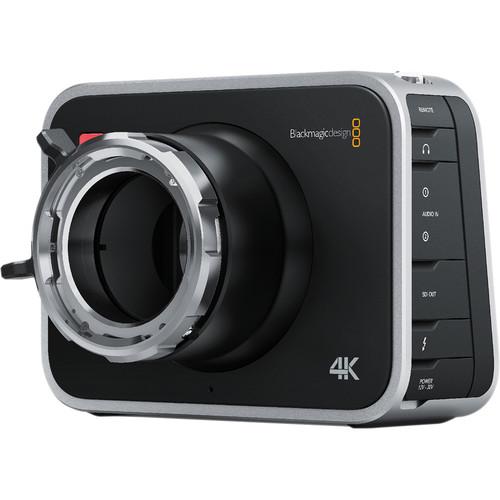

The Blackmagic Design Production Camera 4K features a Super 35mm sized image sensor with a global shutter and a PL lens mount. The camera is capable of recording Ultra HD 4K (3840x2160) and 1080p video using the 10-bit Apple ProRes 422 family of codecs, as well as the visually lossless, compressed 12-bit CinemaDNG RAW at 4000x2160 resolution. The built-in recorder utilizes removable 2.5" SSDs, which enable the high data rates required by RAW and 880Mbps ProRes HQ. The camera's ability to expose for 12 stops of dynamic range lends the image a truly film-like look, and the Super 35mm (21.12 x 11.88mm) sized sensor approximates the standard of traditional film.
The Blackmagic Production Camera 4K retains the beautifully crafted design and machined aluminum chassis of the original Blackmagic Cinema Camera. Much like its predecessor, this camera features a 5" touchscreen LCD display with 800 x 480 resolution, which enables monitoring and playback as well as an efficient means for navigating the menu and entering metadata. The camera also includes a full license for DaVinci Resolve color grading software and UltraScope for live scopes via a Thunderbolt connection.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design Production Camera 4K (PL Mount) in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design Production Camera 4K (PL Mount):
| Sensor Size || 21.12 x 11.88mm (Super 35) |
| Effective Resolution || 3840 x 2160 |
| Dynamic Range || 12 stops |
| Lens Mount || PL mount |
| Media || Removable 2.5" SSD Mac OS Extended or exFAT format. SSDs can be formatted on any Mac or Windows PC, or in-camera with firmware 1.9.5 or higher |
| Formats || Apple ProRes HQ, 422, LT, and Proxy (3840x2160 and 1920x1080, Film or Video dynamic range) |
Compressed CinemaDNG RAW (4000x2160, Film dynamic range)
| Resolutions & Frame Rates || 4000 x 2160p 23.98/24/25/29.97/30 (CinemaDNG RAW only) |
3840 x 2160p 23.98/24/25/29.97/30
1920 x 1080p 23.98/24/25/29.97/30
| Display Type || Integrated LCD capacitive touchscreen |
| Display Size || 5" |
| Display Resolution || 800 x 480 |
| Compliance || SDI: SMPTE 292M |
| Video Output || 6G-SDI (x1) for 10-bit 4:2:2 (Film or Video dynamic range) |
| Audio Output || SDI: 2 channels, 48 kHz and 24 bit (embedded in 6G-SDI) |
Analog: 1 x 3.5 mm stereo headphone jack
| Analog Audio Input || 2 x 1/4" balanced analog audio jacks (switchable between mic and line levels) |
| Computer Interface || 1 x Thunderbolt |
1 x USB 2.0 mini B
| Remote || 1 x 2.5mm LANC |
| Power Input || 11 to 30 VDC port for external battery power or 12V AC adapter |
| Built-In Microphone || Integrated mono microphone |
| Built-in Speaker || Integrated mono speaker |
| Operating System || Mac OS X 10.8 Mountain Lion or later |
Windows 7 or later
| Power || 11 to 30 VDC |
| Battery || Built-in Battery Life: approx. 90 minutes |
Battery Charge Time: approx. 2 hours when not in use
| Operating Temperature || 32 to 104° F (0 to 40° C) |
| Storage Temperature || -4 to 113° F (-20 to 45° C) |
| Relative Humidity || 0 to 90% non-condensing |
| Dimensions || 6.53 x 4.45 x 4.96" (16.6 x 11.3 x 12.6 cm) |
| Weight || 3.75 lb (1.7 kg) |
| Package Weight || 7.45 lb |
| Box Dimensions (LxWxH) || 12.835 x 8.74 x 7.244" |
