Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Digital Cine Cameras
  • Safety instructions
  • Startup and operation of the digital cine cameras
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL

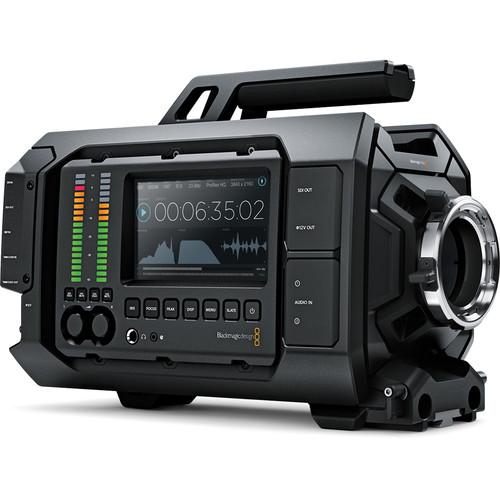

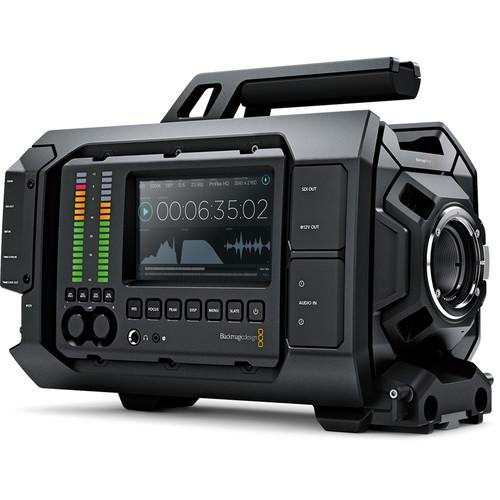

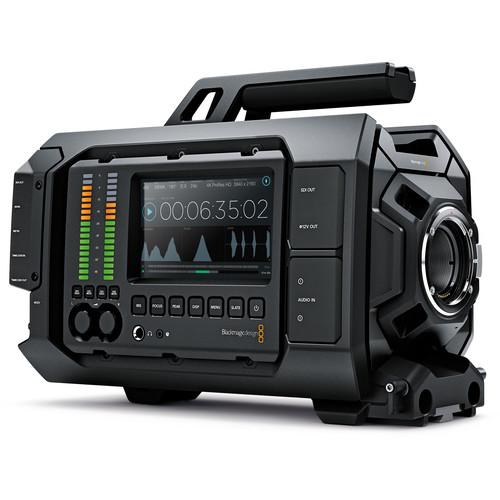

Click to enlarge image

We recommend checking out our discussion threads on the Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL, which address similar problems with connecting and setting up Digital Cine Cameras Blackmagic Design.



User manual for the Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL

The user manual for the Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

The URSA 4K v1 Digital Cinema Camera with PL Mount from Blackmagic Design features a form factor that is designed to make it flexible enough to use on productions of all sizes. From a single operator all the way up to a full camera crew. At the heart of the imaging system, URSA 4K features a 3840 x 2160p resolution, global shutter CMOS sensor with 12 stops of dynamic range. The camera records and outputs in the 2160p format, a 16:9 standard with precisely four times the resolution of 1080p, often referred to as UltraHD.

Internally, URSA can record in the two formats. The first is 12-bit CinemaDNG RAW, a losslessly compressed RAW codec designed to give you the greatest latitude for image manipulation in post production. The second is Apple ProRes 422 (HQ), a debayered codec for easier playback and editing in a wide range of video editing applications. Additionally, ProRes also requires less storage space for extended recording times. Video is recorded to CFast 2.0 memory cards, and the camera features two slots allowing you to hot swap media for continuous, uninterrupted recording.

URSA features a 10.1", 1080p resolution flip-out LCD screen so that you won't necessarily need an on-camera monitor. Additionally, there are two 5" capacitive touchscreens, one on either side of the body. These allow you to access the menu system and can display data such as timecode and audio waveforms.

So you can edit and color correct your footage, especially footage shot in the CinemaDNG RAW format, URSA includes DaVinci Resolve software dongle for OS X and Windows.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PLDownload user manual for Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL
(PDF file, 30.92 MB)
Additional parameters of the Blackmagic Design URSA 4K v1 Digital Cinema CINECAMURSA4K/PL:
Specifications
    Sensor
    Size 21.12 x 11.88 mm (Super35)
    Lens Mount PL Mount
    Effective Resolution 3840 x 2160 (UltraHD 4K)
    Dynamic Range 12 stops
    Shooting Resolutions 3840 x 2160, 1920 x 1080
    Supported Frame Rates 30 fps in RAW
    80 fps in RAW 3:1
    80 fps in ProRes HD or ProRes UHD
    Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
    Display
    Dimensions 1 x 10.1" diagonal
    2 x 5" diagonal
    Screen Type 10.1": TFT-LCD
    5": Integrated LCD capacitive touchscreen
    Resolution 10.1": 1920 x 1080
    5": 800 x 480
    Recording
    Media Card Slots 2 x CFast 2.0
    Recording Formats Lossless CinemaDNG RAW and RAW 3:1 with film dynamic range at 4000 x 2160. Apple ProRes 444, ProRes 422 HQ, 422, 422 LT and 422 Proxy at 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
    Data Rates 1320 Mbps using Apple ProRes 444 at 3840 x 2160
    880 Mbps using Apple ProRes 422 HQ at 3840 x 2160
    589 Mbps using Apple ProRes 422 at 3840 x 2160
    410 Mbps using Apple ProRes 422 LT at 3840 x 2160
    182 Mbps using Apple ProRes 422 Proxy at 3840 x 2160
    330 Mbps using Apple ProRes 444 at 1920 x 1080
    220 Mbps using Apple ProRes 422 HQ at 1920 x 1080
    147 Mbps using Apple ProRes 422 at 1920 x 1080
    102 Mbps using Apple ProRes 422 LT at 1920 x 1080
    45 Mbps using Apple ProRes 422 Proxy at 1920 x 1080

    Approx 265 MB/s using CinemaDNG RAW at 4000 x 2160
    Approx 125 MB/s using CinemaDNG RAW 3:1

    Note: Storage rates calculated at 30 frames per second
    Metadata Support Automatic camera data and user data such as shot number, filenames, and keywords
    Connections
    Output 1 x 12G-SDI -- 10-bit 4:2:2
    1 x 3G-SDI -- down-converted signal for monitoring
    Input 1 x 12G-SDI
    Reference 1 x Reference input
    Timecode 1 x Timecode input
    1 x Timecode output
    Analog Audio Inputs 2 x XLR -- selected mic/line level and +48 V phantom power
    Analog Audio Output 1 x 1/4" TRS -- for headphone monitoring
    SDI Audio Output 2-channel via SDI output
    Remote Control 1 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus
    USB 1 x USB 2.0 mini type B for software updates
    Supported Standards SDI Compliance: SMPTE 292M
    SDI Audio Sampling: 48 kHz and 24-bit
    General
    Microphone Integrated mono microphone
    Speaker Integrated mono microphone
    Controls Touch screen menus on 5" screen; push button controls for navigating menus
    Mounting Options Multiple 1/4"-20 UNC thread mounting on top of camera and on handle bar; multiple 3/8"-16 UNC thread on top of camera body; rosette on bottom
    Integrated rod mounts compatible with 15mm Light Weight Support (LWS) standard
    System Requirements For DaVinci Resolve: Windows 7 or later or OS X 10.8 or later

    Note: See Blackmagic website for detailed system requirements and configuration guides.
    Power Connectors 1 x 4-pin XLR input for external power supply or battery
    1 x 12 VDC output on 4-pin XLR to power accessories
    Battery Plate Support Mounting holes for V-mount and Gold Mount battery plates
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Humidity 0 to 90% RH, non-condensing
    Dimensions 12.3 x 6.1 x 9.6 (31.2 x 15.5 x 24.4 cm)
    Weight 16.52 lb
    Packaging Info
    Package Weight 29.0 lb
    Box Dimensions (LxWxH) 16.6 x 12.0 x 9.9"
