User manual BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622

Operating instructions and pdf manual for use - BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622 User manual, User manual BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622, BLADE, CGO3-GB, 4K, Camera, with, 3-Axis, Gimbal,


User manual for BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622

BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622
  • Manufacturer: BLADE
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - BLADE Accessories
  • Safety instructions
  • Startup and operation of the blade accessories
  • Tips for setting up your BLADE
  • Settings and expert assistance
  • Contact BLADE service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD

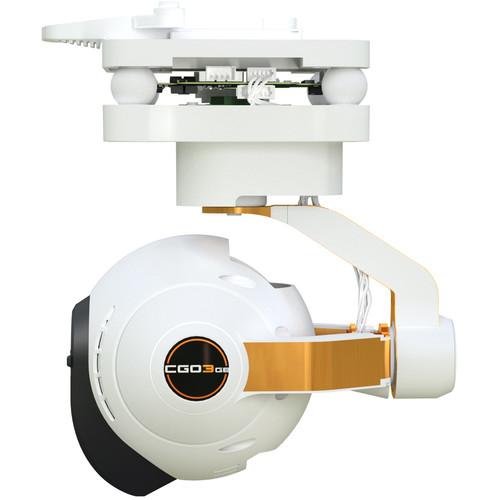

BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622 BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622
Click to enlarge image

We recommend checking out our discussion threads on the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622, which address similar problems with connecting and setting up BLADE Accessories BLADE.



User manual for the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622

The user manual for the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - BLADE Accessories.

The CGO3-GB for Blade Chroma combines a 12-megapixel, 4K camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. In addition to 4K, the camera can shoot 1080p at 120 fps for slow-motion as well as 60p, 50p, and 48p. A built-in microphone enables audio recording and can be turned on or off via the separately available ST-10+ transmitter/ground station unit or using a mobile app. Photos can be captured in JPEG or DNG RAW and it is possible to snap photos while recording video. The camera features a wide angle 130-degree FOV lens. While the gimbal that supports it features a control angle accuracy of ±0.02°. High-quality video and stills are recorded to a separately available microSD card up to 128GB in size. Low-quality, upload-friendly versions can be saved onto a mobile device.

Note: This version of the CGO3-GB includes mounting hardware and cables for installation with the Blade Chroma. Additional hardware may be required for use on other aircraft. Use with the ST-10+ requires installation of the ST-10+ receiver (available separately)
If you own a BLADE blade accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622:
Specifications
Camera
Focus Fixed
Resolution Video: 4K 1080p at 120, 60, 50 or 48 fps
Photo: 12 MP
White Balance Automatic
Audio Audio recording via integrated microphone (turn on/off with app)
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Gimbal
Control Accuracy ±0.02°
Video Transmitter
Frequency 5.8 GHz
Transmit Power 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum)
Range Up to 984.3' / 300 m line-of-sight
Power Requirements 7 to 14 VDC (powers from flight battery)
General
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 4.5 x 5.3 x 2.9" / 115 x 135 x 74 mm
Weight 6.5 oz / 185 g
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 6.4 x 5.6 x 3.6"
The user manual for the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622 can be downloaded in .pdf format if it did not come with your new blade accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BLADE users keep a unique electronic library for BLADE blade accessoriess, where you can use our link to download the user manual for the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622.

The user manual lists all of the functions of the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622, all the basic and advanced features and tells you how to use the blade accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BLADE service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BLADE CGO3-GB 4K Camera with 3-Axis Gimbal for Chroma BLH8622. User manuals are also available on the BLADE website under Camcorders - Aerial Imaging & Drones - BLADE Accessories.
