User manual BLADE Mach 25 FPV Racer (BNF) BLH8980

Operating instructions and pdf manual for use - BLADE Mach 25 FPV Racer (BNF) BLH8980 User manual, User manual BLADE Mach 25 FPV Racer (BNF) BLH8980, BLADE, Mach, 25, FPV, Racer, BNF, BLH8980, Video

User manual for BLADE Mach 25 FPV Racer (BNF) BLH8980

BLADE Mach 25 FPV Racer (BNF) BLH8980
  • Manufacturer: BLADE
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your BLADE
  • Settings and expert assistance
  • Contact BLADE service
  • Troubleshooting
  • Warranty information
  • Price: 430 USD
We recommend checking out our discussion threads on the BLADE Mach 25 FPV Racer (BNF) BLH8980, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones BLADE.


User manual for the BLADE Mach 25 FPV Racer (BNF) BLH8980

The user manual for the BLADE Mach 25 FPV Racer (BNF) BLH8980 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

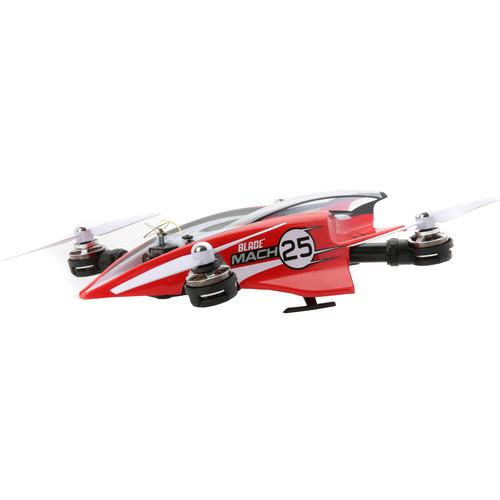

Designed for quad racing, the Mach 25 from Blade is a 250-sized quadcopter featuring forward-inclined motors to give you that extra edge in competition. Sporting an integrated ultra micro FPV camera with 5.8 GHz video transmitter, the body is LED illuminated to ensure you stay on top of the quad's orientation. The body has been streamlined for enhanced aerodynamics, and features carbon-fiber and aluminum components for added robustness.

Powered by a SAFE- (Sensor Assisted Flight Envelope) equipped flight controller, this BNF aircraft includes a Spektrum AR636QR receiver for use with 5+ channel 2.4 GHz DSM2 or DSMX transmitters. Multiple flight modes allow you to select an option that best corresponds with your skill level - from increased redundancy with a restricted flight envelope for beginners to nearly full manual control for advanced pilots looking to maximize agility.

An FPV camera with transmitter and a 1350mAh flight battery are included with this bundle. Additional hardware required includes a charger, video monitor with 5.8 GHz receiver or similarly equipped FPV goggles, and a battery charger.
If you own a BLADE aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BLADE Mach 25 FPV Racer (BNF) BLH8980 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BLADE Mach 25 FPV Racer (BNF) BLH8980Download user manual for BLADE Mach 25 FPV Racer (BNF) BLH8980
(PDF file, 3.56 MB)
Additional parameters of the BLADE Mach 25 FPV Racer (BNF) BLH8980:
Specifications
Flight Control System
Type Blade with SAFE technology
Receiver Frequency: 2.4 GHz
Protocol: DSM2/DSMX
Transmitter Requirements DSM2/DSMX 5+ channel
Video Downlink
Frequency 5.8 GHz
Transmit Power 25 mW
Motors
Motor Velocity Constant 2300 Kv
ESC Compact Castle Creations 4-in-1 ESC
Flight Battery
Chemistry Lithium-polymer (LiPo)
Capacity 1350 mAh
Voltage 3S (11.1 V)
General
Configuration Quadcopter
Completion Level Bind-N-Fly basic (no assembly required)
Size 250
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 14.3 x 10.1 x 4.4"
Blade Mach 25 FPV Racer BNF Basic
The user manual for the BLADE Mach 25 FPV Racer (BNF) BLH8980 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BLADE users keep a unique electronic library for BLADE aerial imaging platforms & droness, where you can use our link to download the user manual for the BLADE Mach 25 FPV Racer (BNF) BLH8980.

The user manual lists all of the functions of the BLADE Mach 25 FPV Racer (BNF) BLH8980, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BLADE service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BLADE Mach 25 FPV Racer (BNF) BLH8980. User manuals are also available on the BLADE website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
