User manual for the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000
The user manual for the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000 provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - RF Equipment.

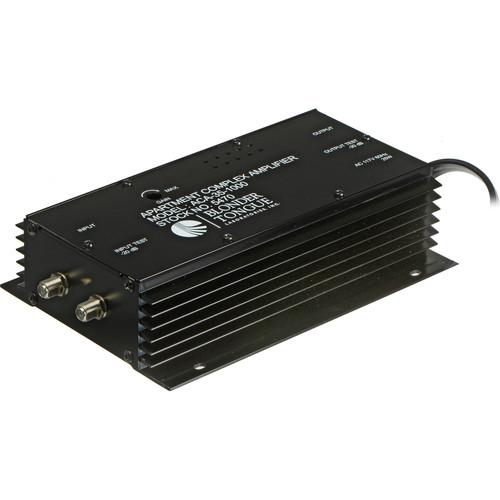

the ACA-35-1000 Apartment Complex Amplifier from Blonder Tongue is a 1 GHz indoor broadband distribution amplifier. It is designed for RF distribution systems such as those found in apartment complexes, hospitals, schools, prisons, and hotels. It has 35 db of operational gain and has a gain control range of 16 dB. it employs push-pull discrete amplifier stages with surface mount technology. The unit is housed in an aluminum chassis designed to provide efficient heat dissipation. It features an internal transformer and will power from an 117V AC supply.
|
If you own a Blonder Tongue rf equipment and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000:
| Frequency Range | 40 to 1000 MHz | | Channel Loading | 70 | | Flatness | ±1.00 dB | | Gain | 35 dB | | Noise Figure | 11 dB | | Output Level | +30 / +40 dB | | Input Test Port Level | -20, ±2 dB | | Output Test Port Level | -20, ±2 dB | | Gain Control Range | 18 dB | | Composite Triple Beat | -65 dB | | Cross Modulation -XMOD | -65 dB | | Second Order | -66 dB | | Hum Modulation | -65 dB | | Impedance | 75 ohm - all ports | | Return Loss | Input: 12 dB
Output: 10 dB | | Indicators | Power ON: Red LED | | Input | Power: 5-Pin DIN
RF Input: F type female | | Output | RF Output: F type female
Output Test Port: F type female | | Power Requirements | Transformer: 117 VAC, ±10% at 60 Hz
Device: 16 VAC at 60 Hz | | Power Consumption | 15 W | | Operating Temperature | 32 to 122°F / 0 to 60°C | | Dimensions | 7.3 x 6 x 1.7" / 184 x 152 x 44 mm | | Weight | 3.6 lb / 1.7 kg | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 9.5 x 6.1 x 2.3" | |
The user manual for the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000 can be downloaded in .pdf
format if it did not come with your new rf equipment, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Blonder Tongue users keep a unique electronic library
for Blonder Tongue rf equipments,
where you can use our link to download the user manual for the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000.
The user manual lists all of the functions of the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000,
all the basic and advanced features and tells you how to use the rf equipment.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Blonder Tongue service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Blonder Tongue ACA-35-1000 Apartment Complex ACA-35-1000. User manuals are also
available on the Blonder Tongue website under Professional Video - Signal Processing & Distribution - RF Equipment.
