User manual for the Blonder Tongue HDE-CSV-QAM HDE-CSV-QAM

The user manual for the Blonder Tongue HDE-CSV-QAM HDE-CSV-QAM provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - RF Equipment.

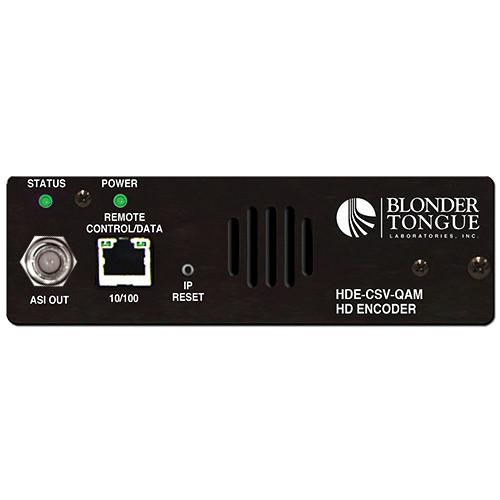

This MPEG-2 HD to QAM Encoder by Blonder Tongue accepts any of the following inputs: component, HD-SDI, HDMI (unencrypted), VGA, and composite. MPEG-2 encoded outputs are available in the following formats simultaneously: QAM RF, ASI, and IP (10/100Base-T Ethernet). The encoder features an analog/digital audio input which supports Dolby Digital audio encoding, and Closed Captioning (EIA-608).

The QAM RF output is frequency-agile over the entire CATV frequency range of 54-1002MHz (channels 2 to 158) with an output level of +40dBmV. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 10/100Base-T Ethernet connection. A rear-panel VGA output port is available for loop-through applications.
If you own a Blonder Tongue rf equipment and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blonder Tongue HDE-CSV-QAM HDE-CSV-QAM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blonder Tongue HDE-CSV-QAM HDE-CSV-QAM:
Specifications
    Input
    Component Connectors: 3 x RCA for video (Y, Pb, Pr), 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM)
    Video Resolution: 480i, 720p, & 1080i
    Video Aspect Ratio: 4:3 & 16:9
    HD-SDI Connector: 1 x BNC
    Standard: SMPTE 292M
    Video Resolution: 480i, 720p, & 1080i
    Audio: Embedded PCM and pass-through Dolby Digital only
    HDMI Connector: 1 x HDMI
    Video Resolution: 480i, 720p, & 1080i
    HDCP Encryption: Not supported
    Audio: Embedded PCM & pass-through Dolby Digital only
    VGA Connectors: 2 x female VGA (input + loop-through output)
    Video Resolution: 640 x 480 @ 60 fps, 800 x 600 @ 60 fps, 1024 x 768 @ 60 fps
    Audio: 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM)
    Composite Connector: 1 x RCA for video (Y)
    Video Resolution: 480i
    Audio: 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM)
    Encoder
    Video Output Format: MPEG-2 HD MP@ML; ISO 13818-2
    Chroma: 4:2:0
    Resolution: 480i, 720p, & 1080i
    Frame Rate: 29.97 fps (480i), 29.97 fps (1080i), 59.97 fps (720p)
    Aspect Ratio: 4:3 & 16:9
    GOP Structure: I & P frames (user-selectable)
    Transport Rate: Variable (user-selectable)
    Video Bit Rate: Variable (user-selectable)
    Video Pre-Filter: Variable (user-selectable)
    Intra DC Precision: Variable; 8-11 bit (user-selectable)
    Color Space: YCbCr and RGB
    Audio Output Format: Dolby Digital
    Sampling Rate: 48 kHz
    Bit Rate: Variable; 96 - 448 Kbps (user-selectable)
    Closed Captioning Component: EIA - 608; 1 x RCA (CC)
    HD-SDI: EIA - 708; embedded in HD-SDI input
    HDMI: EIA - 608; 1 x RCA (CC)
    VGA: EIA - 608; 1 x RCA (CC)
    Composite: EIA - 608
    Output
    QAM Connector: 1 x "F" female (rear-panel)
    Modulation: QAM 16, 32, 64, 128, and 256
    Standards: ITU-T J.83; annex A and B
    DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
    Frequency Range: 54 - 1002 MHz
    Tuning: CATV channel selectable (channels 2 to 158)
    Channels' Bandwidth: 6 MHz
    RF Level: +40 dBmV ±1 dB
    RF Level Adjustment: +32 to +42 dBmV, 1 dB increment
    Frequency Tolerance: ±0.5 kHz @ 77°F (25°C)
    Frequency Stability: ±5 kHz over 32 to 122°F (0 to 50°C)
    Amplitude Flatness: ±0.25 dB (over 6 MHz channel)
    Phase Noise: -98 dBc (@ 10 kHz)
    Spurious: -60 dBc
    Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
    Impedance: 75Ω
    Spectral Inversion: Auto recognition
    Carrier Suppression: 45 dB
    Return Loss: 14 dB typical
    Signal-to-Noise Ratio: 40 dB typical
    MER: 40 dB typical
    I/Q Phase Error: Less than 1 degree
    I/Q Amplitude Imbalance: Less than 1%
    ASI Connector: 1 x BNC (front-panel)
    Format: DVB-ASI
    Standard: ETSI EN 50083-9
    IP Connector: 1 x RJ45 (front-panel)
    Standard: 10/100Base-T Ethernet
    UDP/RTP: Supported (user-selectable)
    Alarms/Monitoring/Control
    Local Monitoring 1 x status LED
    1 x power LED
    Local Control 1 x IP reset button
    Remote Monitoring/Control GIU-based menu via standard Web browsers (1 x RJ45 front-panel connector; 10/100Base-T, also used for IP output)
    General
    Power 115 - 230 VAC / output 12 VDC @ 3 A (external power supply)
    Power Dissipation 20 W
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -13 to 158°F (-25 to 70°C)
    Operating Humidity 0 to 95% RH @ 35°C max, non-condensing
    Storage Humidity 0 to 95% RH @ 35°C max, non-condensing
    Dimensions (W x D x H) 5.65 x 12.50 x 1.75" (14.35 x 31.75 x 4.45 cm)
    Weight 1.5 lb (0.7 kg)
    Packaging Info
    Package Weight 4.55 lb
    Box Dimensions (LxWxH) 22.2 x 10.4 x 5.0"
