User manual for the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL

The user manual for the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL provides necessary instructions for the proper use of the product Pro Audio - Recording - USB.

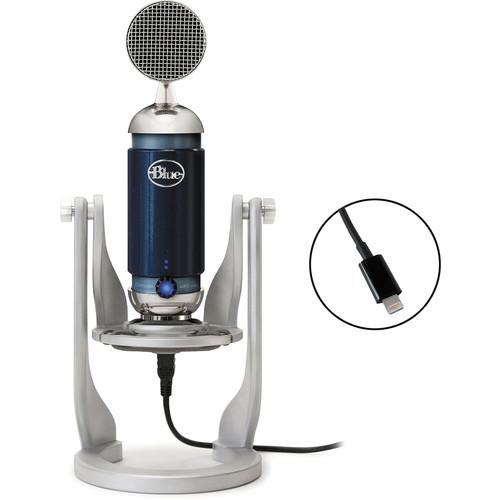

The Spark Digital Studio Condenser USB/Lightning Microphone by Blue is designed for driverless plug-and-play audio recording to a PC, Mac, or iPad (30-pin and Lightning connector versions or 30-pin version with available Lightning adapter) in applications such as music, voiceovers, and podcasting. The large diaphragm condenser Class-A circuit design is suitable for recording sounds such as vocals, drums, piano, speech, location sounds and more.

The microphone connects to your PC or Mac via USB or to your 30-pin or Lightning connector iPad using the supplied y-connector cables with integrated zero-latency monitoring headphone jacks. It utilizes a 16-bit 44.1 kHz analog-to-digital converter to record WAV and MP3 files on your computer or iPad using your DAW or recording application of choice. The front of the microphone body features on-board controls for volume, gain, and instant mute as well as an LED meter to provide visual feedback.

The microphone features a Focus Control switch for either increased low frequency sensitivity in normal/off mode or greater clarity and detail in the treble range when the Focus Control is engaged. This circuit is not a simple low-pass or high-pass filter, but rather a switch to change the voltage loading of the input driver for the microphone capsule itself. This provides for an output signal that is uncolored with different dynamic properties and a different frequency response to expand the versatility of the microphone. The unit comes with an adjustable desk stand with a built-in shockmount, a USB cable, and a Lightning cable. A 30-pin connector cable is available for older iOS devices (sold separately).
If you own a Blue usb and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITALDownload user manual for Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL
(PDF file, 3.89 MB)
Additional parameters of the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL:
Bit Depth 16-bit
Sample Rate 44.1 kHz
Transducer Condenser
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 84 dB
Equivalent Noise Level 10 dB A-Weighted
Maximum SPL 128 dB SPL
Sensitivity 28 mV/PA
Output Connectors USB
Operating Voltage 3.3 V
Windows System Requirements
Windows OS XP, Vista 32-bit, Vista 64-bit, 7 32-bit, 7 64-bit, 8, 8.1
Windows RAM 64 MB Minimum
Available Port USB
Mac System Requirements
Mac OS X 10.4 and Above
Mac RAM 64 MB Minimum
Available Port USB
iOS System Requirements
iOS Version 6 and later
Compatible Devices iPhone 4, iPhone 4S, iPhone 5, iPhone 5S, iPhone 5C, iPad, iPad 3rd generation, iPad 4th generation, iPad Air, iPad Mini 1, iPad Mini 2, iPad Mini 3, iPod touch 4th generation, iPod touch 5th generation
Available Ports 30-pin, Lightning
General
Length 7.76" (197.10 mm)
Diameter 1.77" (44.96 mm)
Weight 1.25 lb (567 g)
Packaging Info
Package Weight 3.55 lb
Box Dimensions (LxWxH) 10.0 x 9.9 x 5.2"
The user manual for the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL can be downloaded in .pdf format if it did not come with your new usb, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blue users keep a unique electronic library for Blue usbs, where you can use our link to download the user manual for the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL.

The user manual lists all of the functions of the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL, all the basic and advanced features and tells you how to use the usb. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blue service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blue Spark Digital Studio Condenser USB/Lightning SPARK DIGITAL. User manuals are also available on the Blue website under Pro Audio - Recording - USB.
