User manual for the Bogen Communications BOMDMU Messaging and Call Stacking BOMDMU

The user manual for the Bogen Communications BOMDMU Messaging and Call Stacking BOMDMU provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Message Announcers & Alerts.

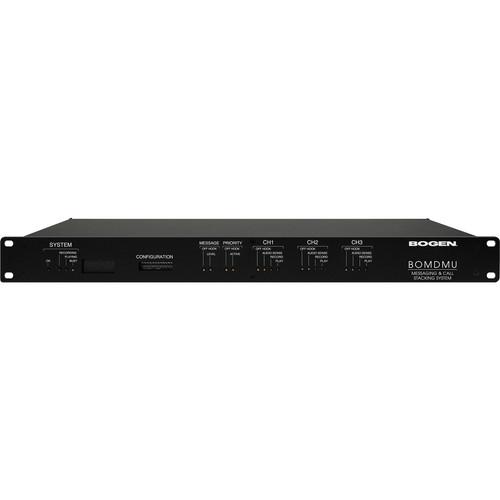

The BOMDMU Messaging and Call Stacking System from Bogen Communications combines page stacking, feedback elimination, pre-recorded messaging, and background music control in a single device. The feedback eliminator works by opening the loop between the input microphone and speakers. This eliminates the potential for acoustic feedback while giving the user flexibility in the way pages are broadcast. For busy overhead paging systems, the BOMDMU offers 3 channels of page stacking and feedback elimination. Each channel can record and temporarily store up to 16 pages or 4 minutes of audio. Page input channels can record simultaneously, as well as while the system is playing. For emergencies, this system offers a priority input that overrides the stacking and messaging functions and provides immediate, real-time access to the paging system. A pre-recorded messaging sub-system is included for security and general public address messaging. "Record" and "play" functions are accessible at up to 99 messages or 8 minutes of audio from an extension on your host telephone system. 10 start contracts are also provided to trigger messages from external devices such as sensors or alarm systems. The background music control allows playback from your music source over the paging system. When paging or messaging, the music fades to allow the announcement to be heard loud and clear.
If you own a Bogen Communications message announcers & alerts and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bogen Communications BOMDMU Messaging and Call Stacking BOMDMU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bogen Communications BOMDMU Messaging and Call Stacking BOMDMU:
Frequency Response 100 Hz - 8 kHz
Connectors 3 x RJ12, page input
1 x RJ12, priority input
1 x RJ12, messaging input
1 x RCA female, background music input
1 x RJ12, adjustable page output
1 x 24 pluggable Euro-style AUX interface
1 x 12 VDC barrel power plug
Switches Back Panel:
5 x 3-position station port/dry loop/loop start
1 x 2-position audio output impedance, 8 Ω power/600 Ω line level
Front Panel:
12 x DIP switch, configuration
Controls 1 x rotary level control, audio output
1 x rotary level control, background music input
LEDs System:
1 x LED green, Ok
1 x LED red, Recording
1 x LED green, Playing
1 x LED yellow, Busy
Message Input:
1 x LED yellow, Off Hook
1 x LED yellow, Level
Priority Input:
1 x LED yellow, Off Hook
1 x LED yellow, Active
Paging Input (Channels 1, 2, and 3):
3 x LED yellow, Off Hook
3 x LED yellow, Audio Sense
3 x LED red, Record
3 x LED green, Play
Power 12 VDC, 1 A
Chassis 1 RU rackmount
Material 18 gauge cold rolled steel, painted with silkscreen
Dimensions (W x H x D) 17.6 x 1.8 x 6.9" (44.8 x 4.5 x 17.5 cm)
Weight 7 lb (3.2 kg)
