User manual for the Bogen Communications CORE 4X12 - Universal Audio CORE4X12

The user manual for the Bogen Communications CORE 4X12 - Universal Audio CORE4X12 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

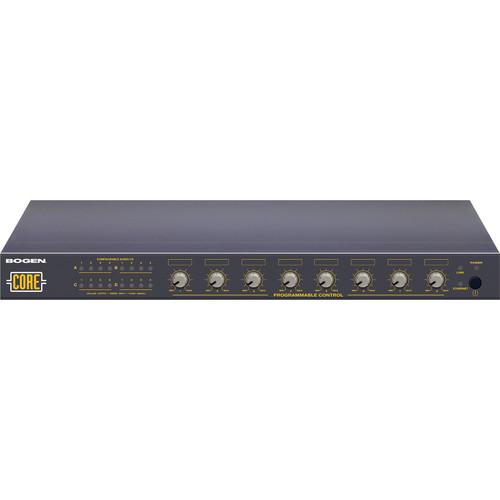

Designed for small to medium installations, The CORE 4X12 from Bogen Communications is a versatile drag-and-drop DSP processor. The processor consists of a configurable hardware main frame, along with dedicated DSP software. The hardware system configuration is highly flexible, with front panel knobs that can be programmed to map to any functions within the DSP library and can be scaled to match the requirements of the project.

The software system design is PC based and once connected, allows for design, downloading, reversal of in-box designs, and live monitoring, calibration, and routing. Third-party control systems such as Crestron, AMX, Vity and others can also control unit either via RS-232 or IP commands. Up to fifty-three minutes of audio storage is available and audio files can be activated via a built-in scheduler, any of sixteen TTL inputs, or via an end user GUI interface custom built for each application.

Up to twelve CORE units can be networked together for expandability. A variety of accessories, including low cost analog controllers (RAC), digital controllers (URC), and various paging and control microphones (PPM, PPM Touch) are available for use with the system.
If you own a Bogen Communications system processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bogen Communications CORE 4X12 - Universal Audio CORE4X12 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bogen Communications CORE 4X12 - Universal Audio CORE4X12:
Specifications
    Frequency Response 20 Hz to 20 kHz, +0/-0.6 dB @ +4 dBU
    Dynamic Range >105 dB
    Gain Maximum: 66 dB
    Input Range: 0 to 54 dB
    Crosstalk Line: <-78 db
    Microphone: <-73 dB
    Inputs 4 x Audio channels via balanced plug-in barrier strip connectors (programmable for line or microphone)
    Outputs 12 x Audio channels via balanced plug-in barrier strip connectors
    Input Impedance 8 kΩ
    Output Impedance 200 Ω
    Maximum Input Level +24 dBu
    Maximum Output Level +24 dBu
    Conversion A/D, D/A: 24-bit
    Sample Rate 48 or 96 kHz (selectable)
    Phantom Power +48V DC
    Power Requirements 100~240V AC, 50/60 Hz Consumption: <145 W
    System Requirements Computer running under Windows XP Professional,Vista, or Windows 7
    Dimensions (WxDxH) 17.1 x 11.6 x 1.75" (434 x 295 x 44 mm)
    Weight 8 lb (3.6 kg)
