User manual Bogen Communications DRZ35 4-Zone Music & Paging System

Operating instructions and pdf manual for use - Bogen Communications DRZ35 4-Zone Music & Paging System User manual, User manual Bogen Communications DRZ35 4-Zone Music & Paging System, Bogen, Communications, DRZ35, 4-Zone, Music, &, Paging, System


User manual for Bogen Communications DRZ35 4-Zone Music & Paging System

Bogen Communications DRZ35 4-Zone Music & Paging System
  • Manufacturer: Bogen Communications
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Tuners & A/V Receivers
  • Safety instructions
  • Startup and operation of the tuners & a/v receivers
  • Tips for setting up your Bogen Communications
  • Settings and expert assistance
  • Contact Bogen Communications service
  • Troubleshooting
  • Warranty information
  • Price: 427 USD
We recommend checking out our discussion threads on the Bogen Communications DRZ35 4-Zone Music & Paging System, which address similar problems with connecting and setting up Tuners & A/V Receivers Bogen Communications.



User manual for the Bogen Communications DRZ35 4-Zone Music & Paging System

The user manual for the Bogen Communications DRZ35 4-Zone Music & Paging System provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Tuners & A/V Receivers.

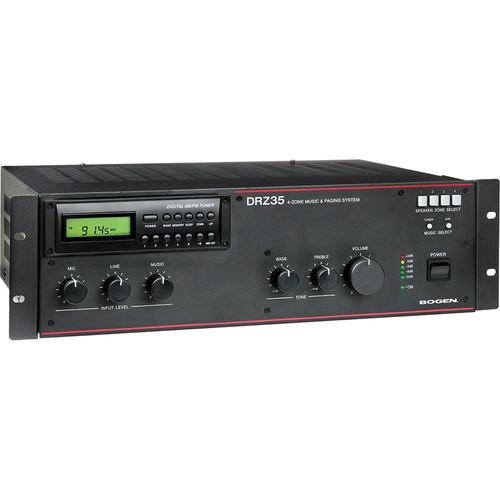

The Bogen Communications DRZ35 4-Zone Music & Paging System is a 35 watt amplifier with an AM/FM tuner for 25 volt and 70 volt commercial audio systems. The DRZ35 is the ideal front-end to any commercial audio paging system, supplying background music to four separate zones with its AM/FM tuner. There are also microphone, line and auxiliary inputs for connecting additional gear. The DRZ35 is at home in commercial retail spaces, bars, restaurants and more.
If you own a Bogen Communications tuners & a/v receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bogen Communications DRZ35 4-Zone Music & Paging System in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bogen Communications DRZ35 4-Zone Music & Paging System:
Specifications
    Amplifier
    Power Rating 35 Watts
    Distortion <1% Rated output power@1 kHz
    Signal-to-Noise Ratio MIC: -55 dB LINE/AUX: -70 dB
    Frequency Response 70 Hz - 15 kHz (25/70V)
    20 Hz -20 kHz (4Ω)
    Phantom Power 21V (switch-enabled)
    Connections Microphone Input: 750 μV/1k-ohm balanced (3-pin XLR connector)
    LINE and AUX Inputs: 80 mV/10k-ohm unbalanced; RCA jack
    Booster Amp Output: 50Ω /Pre (1V), Post (4V); RCA jack
    Line Output: 50Ω / (1V); RCA jack
    EQ Section Bass: +/-10 dB @ 100 Hz
    Treble: +/-10 dB @ 10 kHz
    Tuner
    Tuner Type Digital, pushbutton, with PLL Synthesizer
    Band AM: 522 to 1620 kHz
    FM: 87.5 to 108 MHz
    Antenna 75Ω coaxial, 300Ω screw, AM Loop screw
    Memory Preset Memory: 10 FM, 10 AM
    Memory Scan: Preset stations
    Display Backlit, LCD
    General
    Power Power Required: 120V AC nominal @ 60 Hz
    Power Consumption: 98W
    Dimensions (WxHxD) 17 x 5-1/4 x 13-5/8"
    Weight 27 lbs
    Packaging Info
    Package Weight 23.8 lb
    Box Dimensions (LxWxH) 21.7 x 16.6 x 7.9"
    The user manual for the Bogen Communications DRZ35 4-Zone Music & Paging System can be downloaded in .pdf format if it did not come with your new tuners & a/v receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bogen Communications users keep a unique electronic library for Bogen Communications tuners & a/v receiverss, where you can use our link to download the user manual for the Bogen Communications DRZ35 4-Zone Music & Paging System.

    The user manual lists all of the functions of the Bogen Communications DRZ35 4-Zone Music & Paging System, all the basic and advanced features and tells you how to use the tuners & a/v receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bogen Communications service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bogen Communications DRZ35 4-Zone Music & Paging System. User manuals are also available on the Bogen Communications website under Pro Audio - Installation Sound - Tuners & A/V Receivers.
