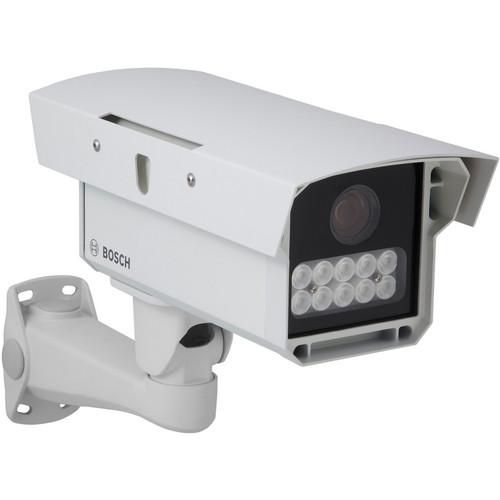

The DINION capture 5000 Analog License Plate Camera (NTSC) from Bosch captures detailed and reliable images of vehicle license plates, and is ideal for use in parking lots, public places, and freeways. The camera's DINION 2X technology, along with the 20-bit digital signal processing, helps this IP camera achieve great clarity levels by capturing the tiniest details in the recorded images. With its ability to record images of vehicles moving as fast as 140 mph (225 kmph), this camera proves highly efficient for monitoring and enforcing speed limits on freeways.
If you own a Bosch wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch DINION capture 5000 Analog License Plate F.01U.245.593 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch DINION capture 5000 Analog License Plate F.01U.245.593:
Specifications
    Camera
    Image Sensor 1/3" CCD, monochrome
    Lens 5 to 50 mm varifocal, calibrated to optimal capture distance
    Active Pixels 768 x 494 (NTSC)
    Operational Range 26 to 45' (7.9 to 13.7 m)
    IR Illumination Pulsed LED array, 850 nm
    Nominal Plate Width North America: 110 pixels
    Europe: 130 pixels

    With 4CIF encoding at optimal capture distance
    Usable Plate Width North America: 80 to 140 pixels
    Europe: 100 to 170 pixels

    With 4CIF encoding over capture range
    Maximum Capture Speed 140 mph (225 kmph)

    The camera mounting angle should be 30°
    Mode Switch Automatic; Adjustable switch point depending on ambient light levels, mode selectable
    Horizontal Resolution 540 TVL
    Video Output Composite video 1 Vpp, 75 ohm
    Synchronization Internal only
    Auto Black Automatic continuous, Off
    Dynamic Range 120 dB (20-bit image processing)
    Noise Reduction Auto, On/off selectable
    Sharpness Sharpness enhancement level selectable
    Automatic Gain Control On / Off (0 to 30 dB) selectable
    Cable Compensation Up to 3000' (1000 m) coaxial without external amplifiers (automatic set-up in combination with Bilinx coaxial communication)
    Camera ID 17 character editable string, position selectable
    Test Pattern Generator Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane
    Modes 6 preset programmable modes
    Remote Control Bilinx coaxial bi-directional communication
    Video Motion Detection 1 fully programmable area
    Privacy Masking 4 fully programmable independent areas
    Controls OSD operation (multilingual)
    Electrical
    Input Voltage 11 to 30 VDC or 24 VAC ± 10%
    Power Consumption All models 22 W (maximum)

    12 VDC: 20 W, typical at -40°C (-40°F)
                   13 W, typical at 20°C (68°F)

    24 VAC: 18 W, typical at –40°C (–40°F)
                   11 W, typical at 20°C (68°F)

    User Connection
    Power Two-wire flying leads
    Video and Control BNC
    Certifications and Approvals
    Electromagnetic Compatibility Emission: EN 55022 Class A
                     FCC Part 15, Class A

    Immunity: EN 50130-4

    Safety EN 60065
    UL 60065
    CAN/CSA E60065
    Vibration EN 60068-2-6, EN 60068-2-64
    Shock EN 60068-2-27
    Environmental
    Rating IP67 weatherproof, Type 4X (NEMA 4X)
    Cold Start –40°F (–40°C), typically requires a 15 minute warm up prior to operation
    Humidity 0 to 100% relative, condensing
    Wind Velocity Resistance 90 mph (144 kmph)
    Operating Temperature 11 to 30 VDC or 24 VAC: –40 to 122°F (–40 to 50°C)
    Storage Temperature –40 to 158°F (–40 to 70°C)
    Mechanical
    Construction Housing - Weather-sealed aluminum casting and extrusion
    Window - Borosilicate
    Dimensions (HxWxL) 13.3 x 6.1 x 5.5" (340 x 154 x 139 mm), housing with sunshield
    Weight 9.7 lb (4.4 kg)
    The user manual for the Bosch DINION capture 5000 Analog License Plate F.01U.245.593 can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch wired analog & hd camerass, where you can use our link to download the user manual for the Bosch DINION capture 5000 Analog License Plate F.01U.245.593.

    The user manual lists all of the functions of the Bosch DINION capture 5000 Analog License Plate F.01U.245.593, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch DINION capture 5000 Analog License Plate F.01U.245.593. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
