User manual for the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634

The user manual for the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

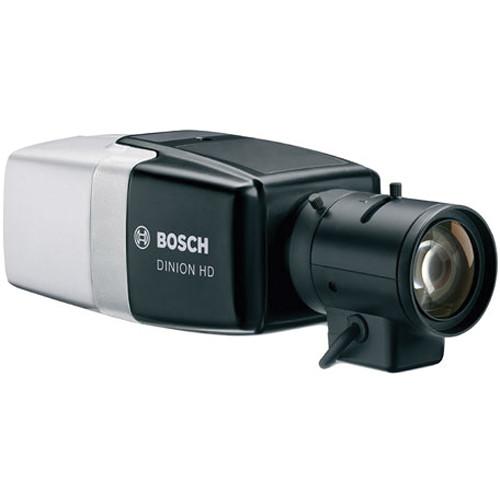

The Bosch NBN-71013-BA DINION IP starlight 7000 HD Day/Night IP Box Camera with IVA captures 720p HD images at 60 ips. The camera offers IP video and simultaneously outputs analog video via an SMB connector. This hybrid functionality offers an easy migration path from an analog CCTV to IP-based system. The camera features a mechanical filter that allows it to capture images in color with illumination as low as 0.017 lux and in B&W up to 0.0057 lux. The filter can be switched remotely, or automatically via a light level sensor or contact input.
If you own a Bosch wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634:

Go To

Sensor
Type 1/3" CMOS
Pixels 1312 x 1069 (1.4 MP)
Video
Video Performance Sensitivity - (3200 K, reflectivity 89%, 1/60 sec shutter time, F1.2, 30 IRE)
Color: 0.017 lux (0.0017 fc)
Mono: 0.0057 lux (0.00057 fc)
Dynamic Range: 84 dB WDR, 100 dB WDR (with iAE)
Video Compression H.264 (MP); M-JPEG
Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth, Regions of Interest (ROI)
Overall IP Delay Minimum: 120 ms
Maximum: 240 ms
GOP Structure IP, IBP, IBBP
Encoding 1 to 60 (50) ips
Video Resolution 720p HD: 1280 x 720
1024p 5:4 (cropped): 1280 x 1024 (30p maximum, no IVA)
Upright 9:16 (cropped): 400 x 720
D1 4:3 (cropped): 704 x 480
480p SD: 704 x 480 (encoding), 854 x 480 (displayed)
432p SD: 768 x 432
288p SD: 512 x 288
240p SD: 352 x 240 (encoding), 432 x 240 (displayed)
144p SD: 256 x 144
Audio
Streaming Full duplex / half duplex
Signal-to-Noise Ratio >50 dB
Compression AAC-LC, G.711, L16 (live and recording)
Input / Output
Analog Video Output CVBS (PAL/NTSC), 1 Vpp, SMB, 75 Ω (surge protected)
Aspect Ratio 4:3 letterbox, 4:3 cropped, or 16:9 mode
Audio 1 x mono line in, 1 x mono line out
Audio Connector 3.5 mm stereo jack
Signal Signal Line Input: 12 kΩ typical, 1 Vrms maximum
Signal Line Output: 1 Vrms at 1.5 kΩ typical
Alarm 2 x inputs
Connector: Clamp (non-isolated closing contact)
Activation Voltage: 5 to 40 VDC (3.3 VDC with DC-coupled 22 kΩ pull-up resistor)
Relay Output 1 x output
Connector: Clamp
Voltage 30 VAC or 40 VDC, maximum 0.5 A continuous, 10 VA
Data Port RS‑232/422/485
Local Storage
Memory Card Slot Supports up to 32 GB SDHC / 2 TB SDXC card (sold separately)

An SD card of class 6 or higher is recommended for HD recording
Recording Continuous recording, ring recording alarm / events / schedule recording
Software Controls
Unit Configuration Via web browser or configuration manager
Firmware Updates Remotely programmable
Remote Viewing Options Web browser, Bosch Video Client, or third party software
Optical
Lens Mount CS mount (C-mount with adapter ring)
Lens Connector Standard 4-pin DC-iris connector
Lens Type Manual and DC-Iris auto-detect with override DC-iris drive, maximum 50 mA continuous
Lens Control Wizard from web page or camera button
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
Encryption TLS 1.0, SSL, DES, 3DES, AES (optional)
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity ONVIF Profile S, Auto-MDIX
General Specifications
Day & Night Color, monochrome, auto
White Balance ATW (2500 to 10000 K), ATWhold and manual
Shutter Automatic Electronic Shutter (AES), fixed (1/30 (1/25) to 1/15000) selectable, default shutter
Backlight Compensation Off / On / iAE (BLC)
Contrast Enhancement On/off
Noise Reduction Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments
Sharpness Sharpness enhancement level selectable
Privacy Masking Four independent areas, fully programmable
Video Motion Analysis Intelligent Video Analysis (IVA)
Electrical
Power Supply 24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet: 48 VDC nominal
Current Consumption 12 VDC: 500 mA
24 VAC: 450 mA
PoE 48 VDC: 175 mA
Power Consumption 12 VDC: 6 W
24 VAC: 10.8 W
PoE 48 VDC: 8.4 W
PoE IEEE 802.3af (802.3at Type 1)
Environmental
Temperature Operating: -4 to 122°F (-20 to 50°C)
Storage: -22 to 158°F (-30 to 70°C)
Humidity Operating: 20 to 93% RH
Storage: up to 98% RH
Certifications and Approvals
Standard HD Standards: Complies with the 296M-2001 Standard in
Resolution 1280 x 720
Scanning Progressive
Color Complies with ITU-R BT.709
Aspect Ratio 16:9
Frame Rate 50/60 fps
Standards
Emission EN 55022 Class B FCC Part 15, class B
Immunity EN 50130-4 (PoE, +12 VDC, 24 VAC) EN 50121-4
Safety EN 60950-1, UL 60950-1 (2nd edition), CAN/CSA-C 22.2 No. 60950-1
Vibration Camera with lens as per IEC60068-2-6 (5 m/s2, operational)
ONVIF Conformance EN 50132-5-2; IEC 62676-2-3
Certification Europe: CE
USA: UL
Canada: ULC
Mechanical
Color RAL 9007 metallic titanium
Tripod Mount Bottom (isolated) and top 0.25" (6.35 mm) 20 UNC
Dimensions (WxHxL) 3.1 x 2.6 x 5.5" (7.8 x 6.6 x 14.0 cm) without lens
Weight 1.5 lb (0.7 kg) without lens
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 7.7 x 3.9 x 3.8"
The user manual for the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch wired ip camerass, where you can use our link to download the user manual for the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634.

The user manual lists all of the functions of the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch NBN-71013-BA DINION IP starlight 7000 HD F.01U.291.634. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Wired IP Cameras.
