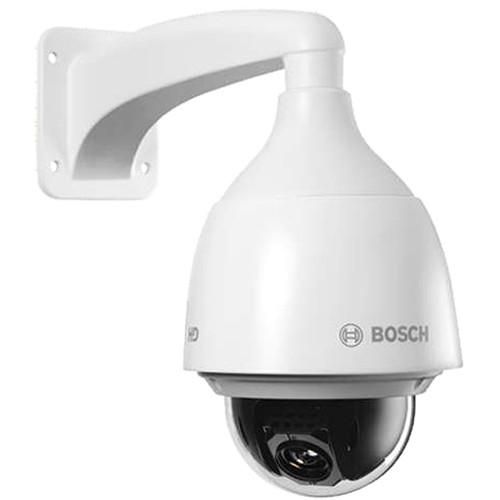

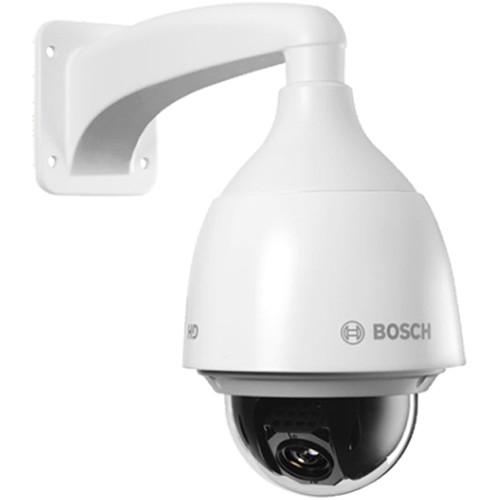

Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159 Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159
Click to enlarge image
We recommend checking out our discussion threads on the Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159, which address similar problems with connecting and setting up Wired IP Cameras Bosch.


User manual for the Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159

The user manual for the Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The white NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP Camera from Bosch is a compact, outdoor PTZ dome camera with 2MP HD sensor and a 30x optical zoom that allows operators to monitor wide scenes without losing any details. The camera uses robust algorithms to ensure the subject stays in full focus when the camera is zooming in or tracking, to assist security staff in identifying activity details in the scene. The 30x zoom lens with 2MP resolution ensures a sufficient magnification ratio to identify people easily from a distance of up to 623'. The AUTODOME IP camera, in combination with the Video Security App from Bosch, makes it easier for you to stay in control of your security even when you're on the go. With the camera's built-in Dynamic Transcoding technology, you can easily stream high-resolution H.264 video, pan/tilt/zoom the camera, and search recorded clips remotely through mobile devices such as smart phones or tablets, all on a low-bandwidth network connection.
If you own a Bosch wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch NEZ-5230-EPCW4 AUTODOME IP 5000 HD 30x 2MP F.01U.303.159:
Specifications
Image & Video
Imager 1/2.8" progressive scan CMOS
Resolution 1080p (1920 x 1080); 720p (1280 x 720); D1 (704 x 576 / 704 x 480)
Total Image Sensor Pixels 2.48 MP
Effective Pixels (H x V) 1344 x 745
Lens Focal Length 4.3 to 129 mm (f/1.6 to 5.0)
Optical Zoom 12x
Digital Zoom 16x
Field of View 2.3° to 65°
Focus Automatic with manual override
Iris Automatic
Minimum Illumination @30 IRE:
Color: 0.22 lux with SensUp Off; 0.04 lux with SensUp On (1/7.5)
B/W: 0.044 lux with SensUp Off; 0.008 lux with SensUp On (1/7.5)

@50 IRE:
Color: 0.35 lux with SensUp Off; 0.08 lux with SensUp On (1/7.5)
B/W: 0.07 lux with SensUp Off; 0.016 lux with SensUp On (1/7.5)
Compression H.264 (ISO/IEC 14496-10); M JPEG
WDR Control 76 dB (DWDR)
Signal-to-Noise Ratio >50 dB (AGC Off)
Noise Reduction Intelligent DNR
BLC On/Off
Defog Intelligent defog
White Balance Standard Auto, Sodium Vapor Auto, Basic Auto, Manual, Hold, Dominant Color Auto
Day/Night Mechanical switchable IR filter (Auto/On/off) Monochrome
Audio
Compression G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC, 16 kHz sampling rate
Interface 1 x In; 1 x Out
Network
Frame Rate 1 to 25/30 fps
Streaming Capability Quad stream (2 x H.264, 1 x MJPEG, 1 x iFrame only)
Supported Profiles Recording:
H.264 MP SD; H.264 MP 720p fixed; H.264 MP 1080p fixed
2 x Streams, I-frame only
Ethernet 10/100BASE-T
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1,MIB II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com),SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),LLDP, SOAP, Dropbox, CHAP, digest authentication
Interoperability ONVIF Profile S; GB/T 28181
Mechanical
Pan/Tilt Modes Normal:
1 to 120°/s

Turbo:
Pan: 1 to 300°/s
Tilt: 1 to 200°/s
Preset Speeds Pan: 300°/s
Tilt: 200°/s
Pan Range 360° continuous
Tilt Range 0° to ±90°
Preset Accuracy ±0.2° typical
Presets 256
Tours Recorded and preset tours
Connections
Power Network: RJ45 (10/100BASE-T)
Camera: 24 VAC
Alarm Inputs 2
Electrical
Input Voltage 24 VAC and POE+
Power Consumption 24 VAC: 12 W
POE+: 12 W
General
Sectors/Titling 16 independent sectors with 20 characters per title
Privacy Masking 24 individually configurable privacy masks
Video Analytics MOTION+
Supported Languages English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese (simplified)
Rating IP66; IK10
Operating Temperature 24 VAC: -40 to 140°F (-40 to 60°C)
POE+ : -4 to 140°F (-20 to 60°C)
Humidity Less than 90% RH
Storage Temperature -40 to 140°F (-40 to 60°C)
Construction Material Housing: Aluminum
Sunshield: Outdoor grade plastic
Bubble: Polycarbonate
Dimensions Without Sunshield: 7.5 x 12.0" (19.0 x 30.4 cm)
With Sunshield: 8.15 x 12.0" (20.7 x 30.4 cm)
Weight 5.8 lb (2.6 kg) without sunshield; 6.0 lb (2.7 kg) with sunshield
Packaging Info
Package Weight 9.45 lb
Box Dimensions (LxWxH) 17.4 x 10.5 x 10.3"
