User manual for the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937
The user manual for the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Mixer/Amplifiers.

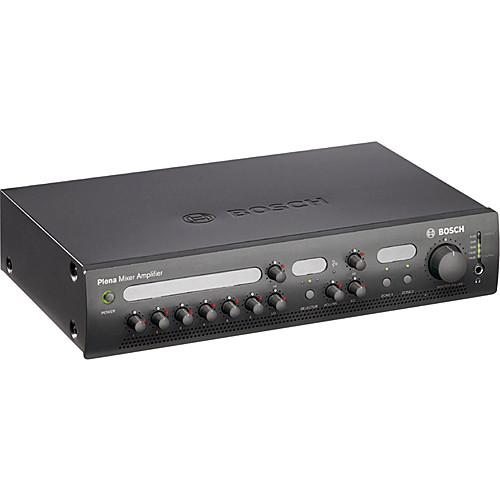

The Bosch PLE-2MA240 Plena Mixer Amplifier is intended to provide 2-zone operations and high output power for background audio PA and commercial audio installations. The amplifier delivers 240 watts of power and 6 microphone / line input channels. The interface is straightforward, making it easy for anyone to operate. The PLE-1MA240 Plena Mixer features adjustable talk over functions for paging applications, and separate volume control for the dedicated music channels. The Bosch PLE-2MA240 Plena Mixer Amplifier is a cost effect, ideal solution for use in retail stores, commercial offices, halls and more.
If you own a Bosch mixer/amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937:
Specifications
Power Supply
Voltage: 115 - 230 VAC ±10%, 50/60 Hz Speech filter -3 dB @ 315 Hz, high-pass, Inrush: 9/19A (230/115VAC)Battery Power Supply Voltage 24 VDC, +10% / -15% 12 A Charge current 0.5 ADC Charge float voltage 27.3 VDCtime 2 s
Power Consumption
800VA
Frequency Response
50Hz to 20kHz (+ 1/-3dB @ -10dB ref. rated output)
Distortion
> 1% @ rated output power, 1kHz
Tone Control
Bass: Max -12/+12dB (frequency is setting dependent) Treble: Max -12/+12dB (frequency is setting dependent)
Inputs
Mic/line input 6x Input 1 (Push-to-talk contact with ducking functionality) 5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantom Input 2-6 (VOX with ducking functionality on input 2) 3-pin XLR, balanced, phantomMusic inputs 3x Cinch, stereo converted to monoEmergency / Telephone 1x Connector 7-pin, Euro style pluggable screw terminal
Sensitivity
Mic/Line: 1 mV (mic); 1 V (line) Music Inputs: 300mVEmergency / Tel: 1V max (tel), 100V max (100V0
Signal to Noise Ratio
Mic/Line Input: 63dB (flat at max volume), >5dB (flat at min volume/muted) Music Inputs: > 70dB (flat at max volume), > 75dB (flat at min volume/muted)
The user manual for the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937 can be downloaded in .pdf
format if it did not come with your new mixer/amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Bosch users keep a unique electronic library
for Bosch mixer/amplifierss,
where you can use our link to download the user manual for the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937.
The user manual lists all of the functions of the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937,
all the basic and advanced features and tells you how to use the mixer/amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Bosch service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Bosch PLE-2MA240 Plena Mixer Amplifier F.01U.066.937. User manuals are also
available on the Bosch website under Pro Audio - Installation Sound - Mixer/Amplifiers.
