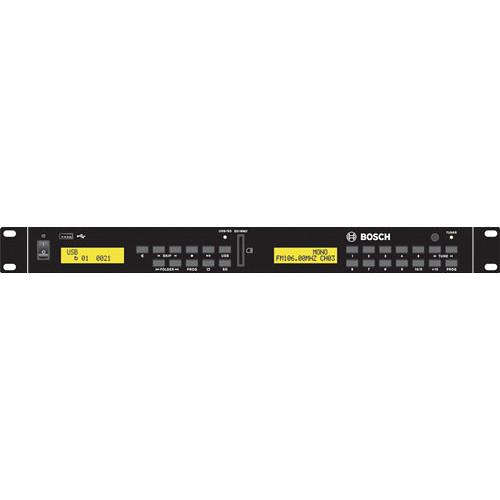

The Bosch PLE-SDT Plena Easy Line SD Tuner Background Music Source is a dual output FM Tuner and SD/USB audio player designed for playing background music over public address systems. Typical public address applications for the device include bars, gyms, showrooms, restaurants, supermarkets, hotels, shops, and many others.

The player accepts SD cards up to 32GB in capacity and can hold up to 2000 tracks. The tracks may be stored in multiple folders, and the device can be set to play randomly or on repeat. The files can be mono, stereo, or joint stereo MP3s with a constant bit-rate (CBR) or variable bit-rate (VBR) of 32 to 320 kbps.

The FM radio tuner utilizes a frequency synthesizer to capture radio stations and includes presets for saving your favorite stations. An antenna may be connected to the device to improve its reception. Both the FM radio tuner and the SD/USB MP3 player may operate simultaneously on separate outputs. A combined output will immediately switch over to the FM tuner when the last MP3 has finished playing. The tuner, USB/SD, and combined outputs all utilize RCA connections. The volume for the outputs is controlled from the rear panel, or by the included infrared remote control.
If you own a Bosch tuners & a/v receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch PLE-SDT Plena Easy Line SD Tuner Background F.01U.252.620 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch PLE-SDT Plena Easy Line SD Tuner Background F.01U.252.620:
Connections Tuner Output: 1 x RCA
USB/SD Output: 1 x RCA
Combined Output: 1 x RCA
USB Input: 2 x USB 2.0 standard A 4-pin socket
SD/MMC: 1 x SD card socket
Antenna: 1 x 75 Ω FM tuner antenna input socket
Controls 1 x Power switch
1 x USB/SD Mute button
2 x Skip buttons
2 x Folder buttons
1 x Stop button
1 x Program button
1 x Replay/pause button
1 x Repeat
1 x USB Source Button
1 x SD Source Button
10 x Radio frequency preset select buttons for presets 1-10
1 x Radio frequency preset group button for presets 11-30
1 x IR receiver lens for remote control
1 x -50 kHz radio scanning button
1 x +50 kHz radio scanning button
1 x Radio frequency program button for saving presets
1 x 115/240 V switch
Displays 1 x USB/SD LCD with Backlight
1 x FM Tuner LCD with Backlight
1 x On/Off USB/SD source LED indicator
1 x On/Off FM Tuner LED indicator
FM Section
Distortion < 1%
Total Harmonic Distortion (THD) < 0.8% at 1 kHz
Range 87.5 to 108 MHz
Frequency Response 50 to 12000 Hz
Channel Separation ≥ 40 dB at 1 kHz
IF Rejection ≥ 70 dB
Signal to Noise Ratio ≥ 50 dB
IF Frequency 10.7 MHz
Input Sensitivity 6 μV e.m.f. (2 uV)
Auto Scan Sensitivity ≤ 50 μV
Antenna Input Impedance 75 Ω (coaxial)
Output Level - 10 dBV
Music Playback
Compatibility SDHC and MMC memory cards
USB flash sticks
Bus powered 2.5" Hard Disk Drives (HDD) over USB
Storage Capacity 32 GB
File Format FAT32
Number of Tracks 2000
Frequency Response 50 to 20,000 Hz
Signal to Noise Ratio ≥ 70 dB
Total Harmonic Distortion < 0.1% at 1 kHz
Stereo Separation ≥ 60 dB
Analog Output Levels - 10 dBV
Audio Output Level 1.5 Vrms ±1 dB
General
ENVIRONMENTAL Operating temperature: 0 to 45 °C
Storage temperature: -40 to 70 °C
Relative humidity: <90% (non condensing)
Safety According to IEC/EN 60065
CCC
C-Tick
CE EN 55013+A1+A2
EN 61000-3-2
EN 61000-3-3+A1
2006/95/CE EMC
2004/108/CE EMC
IEC EN55020+A2+EC
CE marking
Power Consumption (max) 50 VA
Power Consumption (Operating) 10 W typical
Voltage 115-230 VAC ±10% at 50/60 Hz
Fuses 230 VAC 0.63 AT / 250 V
120 VAC 1.25 AT / 250 V
Mounting Stand-alone
19" rack (19" wide, 1U high)
Dimensions (H x W x D) 1.73 x 17.48 x 9.84" (44 x 444 x 250 mm)
Weight Approximately 7.9 lb (3.6 kg)
Packaging Info
Package Weight 9.7 lb
Box Dimensions (LxWxH) 20.866 x 14.567 x 4.331"
