User manual BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD

Operating instructions and pdf manual for use - BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD User manual, User manual BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD, BrickHouse, Security, Camscura, Micro, Hidden, Camera, 2


User manual for BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD
  • Manufacturer: BrickHouse Security
  • Basic description and contents of package
  • Product classification: Surveillance - Hidden Cameras
  • Safety instructions
  • Startup and operation of the hidden cameras
  • Tips for setting up your BrickHouse Security
  • Settings and expert assistance
  • Contact BrickHouse Security service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD, which address similar problems with connecting and setting up Hidden Cameras BrickHouse Security.



User manual for the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD

The user manual for the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD provides necessary instructions for the proper use of the product Surveillance - Hidden Cameras.

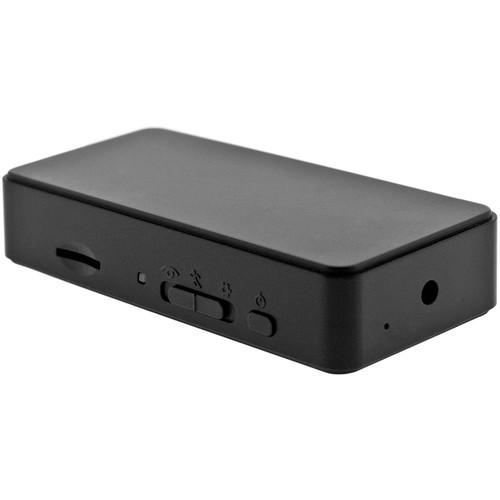

The BrickHouse Security Camscura Micro Hidden Camera is designed to be easily hidden in common home or office items, such as cereal boxes and tissue boxes. The Camscura Micro captures video in high definition 720p resolution and has a 10-hour battery life and recording time. It also provides the benefit  of discreet size, measuring only 3.5" long.

You can set the camera to record upon detection of motion, vibration, or sound, as well as continuously or at a specific time. It has a built-in microphone for detecting sound to trigger video recording, but due to federal regulations it does not record audio. All videos are time-stamped for better record keeping.

The Camscura Micro records to microSD cards up to 64GB in capacity, and you can offload your recordings to your computer via an included USB cable. MicroSD cards are sold separately.

A USB power adapter is included for charging the camera battery, and alternatively, for providing continuous power to the camera. It can also be used to allow the camera to record for much more than 10 hours. The Camscura Micro is capable of recording one hour of video per 1GB of storage space if you select the lowest recording frame rate. If the power adapter is used to provide constant power, then the camera can record for as long as there's space on your microSD card — 64 hours if you use a 64GB card. So if you can find a way to conceal the wires of the power adapter, you can keep it plugged in at all times.

The recording frame rate, recording resolution, day and night recording modes, and several other settings are all selectable via free-download software available to you on BrickHouse's website.
If you own a BrickHouse Security hidden cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD:
Specifications
    Recording Resolution 1280 x 720p HD or 640 x 360p
    Sensor Sensitivity 1.25 V / lux-sec
    Viewing Angle 62°
    Supported Media MicroSD card up to 64 GB
    Memory Usage 15 minute/GB (at high frame rate)
    1 hour/GB (at low frame rate)
    Recording Time 10 hours max because the battery lasts 10 hours
    Video Compression JPEG
    File Format AVI
    Supported OS Windows 2000, XP, Vista, 7, 8
    Mac OS X
    Audio None
    Microphone Built-in speech-grade microphone detects sound in order to trigger video recording, but no sound is recorded
    Power 1200 mAh, 3.7 V Li-ion battery
    5 V, 600 mA DC adapter with mini USB out
    Current Consumption 100 mA
    Standby Time 90 days max (when set to vibration activated power save mode with fully charged battery)
    Operating Temperature 32 to 113degF (0 to 45°C)
    Storage Temperature 32 to 113°F (0 to 45°C)
    Dimensions 3.5 x 0.7 x 1.7" (8.9 x 1.8 x 4.3 cm)
    Packaging Info
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 5.2 x 3.9 x 2.5"
    The user manual for the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD can be downloaded in .pdf format if it did not come with your new hidden cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BrickHouse Security users keep a unique electronic library for BrickHouse Security hidden camerass, where you can use our link to download the user manual for the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD.

    The user manual lists all of the functions of the BrickHouse Security Camscura Micro Hidden Camera 255-BBMHD, all the basic and advanced features and tells you how to use the hidden cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BrickHouse Security service.
