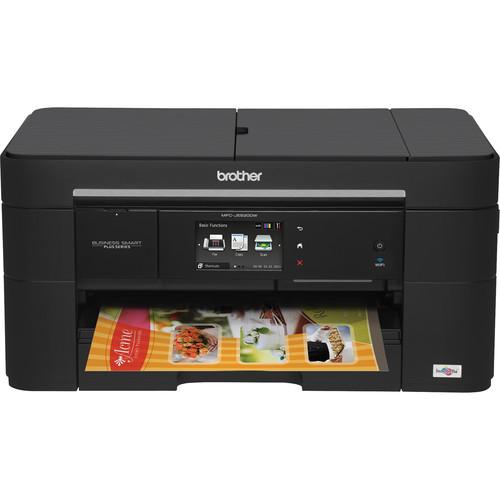

User manual Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW

Operating instructions and pdf manual for use - Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW User manual, User manual Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW, Brother, MFC-J5520DW, Business, Smart, Plus, All

User manual for Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW
  • Manufacturer: Brother
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Inkjet Printers
  • Safety instructions
  • Startup and operation of the inkjet printers
  • Tips for setting up your Brother
  • Settings and expert assistance
  • Contact Brother service
  • Troubleshooting
  • Warranty information
  • Price: 175 USD
We recommend checking out our discussion threads on the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW, which address similar problems with connecting and setting up Inkjet Printers Brother.


User manual for the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW

The user manual for the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Inkjet Printers.

With a Fast Mode offering print speeds of 35 ppm in black and 27 ppm in color as well as the ability to produce 11 x 17" documents, the MFC-J5520DW Business Smart Plus All-in-One Inkjet Printer from Brother will improve productivity. This inkjet printer features scanning, copying, and faxing capabilities for further enhancing the workflow of a home or small office. The primary feature, printing, is possible at a maximum resolution of 6000 x 1200 dpi and automatic duplex and borderless prints are possible at sizes up to 8.5 x 11".

Scanning and copying benefit from the inclusion of both a flatbed with an optical resolution of 2400 x 2400 dpi and a 35-sheet ADF for multi-page documents. This resolution can be interpolated up to a maximum of 19200 x 19200 dpi for detailed images. Copying with the MFC-J5520DW is fast with rates of 12 ppm in black or 9 ppm in color.

General paper handling is done through the use of a front-loading 250-sheet input tray, 80-sheet multi-purpose tray, or a single-sheet bypass. For ease of use the printer has a 3.7" swipe LCD touchscreen that allows users to view and adjust settings with ease. USB 2.0, Ethernet, and Wi-Fi connectivity options are available.
If you own a Brother inkjet printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DWDownload user manual for Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW
(PDF file, 18.54 MB)
Additional parameters of the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW:
Specifications
    Printer
    Printing Technology 4-color inkjet
    Maximum Resolution 6000 x 1200 dpi
    Print Speed Black: 35 ppm
    Color: 27 ppm
    ISO Black: 22 ppm
    ISO Color: 20 ppm
    Duplex Printing Yes, up to 8.5 x 11.0" (21.6 x 27.9 cm)
    Minimum Ink Droplet Size 1.5 pl
    Ink Palette Cyan, magenta, yellow, black
    Ink Cartridge Configuration 4 individual cartridges
    Compatible Ink Cartridges Innobella LC203BK High-Yield Black Ink Cartridge (550 pages)
    Innobella LC203C High-Yield Cyan Ink Cartridge (550 pages)
    Innobella LC203Y High-Yield Yellow Ink Cartridge (550 pages)
    Innobella LC203M High-Yield Magenta Ink Cartridge (550 pages)
    Innobella LC209BK Super High-Yield Black Ink Cartridge (2400 pages)
    Innobella LC207C Super High-Yield Cyan Ink Cartridge (1200 pages)
    Innobella LC207Y Super High-Yield Yellow Ink Cartridge (1200 pages)
    Innobella LC207M Super High-Yield Magenta Ink Cartridge (1200 pages)
    Printer Duty Cycle Monthly: 30,000 pages
    Recommended Monthly Volume: 250-1,500 pages
    Maximum Print Size 11 x 17" (27.9 x 43.2 cm)
    Scanner
    Type Flatbed, ADF
    Image Sensor Contact Image Sensor (CIS)
    Optical Resolution Flatbed: 2400 x 2400 dpi
    ADF: 1200 x 2400 dpi
    Interpolated Resolution 19200 x 19200 dpi
    Color Color or black & white
    Scan Area Flatbed: 8.5 x 11.7" (21.6 x 29.7 cm)
    ADF: 8.5 x 14.0" (21.6 x 35.6 cm)
    Scan File Format TIFF, JPEG, BMP, MAX, HTM, PCX, DCX, PNG, FPX, PDF
    Scanner Features Scan to email, image, FTP, OCR, media cards, file, USB drive, email server, and network
    Fax
    Modem Speed 33.6 Kbps
    Transmission Speed 3 sec per page
    Transmission/Reception Memory 200 pages
    Modem Hi-Speed Super G3
    Fax Broadcasting 250 locations
    Fax Features PC-fax (black & white), caller ID, distinctive ring ready, out-of-paper reception (200 pages), external TAD interface, fax/telephone switch, document memory backup (24 hours)
    Copier
    Copy Speed ISO Black: 12 ppm
    ISO Color: 9 ppm
    Copy Resolution 1200 x 1200 dpi
    Reduction/Enlargement 25-400% in 1% increments
    Duplex Copying Yes
    Copy Features Standalone copying, sorting function, 2-in-1, 2-in-1 (ID), 4-in-1, poster function, ID copy
    Media Handling
    Paper Handling Input tray
    Manual feed
    Multi-purpose tray
    Automatic document feeder
    Output tray
    Paper Sizes Input Tray: Letter, executive, envelope (Com-10, DL envelope, Monarch), A4, A5, A6; Photo 4 x 6" (10.2 x 15.2 cm), 3.5 x 5.0" (8.9 x 12.7 cm), 5.0 x 7.0" (12.7 x 17.8 cm), 5.0 x 8.0" (12.7 x 20.3 cm); Custom: 3.5 x 5.0" to 8.5 x 11.0" (8.9 x 12.7 cm to 21.6 x 27.9 cm)
    Manual Feed: 3.5 x 5.0" to 11.0 x 17.0" (8.9 x 12.7 cm to 27.9 x 43.2 cm)
    ADF: 5.8 x 5.8" to 8.5 x 14.0" (14.7 x 14.7 cm to 21.6 x 35.6 cm)
    Paper Weight Input Tray: 17-58 lb
    Manual Feed: 17-58 lb
    ADF: 17-24 lb
    Borderless Photo Sizes Up to 8.5 x 11.0" (21.6 x 27.9 cm)
    Paper Capacity Input Tray: 250 sheets
    Multi-Purpose Tray: 80 sheets 8.5 x 11" (21.6 x 27.9 cm) or 5 sheets 11 x 17" (27.9 x 43.2 cm)
    Manual Feed: 1 sheet
    ADF: 35 sheets
    Output Tray: 50 sheets
    Connectivity
    Computer Interface USB 2.0
    802.11b/g/n Wi-Fi
    Ethernet
    Wi-Fi Direct
    PictBridge
    USB flash memory drive
    Mobile Printing Features Apple AirPrint, Google Cloud Print, Brother iPrint&Scan, Cortado Workplace, Wi-Fi Direct
    Direct Print Capable USB direct interface
    PictBridge
    Web Connection Facebook, Picasa Web Albums, Flickr, Google Drive, Evernote, Dropbox, Box, OneDrive, OneNote, Brother Cloud Apps (Scan to Office, Outline&Copy, Outline&Scan, Outline&Remove, NoteScan, CreativeCenter)
    Network Protocols IPv4: ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS Name Resolution, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client and Server, SNMPv1/v2c, TFTP server, SMTP Client, ICMP, Web Services (Print/Scan), CIFS Client, SNTP Client, POP3, IMAP4, HTTP Server
    IPv6: NDP, RA, mDNS, LLMNR Responder, DNS Resolver, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client/Server, SNMPv1/v2, TFTP server, Web Services (Print/Scan), SMTP Client, POP3, CIFS Client, SNTP Client, IMAP4, ICMPv6, HTTP Server
    Security Features Wireless Network: SSID (32 character), WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
    Functions: Secure Function Lock (print, scan, copy, fax)
    Wireless Configuration One-Push: AOSS, Wi-Fi Protected Setup
    Supported Operating Systems Windows 8.1, 8, 7, Vista, XP Home, XP Professional, Server 2012, Server 2012 R2, Server 2008, Server 2008 R2, Server 2003, Server 2003 R2
    Max OS X 10.6.x, 10.7.x, 10.8.x, 10.9.x
    Memory 128 MB
    Physical
    Display 3.7" (9.4 cm) Swipe LCD touchscreen
    Power Requirements 100-120 VAC, 50/60 Hz
    Power Consumption Sleep: 1.7 W
    Ready: 5 W
    Copying: 31 W
    Certifications ENERGY STAR qualified
    Acoustic Noise Ready/Copying: 50 dB or less
    Operating Conditions Temperature: 50 to 95°F (10 to 35°C)
    Humidity: 20 to 80%, non-condensing
    Dimensions (WxDxH) 19.3 x 13.6 x 9.4" (49.0 x 34.5 x 23.9 cm)
    Weight 25.5 lb (11.6 kg)
    Packaging Info
    Package Weight 31.4 lb
    Box Dimensions (LxWxH) 23.25 x 16.6 x 13.05"
    The user manual for the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW can be downloaded in .pdf format if it did not come with your new inkjet printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Brother users keep a unique electronic library for Brother inkjet printerss, where you can use our link to download the user manual for the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW.

    The user manual lists all of the functions of the Brother MFC-J5520DW Business Smart Plus All-in-One MFC-J5520DW, all the basic and advanced features and tells you how to use the inkjet printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Brother service.
