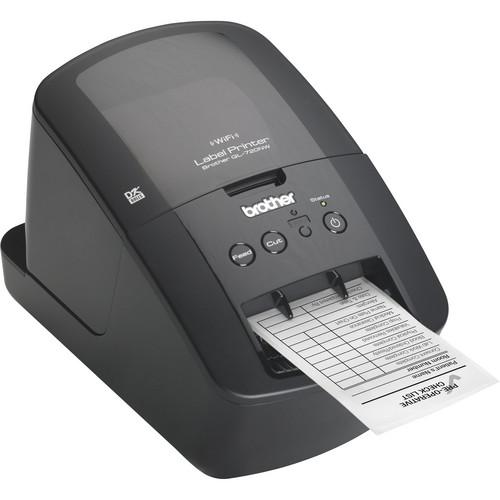

User manual Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW

Operating instructions and pdf manual for use - Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW User manual, User manual Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW, Brother, QL-720NW, High-Speed, Label, Printer, W


User manual for Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW
  • Manufacturer: Brother
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Label Printer
  • Safety instructions
  • Startup and operation of the label printer
  • Tips for setting up your Brother
  • Settings and expert assistance
  • Contact Brother service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD
We recommend checking out our discussion threads on the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW, which address similar problems with connecting and setting up Label Printer Brother.



User manual for the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW

The user manual for the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Label Printer.

The QL-720NW High-Speed Label Printer W/ Wireless Networking from Brother provides high-speed labeling at up to 93 labels per minute. The 300 x 600 dpi resolution and the durable auto cutter (good for up to 300,000 labels) make it an ideal choice for a heavy use in a fast-paced environment. In addition to traditional labels, you can even print long banners up to 3 feet in length.
If you own a Brother label printer and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NWDownload user manual for Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW
(PDF file, 1.24 MB)
Additional parameters of the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW:
Specifications
    Print Method Direct thermal printing via thermal head
    Resolution 300 x 600 dpi
    Cutter Automatic
    Cutter Life Die-Cut Labels: up to 300,000
    Continuous Labels: up to 150,000
    Print Speed Up to 93 labels/minute
    Up to 5.9" (150 mm)/second
    Tape Sizes Die-cut & continuous
    Maximum Tape Width 2.4" (6.10 cm)
    Maximum Print Width 2.3" (5.9 cm)
    Minimum Printable Width 0.5" (1.27 cm)
    Maximum Label Length 3.0' (91.44 cm)
    Font Styles True Type
    Symbols for Windows 1379
    Mirror Printing Yes
    Vertical Printing Yes
    Rotate Printing Yes
    Date/Time Stamp PC generated
    Multiple Copies Up to 9999
    Bar-Code Types CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5)
    Database File Compatibility Windows: csv, txt, mdb, xls, Microsoft SQL Server Database
    Mac: csv, txt
    Software P-touch Editor 5.0 for Windows
    P-touch Address Book 1.1 for Windows
    P-touch Editor 5.0 for Mac
    P-touch Update Software (Windows & Mac)
    Networking Wi-Fi 802.11 b/g/n
    Interface USB
    Wireless (802.11 b/g/n)
    Ethernet
    Android, Apple iOS
    Serial
    Memory 99 templates (6.0 MB)
    OS Compatibility Windows: XP, Vista, Windows 7, Server 2003, Server 2008
    Mac: OS X 10.5.8 to 10.7
    Control Panel Buttons: On/Off, Wi-Fi, Feed, Cut
    Lights: Wi-Fi, Status
    Housing Color Black
    Power Requirements 120 V AC, 60 Hz, 1.8 A
    Temperature & Humidity Operating Temperature: 50 to 95 °F (10 to 35 °C)
    Operating Humidity: 20 to 80%
    Dimensions 5.0 x 9.3 x 6.0" (128 x 236 x 153 mm)
    Weight 2.65 lb (1.2 kg)

    Without DK rolls

    Packaging Info
    Package Weight 4.85 lb
    Box Dimensions (LxWxH) 11.6 x 9.3 x 7.2"
    The user manual for the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW can be downloaded in .pdf format if it did not come with your new label printer, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Brother users keep a unique electronic library for Brother label printers, where you can use our link to download the user manual for the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW.

    The user manual lists all of the functions of the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW, all the basic and advanced features and tells you how to use the label printer. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Brother service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Brother QL-720NW High-Speed Label Printer W/ Ethernet QL-720NW. User manuals are also available on the Brother website under Computers & Solutions - Printers & Accessories - Label Printer.
