User manual Browning Spec Ops FHD Trail Camera BTC 8FHD

Operating instructions and pdf manual for use - Browning Spec Ops FHD Trail Camera BTC 8FHD User manual, User manual Browning Spec Ops FHD Trail Camera BTC 8FHD, Browning, Spec, Ops, FHD, Trail, Camera, BTC, 8FHD, Video


User manual for Browning Spec Ops FHD Trail Camera BTC 8FHD

Overall rating 2.5
Overall Rating: 2.5

50% of respondents would recommend this to a friend.
Browning  Spec Ops FHD Trail Camera BTC 8FHD
  • Manufacturer: Browning
  • Basic description and contents of package
  • Product classification: Optics - Firearm & Field Accessories - Trail/Wildlife Cameras
  • Safety instructions
  • Startup and operation of the trail/wildlife cameras
  • Tips for setting up your Browning
  • Settings and expert assistance
  • Contact Browning service
  • Troubleshooting
  • Warranty information
  • Price: 128 USD
We recommend checking out our discussion threads on the Browning Spec Ops FHD Trail Camera BTC 8FHD, which address similar problems with connecting and setting up Trail/Wildlife Cameras Browning.



User manual for the Browning Spec Ops FHD Trail Camera BTC 8FHD

The user manual for the Browning Spec Ops FHD Trail Camera BTC 8FHD provides necessary instructions for the proper use of the product Optics - Firearm & Field Accessories - Trail/Wildlife Cameras.

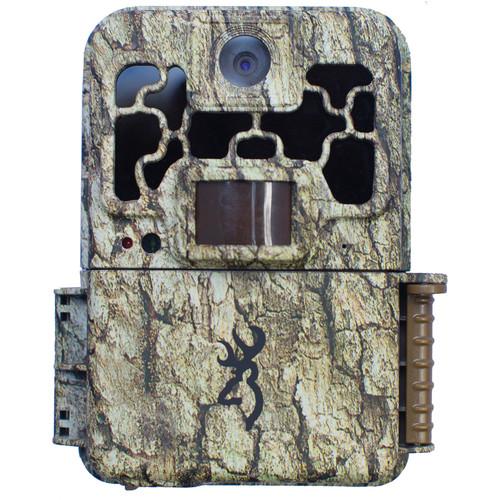

A dedicated camera designed to capture photos and videos of wildlife in a discreet manner, the Spec FHD Trail Camera from Browning features a 10MP CMOS sensor that is capable of recording both still imagery and full HD 1920 x 1080 video. The integrated PIR motion sensor automatically triggers shooting with 0.67 seconds when a moving subject is detected within a 55' foot range, and when used at nighttime, the built-in "Night Vision" infrared LED flash will clearly record subjects within a 70' range without spooking the wildlife. Combining the infrared illumination with a 1/20 sec. shutter speed, Zero Blur technology also helps to freeze moving subjects for greater clarity. Timelapse and Timelapse Plus modes can be used to set predefined shooting intervals throughout the day while Multi-Shot and Rapid Fire modes automatically record up to eight individual frames in quick succession to better ensure clear framing of moving subjects. The imaging components are housed within a compact casing that is covered with a camouflage pattern to blend into woods scenes for more inconspicuous shooting.

The Spec Ops FHD can record both video and photos onto an SD/SDHC memory card up to 32GB, and also features TV out and USB ports to help streamline offloading and playing back footage. It runs on either eight AA batteries or via an external power source that can be connected using the 12V power jack. A 1/4"-20 mounting socket permits attaching to a tripod or other stand or, alternatively, a 6'-long nylon strap can also be used to attach the camera to a tree or other post.
If you own a Browning trail/wildlife cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Browning Spec Ops FHD Trail Camera BTC 8FHD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Browning Spec Ops FHD Trail Camera BTC 8FHD:
Specifications
    Camera Type Trail/wildlife
    Imaging
    Resolution 10 MP
    Sensor Image Sensor: CMOS
    Motion Sensor: PIR with 55' / 16.8 m detection range
    File Format JPEG
    Triggering Speed 0.67 sec
    Optics
    Lens Field of View: 55°
    Focus Type Fixed
    Focus Range 3.0' / 0.9 m to infinity
    Shooting Controls
    Burst Capability 1-8 shots in quick succession when triggered
    4-shot standard: 4 pictures spaced 3 sec apart
    Rapid Fire: Up to 8 pictures spaced 0.3 sec apart
    Image Delay Programmable picture/video delay of 5, 10, 20 or 30 sec, or 1, 5, 10, 30 or 60 min in motion-detect mode
    Interval Recording Time-lapse mode captures images at pre-set intervals of 5, 10, 15 or 30 sec, or 1, 2 or 5 min during daytime
    Time-lapse Plus: time-lapse mode plus activation of motion sensor during both day and night
    Time-lapse duration: sunrise to sunset or 2, 3 or 4 hr after sunrise and 2, 3 or 4 hr prior to sunset
    Flash
    Built-in Flash Yes, infrared LED flash
    Effective Flash Range 70' / 21.3 m at night
    Memory
    Memory Card Type SD/SDHC memory card up to 32 GB
    A/V Recording
    Recording Formats MP4
    Video Recording Yes
    Video Resolution Full HD 1920 x 1080
    HD 1280 x 720
    SD 640 x 480
    Video Clip Length Day: 5, 10, 20 or 30 sec, or 1 or 2 min
    Night: 10 sec maximum
    Audio Recording Yes, with video via built-in microphone
    Viewfinder/Display
    Viewfinder Type None
    Display Small text LCD screen showing following info: camera operation mode, number of photos or videos taken, number of photos or videos that can be captured with SD card, camera delay countdown, and battery life percentage
    Playback None in-camera, requires computer
    Connectivity/System Requirements
    Connectivity TV Out (NTSC or PAL)
    USB port
    System & Software Requirements Software Requirements: Windows XP, Vista, or 7
    Environmental
    Operating/Storage Temperature -30 to 140°F / -34.4 to 60°C
    Weatherproof Yes
    Power
    Battery Type 8 x AA alkaline or lithium batteries
    Power Adapter 12 V external power jack for optional external battery or adapter
    Physical
    Mounting Standard 1/4"-20 tripod mount
    Rear mounting loops for supplied nylon strap - 6' / 1.8 m long, 1" / 2.5 cm wide
    Security Hole for an optional padlock
    Rear security cable loops for optional locking steel cable
    Dimensions 5.0 x 4.0 x 2.5" / 12.7 x 10.2 x 6.4 cm
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 10.8 x 8.1 x 2.5"
    The user manual for the Browning Spec Ops FHD Trail Camera BTC 8FHD can be downloaded in .pdf format if it did not come with your new trail/wildlife cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Browning users keep a unique electronic library for Browning trail/wildlife camerass, where you can use our link to download the user manual for the Browning Spec Ops FHD Trail Camera BTC 8FHD.

    The user manual lists all of the functions of the Browning Spec Ops FHD Trail Camera BTC 8FHD, all the basic and advanced features and tells you how to use the trail/wildlife cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Browning service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Browning Spec Ops FHD Trail Camera BTC 8FHD. User manuals are also available on the Browning website under Optics - Firearm & Field Accessories - Trail/Wildlife Cameras.
