User manual for the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M
The user manual for the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Networked Audio Systems.

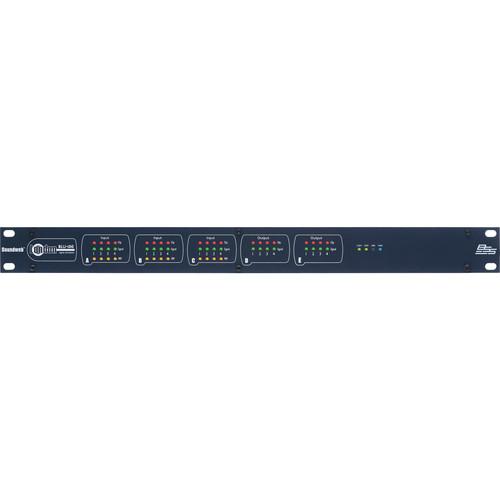

The Soundweb London BLU-100 12x8 Signal Processor with BLU Link from BSS Audio is a DSP processor designed for use in networked audio routing applications. It offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.
|
If you own a BSS Audio networked audio systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M:
| Input | Signal Present, CLIP, 48 V (Input only) | | Other | COM, STAT, ERR, PWR | | Mic/Line Inputs | 12x electronically balanced on Phoenix Combicon removable screw connectors
Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps | | Input Impedance | 3.5 kOhms | | Maximum Input Level | +20 dBu with 0 dB input gain,+8 dBu with 12 dB gain | | CMRR | >75 dB at 1 kHz | | EIN | <-128 dBu typical with 150 ohm source | | Phantom Power | 48 V nominal, selectable per input | | Latency | A/D Latency: 37/Fs [0.77 ms@ 48 kHz] | | Outputs | 8x electronically balanced on Phoenix/Combicon removable screw connectors | | Maximum Output Level | +19 dBu | | Frequency Response | 20 Hz to 20 kHz (+0.5 dB/-1 dB) | | THD | <0.01% 20 Hz to 20 kHz, +10 dBu output | | Dynamic Range | 108 dB typical, 22 Hz to 22 kHz, unweighted | | Crosstalk | <-75 dB | | Output Impedance | 40 ohms balanced and 20 ohms unbalanced | | Latency | D/A Latency: 29/Fs [0.60 ms@48 kHz] | | Control Ports | 12 inputs and 6 outputs | | Input Voltage | 0 to 4.5 V | | Input Impedance | 2-Wire Mode: 4.7 kOhm to +5 V
3-Wire Mode: >1 Mohm | | Output Voltage | Logic Output Voltage: 0 or +5 V unloaded | | Output Impedance | Logic Output Impedance: 440 ohms | | Output Current | Logic Output Current: 10 mA source, 60 mA sink | | Output Current | Opto Output Current: 14 mA maximum | | Voltage | Withstanding Voltage: 80 V maximum (Off) | | Impedance | Series Impedance: 220 ohms (isolated) | | Connectors | RJ45 Ethernet connector | | Maximum Cable Length | 300' (100 m) on Cat5e cable between devices | | Number of Maximum Nodes | 60 | | Latency | 11/Fs [0.23 ms @48 kHz]
Pass Through Latency: 4/Fs [0.08 ms @48 kHz] | | Mains Voltage | 100-240 V AC, 50/60 Hz | | Power Consumption | <55 VA | | BTU | <188 btu> | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (HxWxD) | 1.75 x 19.00 x 9.00" (45 x 483 x 229 mm) | | Weight | 6.4 lb (2.9 kg) | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 23.8 x 15.6 x 4.8" | |
The user manual for the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M can be downloaded in .pdf
format if it did not come with your new networked audio systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other BSS Audio users keep a unique electronic library
for BSS Audio networked audio systemss,
where you can use our link to download the user manual for the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M.
The user manual lists all of the functions of the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M,
all the basic and advanced features and tells you how to use the networked audio systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from BSS Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the BSS Audio Soundweb London BLU-100 12x8 Signal Processor BLU-100M. User manuals are also
available on the BSS Audio website under Pro Audio - Installation Sound - Networked Audio Systems.
