User manual Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM

Operating instructions and pdf manual for use - Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM User manual, User manual Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM, Bugera, 1960, INFINIUM, 150-Watt, Tube, Guitar, 1960, INFINIUM


User manual for Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM

Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM
  • Manufacturer: Bugera
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers
  • Safety instructions
  • Startup and operation of the guitar amplifiers
  • Tips for setting up your Bugera
  • Settings and expert assistance
  • Contact Bugera service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM, which address similar problems with connecting and setting up Guitar Amplifiers Bugera.



User manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM

The user manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.

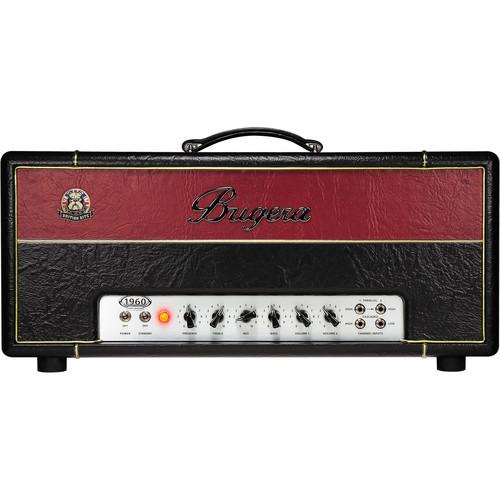

The 1960 INFINIUM 150-Watt Tube Guitar Amplifier Head from Bugera features a hand-built, two-channel design based upon classic British amplifiers from the `60s, `70s, and `80s. Its preamp section has three ECC83 tubes while its power section is driven by four EL34s and is capable of 150-watts of output. The 1960 INFINIUM's two-channels can be used in separate, parallel, or cascading operation. Separate operation lets you use one channel at a time, or you can use both channels simultaneously while in parallel operation. Cascading operation drives the output of the first channel into the input of the second channel, providing Hi-Gain tones. You can also drive independent signals to channels one and two.

The 1960 INFINIUM features Bugera's INFINIUM Tube Life Multiplier Technology, which is designed to lengthen tube life and optimize their output by dynamically balancing the drive between them to evenly distribute the load. When you do need to replace a tube, the system will indicate which one with its back panel LED indicators. The 1960 INFINIUM additionally has an output impedance switch, allowing you to select between four, eight, and 16 ohms for compatibility with a variety of speaker cabinets.
If you own a Bugera guitar amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM:
Preamplifier
Tubes 3x ECC83
Inputs Parallel Inputs:
2x 1/4" High Gain

Cascading Inputs:
1x 1/4" High Gain
1x 1/4" Low Gain

Normal Inputs:
1x 1/4" High Gain
1x 1/4" Low Gain
Controls 1x Power switch
1x Standby switch
1x Presence control knob
1x Treble control knob
1x Mid control knob
1x Bass control knob
1x Volume 1 control knob
1x Volume 2 control knob
1x Master Post Phase Inverter control knob
1x Phase Inverter Bypass button
1x FX Loop Bypass button
1x +4/-10 dB FX Loop Level button
1x Impedance Selector switch
Effects Loop 1x 1/4" Send
1x 1/4" Return
Switchable (+4/-10 dB operation)
Amplifier
Tubes 4x EL34
Volume Management 1x Master volume control knob (post phase inverter)
Output Power 150 Watts
Output Impedance Selectable 4, 8, 16 Ω
Output Connections 2x 1/4" Speaker
General
Dimensions (W x D x H) 27.2 x 9.6 x 12.2" (69.0 x 24.5 x 31.0 cm)
Weight 49 lb (22 kg)
Packaging Info
Package Weight 55.0 lb
Box Dimensions (LxWxH) 30.6 x 16.0 x 14.0"
The user manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM can be downloaded in .pdf format if it did not come with your new guitar amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bugera users keep a unique electronic library for Bugera guitar amplifierss, where you can use our link to download the user manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM.

The user manual lists all of the functions of the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM, all the basic and advanced features and tells you how to use the guitar amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bugera service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM. User manuals are also available on the Bugera website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM

Post new comment to Bugera 1960 INFINIUM 150-Watt Tube Guitar 1960 INFINIUM

Subject: Schematic bugera 1960
Date: 25.09.2020 04:18:26Author: Marco Martino
Please y need schematic of thai amp !!!?!?!
