User manual for C2G 10' Select VGA Male to VGA Male Video Cable 50213
- Manufacturer: C2G
- Basic description and contents of package
- Product classification: Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables
- Safety instructions
- Startup and operation of the vga to vga cables
- Tips for setting up your C2G
- Settings and expert assistance
- Contact C2G service
- Troubleshooting
- Warranty information
- Price: 16 USD

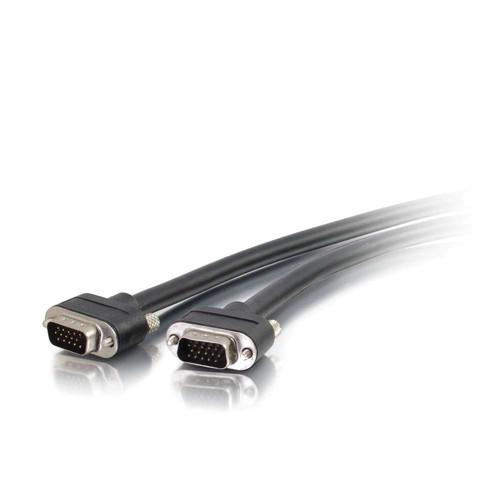

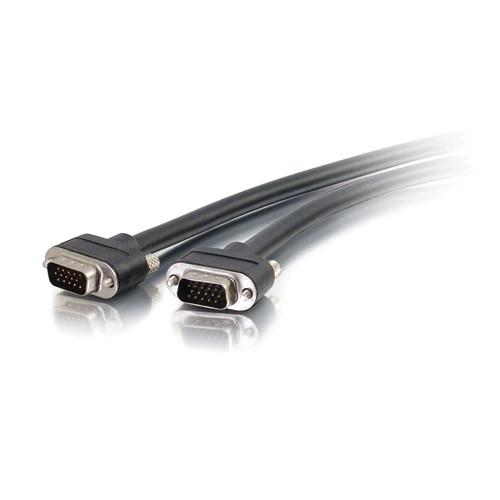

Click to enlarge image
|
We recommend checking out our discussion threads on the C2G 10' Select VGA Male to VGA Male Video Cable 50213,
which address similar problems with connecting and setting up VGA to VGA Cables C2G.
|
User manual for the C2G 10' Select VGA Male to VGA Male Video Cable 50213
The user manual for the C2G 10' Select VGA Male to VGA Male Video Cable 50213 provides
necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables.
C2G's Select VGA Male to VGA Male Video Cable is a 10' cable that provides source to display connectivity for in-home desktop or in-wall commercial applications that require video resolutions of up to QXGA (2048x1536). The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150'. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals (communication of the display's capabilities, ensuring that the content from the source is sent at the optimal resolution for the display).
|
If you own a C2G vga to vga cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the C2G 10' Select VGA Male to VGA Male Video Cable 50213 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the C2G 10' Select VGA Male to VGA Male Video Cable 50213:
| Maximum Resolution Supported | 2048 x 1536 | | Nominal Impedance | 75±5 Ω | | Nominal Capacitance | 28 pF/m | | Conductor Resistance | 30 AWG: 376.96 Ω/km
28 AWG: 237.25 Ω/km | | Insulation Resistance | 10 MΩ/km at 68°F (20°C) DC-500V | | Dielectric Strength | AC 500 V/1 minute | | Voltage Rating | 30 V | | Minimum Bend Radius | 3.34" (85 mm) | | Conductor AWG | 3 Conductors: 30 AWG (7/0.127) tinned copper (OFC)
9 Conductors: 28 AWG (7/0.127) tinned copper (OFC) | | Insulation | 3 Conductors: foam-PE
9 Conductors: SR-PVC | | Cover | 3 Conductor: PVC | | Drain Wire | 3 Conductor: 28 AWG (7/0.127) tinned copper | | Shield | 3 Conductor: Aluminum foil (100% coverage) | | Foil Shield | Aluminum foil (100% coverage) | | Braided Shield | 16/10/0.12 (85% coverage) tinned copper (OFC) | | Drain Wire | 26 AWG (7/0.20) tinned copper | | Jacket | CMG | | Connector 1 | HD15 VGA Male | | Connector 2 | HD15 VGA Male | | Connector Plating | Nickel | | Housing Material | Black PBT | | Length | 10.0' (3.0 m) | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.8 x 5.5 x 1.7" | |
The user manual for the C2G 10' Select VGA Male to VGA Male Video Cable 50213 can be downloaded in .pdf
format if it did not come with your new vga to vga cables, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other C2G users keep a unique electronic library
for C2G vga to vga cabless,
where you can use our link to download the user manual for the C2G 10' Select VGA Male to VGA Male Video Cable 50213.
The user manual lists all of the functions of the C2G 10' Select VGA Male to VGA Male Video Cable 50213,
all the basic and advanced features and tells you how to use the vga to vga cables.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from C2G service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the C2G 10' Select VGA Male to VGA Male Video Cable 50213. User manuals are also
available on the C2G website under Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables.
