User manual C2G HDMI Male to DVI-D Male Digital Video Cable 42518

Operating instructions and pdf manual for use - C2G HDMI Male to DVI-D Male Digital Video Cable 42518 User manual, User manual C2G HDMI Male to DVI-D Male Digital Video Cable 42518, C2G, HDMI, Male, to, DVI-D, Male, Digital, Video, Cable, 42518,


User manual for C2G HDMI Male to DVI-D Male Digital Video Cable 42518

C2G HDMI Male to DVI-D Male Digital Video Cable 42518
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - HDMI to DVI Cables
  • Safety instructions
  • Startup and operation of the hdmi to dvi cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 15 USD

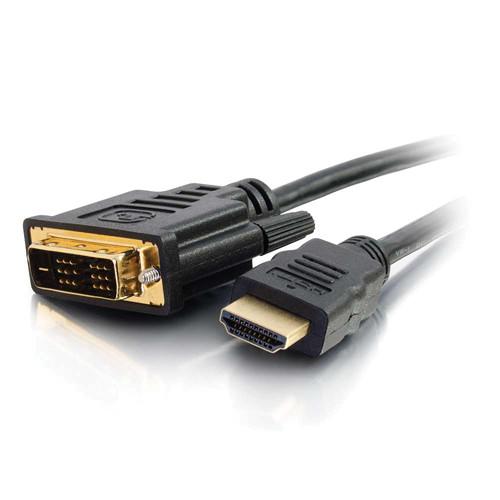

C2G HDMI Male to DVI-D Male Digital Video Cable 42518 C2G HDMI Male to DVI-D Male Digital Video Cable 42518
Click to enlarge image

We recommend checking out our discussion threads on the C2G HDMI Male to DVI-D Male Digital Video Cable 42518, which address similar problems with connecting and setting up HDMI to DVI Cables C2G.



User manual for the C2G HDMI Male to DVI-D Male Digital Video Cable 42518

The user manual for the C2G HDMI Male to DVI-D Male Digital Video Cable 42518 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - HDMI to DVI Cables.

The black C2G HDMI Male to DVI-D Male Digital Video Cable is a 16.4' cable that connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display. This fully-functional, high-bandwidth cable is tested to perform at industry standards.
If you own a C2G hdmi to dvi cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G HDMI Male to DVI-D Male Digital Video Cable 42518 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G HDMI Male to DVI-D Male Digital Video Cable 42518:
Specifications
    Electrical
    Resolution Supported Up to 1080p
    Bandwidth 340 MHz
    Nominal Velocity of Propagation 10.2 Gbps
    Nominal Attenuation 8 dB (1-825 MHz)
    DC Resistance 300 V
    Dielectric Strength AC 500 V/minute
    Insulation Resistance 100 Ω
    Physical
    Voltage Rating 30 V
    Maximum Bend Radius 3.25" (82.5 mm)
    Operating Temperature Range 32-122°F (0-50°C)
    Storage Temperature Range -13-185°F (-25-85°C)
    Approvals RoHS
    Conductor Conductor 1 (4 pair):
    Conductor Type: 30 AWG (7/0.10), tinned copper
    Insulation: Foamed PE SKIN, red/white, brown/white, blue/white, green/white, black/white
    O.D.: 0.03" ( 0.78 mm)
    Drain Wire: 30 AWG (7/0.10), tinned copper
    Shield: aluminum foil, 100% coverage

    Conductor 2 (1 pair):
    Conductor Type: 30 AWG (7/0.10), Tinned Copper
    Insulation - HDPE, yellow, red, green, purple
    O.D.: 0.02" (0.55 mm)

    Conductor 3 (3 conductors):
    Conductor Type: 30 AWG (7/0.10), tinned copper
    Insulation: HDPE, Yellow, Red, Green, Purple
    O.D.: 0.02" (0.55 mm)
    Cable Drain Wire: 30 AWG (07/0.10), tinned copper
    Foil Shield: aluminum foil, 100% coverage
    Braided Shield: 16/4/0.12, Al/Mg
    Jacket: PVC, O.D.: 0.24 ± 0.008" (6.0 ± 0.2 mm)
    Connector 1 Connector Type: HDMI type A male
    Pin Construction: phosphor copper
    Plating: 1 µm Gold
    Dimensions: 0.39 x 0.79 x 1.46" (10.0 x 20.1 x 37.1 mm)
    Connector 2 Connector Type: DVI-D single link male
    Pin Construction: phosphor copper
    Plating: 3 µm gold
    Dimensions: 0.62 x 1.55 x 1.84" (16.0 x 39.4 x 46.7 mm)
    Length 16.4 ft.
    Weight 0.45 lb (0.2 kg)
    Packaging Info
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 7.1 x 5.3 x 1.1"
    The user manual for the C2G HDMI Male to DVI-D Male Digital Video Cable 42518 can be downloaded in .pdf format if it did not come with your new hdmi to dvi cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G hdmi to dvi cabless, where you can use our link to download the user manual for the C2G HDMI Male to DVI-D Male Digital Video Cable 42518.

    The user manual lists all of the functions of the C2G HDMI Male to DVI-D Male Digital Video Cable 42518, all the basic and advanced features and tells you how to use the hdmi to dvi cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G HDMI Male to DVI-D Male Digital Video Cable 42518. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - HDMI to DVI Cables.
