User manual C2G Mini DisplayPort Cable, Male to Male (10', White) 54412

Operating instructions and pdf manual for use - C2G Mini DisplayPort Cable, Male to Male (10', White) 54412 User manual, User manual C2G Mini DisplayPort Cable, Male to Male (10', White) 54412, C2G, Mini, DisplayPort, Cable, Male, to, Male, 10', Wh


User manual for C2G Mini DisplayPort Cable, Male to Male (10', White) 54412

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
C2G Mini DisplayPort Cable, Male to Male (10', White) 54412
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables
  • Safety instructions
  • Startup and operation of the displayport cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 30 USD
We recommend checking out our discussion threads on the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412, which address similar problems with connecting and setting up DisplayPort Cables C2G.



User manual for the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412

The user manual for the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables.

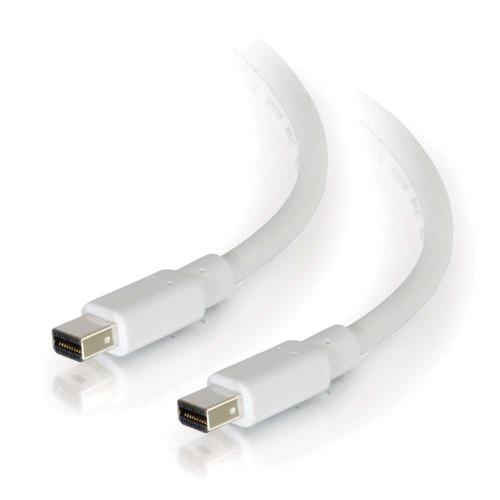

The white C2G Mini DisplayPort Male to Male is a 10' long cable that connects the mini DisplayPort output of a laptop, tablet or standard computer to the Mini DisplayPort input of a computer monitor. The cable supports digital audio/video connection and its high bit rate (HBR) bandwidth ensures that it can carry up to a 4k resolution. The cable is built to DisplayPort 1.2 standards.
If you own a C2G displayport cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412:
Specifications
    Electrical Specifications
    Voltage Rating 30 V
    Conductor Resistance @ 68°F (20°C) max
    Insulation Resistance 10 MΩ/km
    Time Delay 5.2 ns/m (max)
    Attenuation 5.02 dB @ 100-450 MHz, 7.69 dB @ 1 GHz
    12.595 dB @ 2 GHz, 17.495 dB @ 3 GHz
    22.395 dB @ 4 GHz, 27.295 dB @ 5 GHz
    32.195 dB @ 6 GHz, 37.095 dB @ 7 GHz
    Physical Specifications
    Minimum Bend Radius 2.05" (52 mm)
    Approvals CE
    Conductor (2 Conductors, 5 Pair)
    Conductor 32 AWG (7/0.08TC)
    Insulation FM-PE, ID:0.62±0.05 mm
    Color White/Black, White/Brown, White/Red, White/Green White/Blue
    Drain 32AWG (7/0.08 TC)
    Shield AL-Foil Wrap, Transparent Wrap
    Conductor (5 Conductors)
    Conductor 32 AWG (7/0.08 TC)
    Insulation PP, ID:ø0.5±0.05 mm
    Color Red/Blue/Purple/White/Gray
    Overall Cable
    Jacket PVC
    Shield AL-Foil Wrap, Braid, 85% Min Coverage
    Drain 2:30 AWG (7/0.10 BC)
    OD 5.2±0.15
    General
    Cable Length 10' (3.05 m)
    Weight 0.24 lb (108.86 g)
    Packaging Info
    Package Weight 0.2 lb
    Box Dimensions (LxWxH) 10.0 x 6.0 x 1.0"
    The user manual for the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412 can be downloaded in .pdf format if it did not come with your new displayport cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G displayport cabless, where you can use our link to download the user manual for the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412.

    The user manual lists all of the functions of the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412, all the basic and advanced features and tells you how to use the displayport cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G Mini DisplayPort Cable, Male to Male (10', White) 54412. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables.
