User manual C2G Mini Displayport Extension Cable, Male to Female 54414

Operating instructions and pdf manual for use - C2G Mini Displayport Extension Cable, Male to Female 54414 User manual, User manual C2G Mini Displayport Extension Cable, Male to Female 54414, C2G, Mini, Displayport, Extension, Cable, Male, to, Fema


User manual for C2G Mini Displayport Extension Cable, Male to Female 54414

Overall rating 1.0
Overall Rating: 1.0

20% of respondents would recommend this to a friend.
C2G Mini Displayport Extension Cable, Male to Female 54414
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables
  • Safety instructions
  • Startup and operation of the displayport cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 28 USD

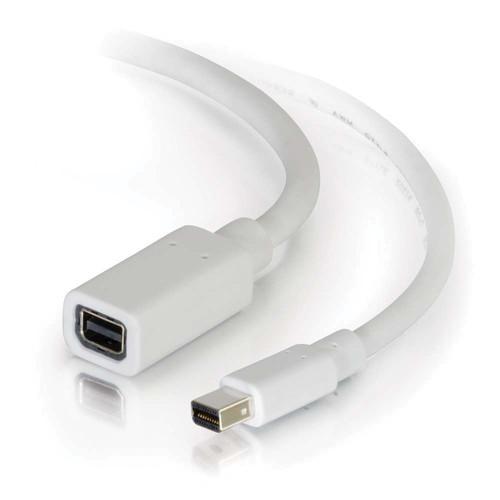

C2G Mini Displayport Extension Cable, Male to Female 54414 C2G Mini Displayport Extension Cable, Male to Female 54414 C2G Mini Displayport Extension Cable, Male to Female 54414
Click to enlarge image

We recommend checking out our discussion threads on the C2G Mini Displayport Extension Cable, Male to Female 54414, which address similar problems with connecting and setting up DisplayPort Cables C2G.



User manual for the C2G Mini Displayport Extension Cable, Male to Female 54414

The user manual for the C2G Mini Displayport Extension Cable, Male to Female 54414 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables.

The white C2G Mini Displayport Male to Female Extension Cable, adds 6' length to an existing DisplayPort cable or extends the fixed Mini DisplayPort cable of a computer monitor. This cable carries a digital audio/video signal and is built to DisplayPort 1.2 standards.
If you own a C2G displayport cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G Mini Displayport Extension Cable, Male to Female 54414 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G Mini Displayport Extension Cable, Male to Female 54414:
Electrical Specifications
Voltage Rating 30 V
Conductor Resistance @ 68°F (20°C) max
Insulation Resistance 10 MΩ/km
Time Delay 5.2 ns/m (max)
Attenuation 5.02 dB @ 100-450 MHz, 7.69 dB @ 1 GHz
12.595 dB @ 2 GHz, 17.495 dB @ 3 GHz
22.395 dB @ 4 GHz, 27.295 dB @ 5 GHz
32.195 dB @ 6 GHz, 37.095 dB @ 7 GHz
Physical Specifications
Minimum Bend Radius 2.05" (52 mm)
Approvals CE
Conductor (2 Conductors, 5 Pair)
Conductor 32 AWG (7/0.08TC)
Insulation FM-PE, ID:0.62±0.05 mm
Color White/Black, White/Brown, White/Red, White/Green White/Blue
Drain 32AWG (7/0.08 TC)
Shield AL-Foil Wrap, Transparent Wrap
Conductor (5 Conductors)
Conductor 32 AWG (7/0.08 TC)
Insulation PP, ID:ø0.5±0.05 mm
Color Red/Blue/Purple/White/Gray
Overall Cable
Jacket PVC
Shield AL-Foil Wrap, Braid, 85% Min Coverage
Drain 2:30 AWG (7/0.10 BC)
OD 5.2±0.15
General
Length 6' (1.83 m)
Weight 0.16 lb (72.58 g)
Packaging Info
Package Weight 0.15 lb
Box Dimensions (LxWxH) 8.0 x 5.0 x 0.6"
The user manual for the C2G Mini Displayport Extension Cable, Male to Female 54414 can be downloaded in .pdf format if it did not come with your new displayport cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G displayport cabless, where you can use our link to download the user manual for the C2G Mini Displayport Extension Cable, Male to Female 54414.

The user manual lists all of the functions of the C2G Mini Displayport Extension Cable, Male to Female 54414, all the basic and advanced features and tells you how to use the displayport cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G Mini Displayport Extension Cable, Male to Female 54414. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - DisplayPort Cables.
