User manual C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227

Operating instructions and pdf manual for use - C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227 User manual, User manual C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227, C2G, Select, 15-Pin, VGA, , 3.5mm, Mini, Male,


User manual for C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227

C2G Select 15-Pin VGA   3.5mm Mini Male to Male A/V Cable 50227
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables
  • Safety instructions
  • Startup and operation of the vga to vga cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 22 USD
C2G Select 15-Pin VGA   3.5mm Mini Male to Male A/V Cable 50227 C2G Select 15-Pin VGA   3.5mm Mini Male to Male A/V Cable 50227 C2G Select 15-Pin VGA   3.5mm Mini Male to Male A/V Cable 50227
Click to enlarge image

We recommend checking out our discussion threads on the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227, which address similar problems with connecting and setting up VGA to VGA Cables C2G.



User manual for the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227

The user manual for the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227 provides necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables.

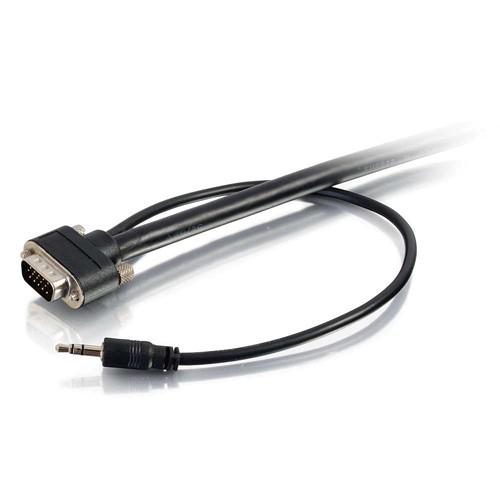

The 15', black Select 15-pin VGA + 3.5mm Male to Male Audio/Video Cable from C2G is designed for source-to-display connectivity for both in-home desktop and in-wall commercial applications requiring support for video resolutions up to QXGA (2048 x 1536) and stereo audio. The CMG-rated jacket can withstand the rigors of in-wall applications, while the low profile, rounded connectors ease installation in compact spaces, such as a projector mount pole.

This cable is designed to transmit video over distances of up to 150'. The 3.5mm mini audio pigtail on the source side of the cable extends 24" away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where VGA video and 3.5mm audio outputs are placed on opposite sides. The audio pigtail on the display side of the cable extends 10" away from the VGA connector, providing easy connectivity without excess cabling. All 15 pins are wired, with support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, providing communication of the display capabilities and ensuring that source content is sent at the optimal resolution for the display.
If you own a C2G vga to vga cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227:
Specifications
    Connector Specifications
    Connector 1 15-pin VGA, 3.5 mm mini stereo male
    Connector 2 15-pin VGA, 3.5 mm mini stereo male
    Plating Nickel
    Housing Material Black PBT
    Electrical Characteristics
    Maximum Resolution Supported 2048 x 1536
    Impedance 75 ± 5 Ω
    Capacitance 58 pF/m
    Dielectric Strength 500 VAC/1 minute
    Resistance Conductor 30 AWG - 376.96 Ω/km
    28 AWG - 237.25 Ω/km
    24 AWG - 98.25 Ω/km at 68°F (20°C)
    Insulation: 10 MΩ/km 500 VDC at 68°F (20°C)
    Conductors Three-Conductors:
    Conductor Type: 30 AWG (7/0.127) Tinned Copper (OFC)
    Insulation: Foamed PE
    Covering: PVC
    Drain Wire: 26 AWG (7/0.20TC) Tinned Copper (OFC)
    Shield: Aluminum foil (100% coverage)

    Nine-Conductors:
    Conductor Type: 28 AWG (7/0.127) Tinned Copper (OFC)
    Insulation: SR-PVC

    Two-Conductors:
    Conductor Type: 24 AWG (7/0.20) Tinned Copper (OFC)
    Insulation: Foamed PE
    Covering: PVC
    Drain Wire: 24 AWG (7/0.20) Tinned Copper(OFC)
    Braided Shield: Aluminum foil (100% coverage)
    Construction
    Drain Wire 26 AWG (7/0.20), Tinned Copper (OFC)
    Foil Shield Aluminum foil, 100% coverage
    Braided Shield 16/7/0.12±0.008 mm , Tinned Copper (OFC)
    Jacket CMG
    General
    Voltage Rating 30 V
    Minimum Bend Radius 3.34" (85 mm)
    Breakout Length 3.5 mm Breakout Length: Source: 24"(609 mm)
    Display: 10" (254 mm)
    Length 15' (4.57 m)
    Approvals CE
    Dimensions VGA Connector: 0.5 x 1.2 x 1.3" (13.1 x 31.2 x 34.0 mm)
    Weight 1.2 lb (0.5 kg)
    Packaging Info
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 6.1 x 5.7 x 2.0"
    The user manual for the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227 can be downloaded in .pdf format if it did not come with your new vga to vga cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G vga to vga cabless, where you can use our link to download the user manual for the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227.

    The user manual lists all of the functions of the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227, all the basic and advanced features and tells you how to use the vga to vga cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G Select 15-Pin VGA 3.5mm Mini Male to Male A/V Cable 50227. User manuals are also available on the C2G website under Computers & Solutions - Monitor & Display Accessories - VGA to VGA Cables.
