User manual Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061

Operating instructions and pdf manual for use - Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061 User manual, User manual Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061, Cambo, CS-AS-TRIBASE, Tripod, Based, Support, with


User manual for Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061

Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061
  • Manufacturer: Cambo
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Rod Support Systems
  • Safety instructions
  • Startup and operation of the rod support systems
  • Tips for setting up your Cambo
  • Settings and expert assistance
  • Contact Cambo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061, which address similar problems with connecting and setting up Rod Support Systems Cambo.



User manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061

The user manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Rod Support Systems.

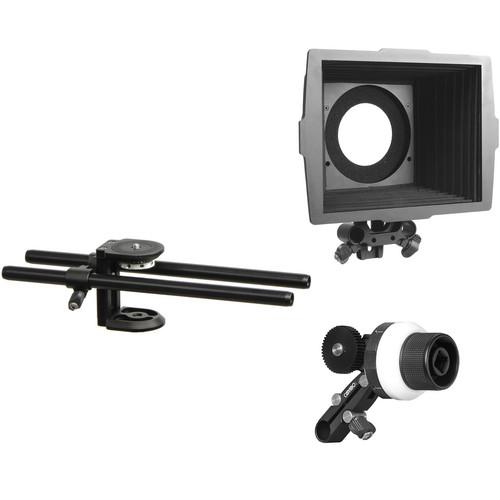

The Cambo CS-AS-TRIBASE Tripod Based Support with Follow Focus & Matte Box is ideal for shooting video from a tripod or pedestal unit. The distance between the optical center of the lens and the iris rods is adjustable, making this rig applicable to different types of cameras. The Tripod Based HDSLR Support comes with the Tribase Rig, CS-MFC-3 Follow Focus, & CS-M100 Matte box.

The Tribase Rig can also be used with any other follow-focus and/or matte box and this basic rig can be further extended to any configuration. The Tripod Rig assembly consists of the CS-M1 Compact Camera/Tripod Mount, the CS-152 Dual Parallel Rod Clamp, and 2 CS-1530 Iris Rods (300mm).

The compact CS-MFC-3 Follow Focus system enables you to precisely control the focus. Made from machined aluminum, this follow focus is up to the level of the most demanding cameraman. This unit is mounted to a single bar of the support system, which has several advantages. While changing lenses, you can simply release one knob with a simple twist and hinge the follow focus unit aside to access the lens without any obstruction. If the new lens has a different diameter, the CS-MFC-3 Follow Focus can be easily hinged in place to accommodate the new diameter of the lens with a one hand operation. Also, when the gear is not at the same distance, the unit can be shifted forward or backwards. It also features a flexible gear-ring and drive gear m0.8x46. Thanks to the uniquely profiled support bars, the unit locks very secure and positive with the correct amount of contact with the gear rack of the lens in order to operate the focus movements without any play in the mechanism. This follow focus is also able to reverse its rotation direction to accommodate the inverse focus direction of DSLR lenses.

The CS-M100 Matte box attaches directly to the bar system in front of the lens. It features a flexible hood that allows for adjustments for optimum shading with any focal length. The Matte box works with most cameras with wide-angle lenses for both 4:3 and 16:9 aspect ratios without causing vignetting.
If you own a Cambo rod support systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061:
Specifications
    Weight 0.81 lb (0.37 kg) including bars adapter
    The user manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061 can be downloaded in .pdf format if it did not come with your new rod support systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cambo users keep a unique electronic library for Cambo rod support systemss, where you can use our link to download the user manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061.

    The user manual lists all of the functions of the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061, all the basic and advanced features and tells you how to use the rod support systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cambo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cambo CS-AS-TRIBASE Tripod Based Support with Follow 99210061. User manuals are also available on the Cambo website under Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Rod Support Systems.
