User manual Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15

Operating instructions and pdf manual for use - Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 User manual, User manual Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15, Canare, L-2.5CHD, 3G/HD-SDI, Cable, with, 1.


User manual for Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15

Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15
  • Manufacturer: Canare
  • Basic description and contents of package
  • Product classification: Professional Video - Camcorder & Camera Peripherals - Camcorder Cables
  • Safety instructions
  • Startup and operation of the camcorder cables
  • Tips for setting up your Canare
  • Settings and expert assistance
  • Contact Canare service
  • Troubleshooting
  • Warranty information
  • Price: 27 USD
Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15

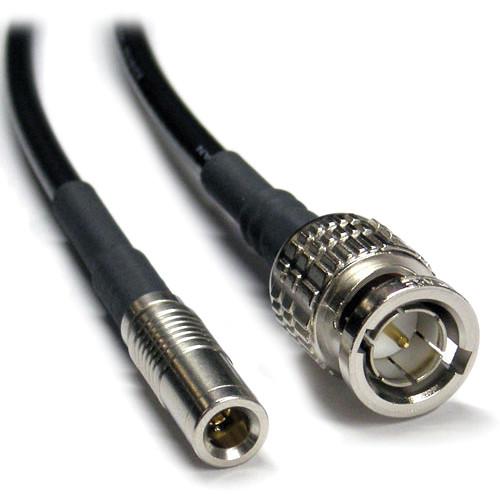

Click to enlarge image

We recommend checking out our discussion threads on the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15, which address similar problems with connecting and setting up Camcorder Cables Canare.



User manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15

The user manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Camcorder Cables.

The Canare 15 ft offers the professional broadcaster a high-performance, 100% sweep tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards. It is designed for connecting equipment or video distribution gear having standard size BNC input.
If you own a Canare camcorder cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15:
Impedance 75 ± 3 ohms
Composition Inner Conductor: 1/0.59 A quantity/mm, 23 AWG
Shield Coverage Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers
Conductor Resistance Inner: 39.95 ohms/mile (64.3 ohms/km)
Outer: 10.5 ohms/mile (16.9 ohms/km)
Static Capacity 53 nf/km @ 1 kHz
Attenuation 30.2 dB / 328' (100 m) @ 750 MHz
Cable O.D. Nominal: 0.16” (4.2 mm)
Insulation: 0.1” (2.59 mm)
Inner Conductor: 0.02” (0.59 mm)
Maximum Transmission Distance 1,030.18’ (314 m) @ 143 Mbps (SMPTE 259M, Composite NTSC)
941.6’ (287 m) @ 177 Mbps (ITU-R BT. 601, Composite PAL)
777.56’ (237 m) @ 270 Mbps (SMPTE 259M, Component 4:2:2)
675.85’ (206 m) @ 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9)
551.18’ (168 m) @ 540 Mbps (SMPTE 344M, SDI)
216.53’ (66 m) @ 1.5 Gbps (SMPTE 292M, HD-SDI)
150.92’ (46 m) @ 3 Gbps (SMPTE 424M, HD 1080p)
Nominal Attenuation 4.1 dB / 328' (100 m) @ 10 MHz
6.5 dB / 328' (100 m) @ 30 MHz
9.5 dB / 328' (100 m) @ 72.0 MHz (SMPTE 259M, Composite NTSC)
10.4 dB / 328' (100 m) @ 88.0 MHz (ITU-R BT. 601, Composite
PAL)
12.6 dB / 328' (100 m) @ 135 MHz (SMPTE 259M, Component
4:2:2)
14.5 dB / 328' (100 m) @ 180 MHz (SMPTE 259M, Component
4:2:2 16x9)
17.8 dB / 328' (100 m) @ 270 MHz (SMPTE 344M, 540 Mbps SDI)
22.9 dB / 328' (100 m) @ 440 MHz
30.2 dB / 328' (100 m) @ 750 MHz (SMPTE 292M, HD-SDI)
40 dB / 328' (100 m) @ 1.3 GHz
43.1 dB / 328' (100 m) @ 1.5 GHz (SMPTE 424M, HD 1080p)
55.1 dB / 328' (100 m) @ 2.4 GHz
62 dB / 328' (100 m) @ 3 GHz
Length 15' (4.57 m)
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.3 lb
Box Dimensions (LxWxH) 8.0 x 7.5 x 1.0"
The user manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15 can be downloaded in .pdf format if it did not come with your new camcorder cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canare users keep a unique electronic library for Canare camcorder cabless, where you can use our link to download the user manual for the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15.

The user manual lists all of the functions of the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15, all the basic and advanced features and tells you how to use the camcorder cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canare service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to CAL2.5CHDB15. User manuals are also available on the Canare website under Professional Video - Camcorder & Camera Peripherals - Camcorder Cables.
