User manual for Canare L-4CFTX Triaxial Cable L-4CFTX 200M
- Manufacturer: Canare
- Basic description and contents of package
- Product classification: Pro Audio - Installation Sound - Bulk Cable
- Safety instructions
- Startup and operation of the bulk cable
- Tips for setting up your Canare
- Settings and expert assistance
- Contact Canare service
- Warranty information
We recommend checking out our discussion threads on the Canare L-4CFTX Triaxial Cable L-4CFTX 200M,
which address similar problems with connecting and setting up Bulk Cable Canare.
User manual for the Canare L-4CFTX Triaxial Cable L-4CFTX 200M
The user manual for the Canare L-4CFTX Triaxial Cable L-4CFTX 200M provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

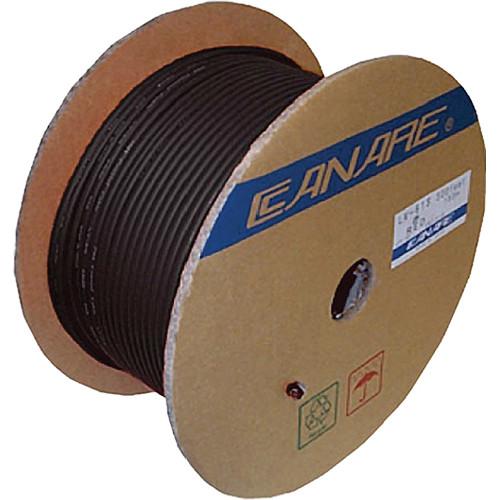

The Canare L-4CFTX Triaxial Cable (656.17' / 200 m, Black) features foam PE & polyethylene double insulation and is designed to be used with the Canare CC-K triaxial connector series. This triaxial cable is PVC jacketed, making it abrasion resistant.
If you own a Canare bulk cable and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canare L-4CFTX Triaxial Cable L-4CFTX 200M in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare L-4CFTX Triaxial Cable L-4CFTX 200M:
| Material || Jacket: PVC |
Insulation: Foam PE and Polyethylene
| Attenuation || 2.9 dB/100 m (10 MHz) |
| Conductor Resistance || Inner: 2.7 Ω/km |
| Impedance || Characteristic: 75 Ω |
| Static Capacity || 55 pF/m |
| Outer Diameter || Nominal: 0.36" (9.1 mm) |
Inner Conductor: 0.03" (0.8 mm)
Insulation 1: 0.15" (3.7 mm)
Insulation 2: 0.22" (5.5 mm)
| Inner Conductor || Composition: 13 AWG (1/1.8A quantity/mm) |
Cross Section: 0.50 mm2
| Dielectric Strength || 1,000 VAC/min |
| Conductor || Outer Conductor 1 |
Braid Coverage: ≥93%
Composition: 0.14A mm, 7 ends, 16 carriers
Outer Conductor 2
Braid Coverage: ≥95%
Composition: 0.14A mm, 7 ends, 24 carriers
| Length || 656.17' (200 m) |
| Weight || 48.50 lb (22 kg) |
