Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK
  • Manufacturer: Canare
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Bulk Cable
  • Safety instructions
  • Startup and operation of the bulk cable
  • Tips for setting up your Canare
  • Settings and expert assistance
  • Contact Canare service
  • Troubleshooting
  • Warranty information
  • Price: 175 USD

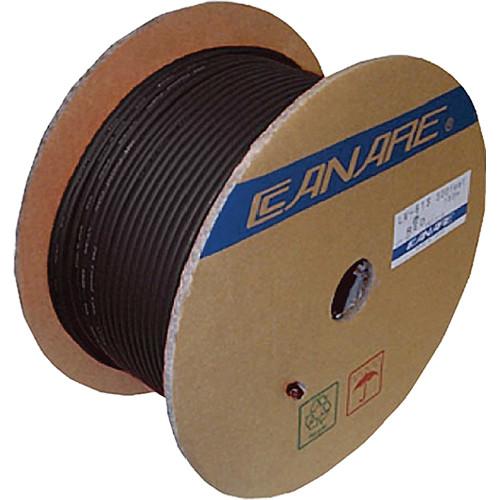

Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK
Click to enlarge image
We recommend checking out our discussion threads on the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK, which address similar problems with connecting and setting up Bulk Cable Canare.


User manual for the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK

The user manual for the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

The Canare L-4E5AT Star Quad Microphone Cable (656’/200 m, Black) is specifically designed for point to point wiring in fixed installations. The cable is a 22 AWG narrow profile and provides 100% coverage aluminum foil shielding. Featuring an easy-to-pull PVC jacket with an internal Dupont Kevlar 29 cable filler that's stronger than steel, it can resist stretching or kinking of wires when pulled through conduit bends. Foil shield & drain wire can be stripped easily for quick assembly. It features an irradiated PE conductor insulation that resists solder iron meltdown.
If you own a Canare bulk cable and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK:
Specifications
    Applications Microphones, permanent installations, audio rack wiring, and PA systems
    Outer Diameter Nominal: 0.244" (6.20 m)
    Nominal Jacket Thickness 0.047"(1.20 mm)
    Type: PVC
    Number of Conductors 4 (2 blue & white)
    Insulation Thickness IPE : 15.7 mm

    Dielectric Strength: 500 VAC/min
    Insulation Resistance: 1000 MΩ per 3' (0.91 m)
    Conductor AWG (AC): 23
    12/7.09 quantity/mm)
    Cross Sectional Area: 481 mm2
    AWG (Quad): 20

    Effective AWG of combined twin conductors
    Pitch Twist Quad 0.99" (25 mm)
    Shield Coverage 100% aluminum tape
    Conductor D.C.R. <19.4 Ω/1000' (<6.4 Ω/100 m)
    Nominal Capacitance Between Twin Blue and White Conductors: 46 pF/feet (150/m)
    Between Conductors to Shield: 64 pF/feet (210 pF/m)
    Nominal Impedance 37 Ω
    Nominal Attenuation 0.6 V/1000' (0.2 V/100 m)
    Group Delay Time 1.68 ns/1000' (5.5 ns/100 m)
    Brittle Point -22F° (-30°C)
    Length 656' (200 m)
    Weight 23 lb (10 kg)
    Packaging Info
    Package Weight 16.75 lb
    Box Dimensions (LxWxH) 11.4 x 11.2 x 7.1"
    The user manual for the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK can be downloaded in .pdf format if it did not come with your new bulk cable, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canare users keep a unique electronic library for Canare bulk cables, where you can use our link to download the user manual for the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK.

    The user manual lists all of the functions of the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK, all the basic and advanced features and tells you how to use the bulk cable. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canare service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canare L-4E5AT Star Quad Microphone Cable L-4E5AT 200M BLK. User manuals are also available on the Canare website under Pro Audio - Installation Sound - Bulk Cable.
