User manual for the Canare L-4E6S Star Quad XLRM to XLRF Microphone CAXMXF15ORN
The user manual for the Canare L-4E6S Star Quad XLRM to XLRF Microphone CAXMXF15ORN provides
necessary instructions for the proper use of the product Pro Audio - Cables & Adapters - XLR to XLR Cables.

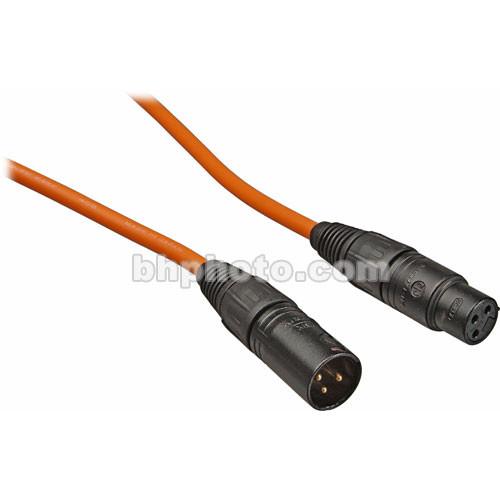

The orange, 15' L-4E6S Star Quad XLRM to XLRF Microphone Cable from Canare is especially designed for handheld microphone applications in live sound, rehearsals and other situations. In addition to mic-level signals, the cable can also be used to carry line-level signals such as for connecting your mixer to power amps.
The L-4E6S Star Quad cable features a 4-conductor design that is engineered to substantially reduce vulnerability to electromagnetic and radio frequency interference when compared with 2-conductor cables. It uses 21 AWG copper wire which features cross-linked, flexible irradiated polyethylene insulation, which is designed to maintain maximum frequency response and to be more heat resistant than ordinary polyethylene. It also utilizes braided copper shielding which is designed for greater noise rejection and durability than spiral shielding.
The cable also includes cotton filler which is in place to help to cut down handling noise. This can be beneficial in handheld microphone applications in which the cable may be subject to a substantial amount of movement.
If you own a Canare xlr to xlr cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canare L-4E6S Star Quad XLRM to XLRF Microphone CAXMXF15ORN in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare L-4E6S Star Quad XLRM to XLRF Microphone CAXMXF15ORN:
Specifications
Cable Type
XLR Microphone Cable
Shielding
>95% TAC Braid
Nominal O.D
0.236" (6 mm)
Jacket
0.044" (1.12 mm), PVC
Conductors
4
Insulation
IPE 15.7
Conductor AWG
AC - #24, 40/3.15, 310, #21
Pitch Twist Quad
0.79" (20 mm)
Conductor DCR
<29.9 ohm/1000 ft (<9.8 ohm/100 m)
Shield DCR
<9.1 ohm/1000 ft (<3.0 ohm/100 m)
Nominal Capacitance
46 pF/ft (150 pF/m),Capacitance Between Twin Blue and Twin White Conductors 57 pF/ft(185 pF/m), Capacitance Between Conductors to Shield
