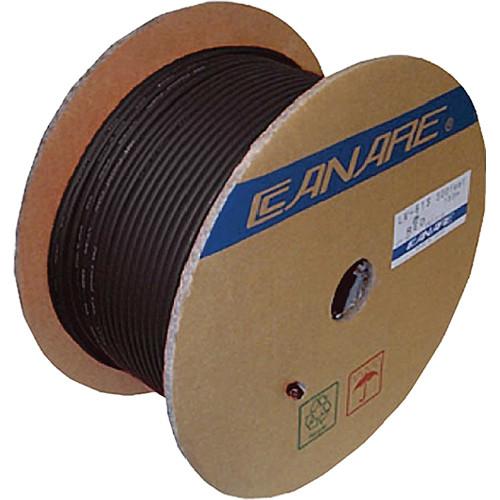

The Canare LV-61S Video Coaxial Cable (500’ / Black) is a lightweight, flexible RG59B/U equivalent cable that is perfect for almost all video facility equipment interfacing, ENG/OB work, and video patch cord assemblies. The smooth non-glare finish PVC jacket is black in color and remains flexible even in sub-zero weather.
If you own a Canare bulk cable and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canare LV-61S Video Coaxial Cable (500' / Black) LV-61S 153M BLK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canare LV-61S Video Coaxial Cable (500' / Black) LV-61S 153M BLK:
Specifications
    Length 500' (153 m)
    Impedance 75 Ω
    Outer Diameter Nominal: 0.24' (6.1 mm)
    Conductor: 0.02" (0.6 mm)
    Insulation: 0.14" (3.6 mm)
    PVC Jacket Thickness 0.04' (1 mm)
    Connector Type 24 AWG
    Cable RG59 type
    Insulation Polyethylene Dielectric

    Dielectric Strength: 1000 VAC/per minute Insulation Resistance: >1000 MΩ per 3' (0.91 m)

    Brittle Point -22°F (-30°C)
    Conductor AWG (AC): 24 (7 / 7.88 quantity / mm)
    Shield Material Coverage AC >95%
    Conductor D.C.R. At 1000': <25.9 Ω
    At 100 m: <8.5 Ω
    Shield D.C.R At 1000': <4 Ω
    At 100 m: <1.3 Ω
    Return Loss ≥ 20 dB
    Nominal Capacitance At 1 KHz: 21 pF/ft (67 pF/m)
    Velocity of Propagation 75 Ω
    Transmission Rate SD 66% @270 Mbps
    Nominal Attenuation At 10 MHz: 1.3 dB/100' (4.2 dB/100 m)
    At 50 MHz: 2.7 dB/100' (9 dB/100 m)
    At 100 MHz: 4.1 dB/100' (13.3 dB/100 m)
    At 150 MHz: 5 dB/100' (16.3 dB/100 m)
    At 200 MHz: 5.7 dB/100' (18.8 dB/100 m)
    At 400 MHz: 8.1 dB/100' (26.6 dB/100 m)
    At 700 MHz: 10.7 dB/100' (35.1 dB/100 m)
    At 900 MHz: 12.1 dB/100' (39.8 dB/100 m)
    At 1 GHz: 12.8 dB/100' (42 dB/100 m)
    Weight 19 lb (8.6 kg)
    Packaging Info
    Package Weight 18.2 lb
    Box Dimensions (LxWxH) 11.5 x 11.5 x 7.0"
    The user manual for the Canare LV-61S Video Coaxial Cable (500' / Black) LV-61S 153M BLK can be downloaded in .pdf format if it did not come with your new bulk cable, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canare users keep a unique electronic library for Canare bulk cables, where you can use our link to download the user manual for the Canare LV-61S Video Coaxial Cable (500' / Black) LV-61S 153M BLK.
